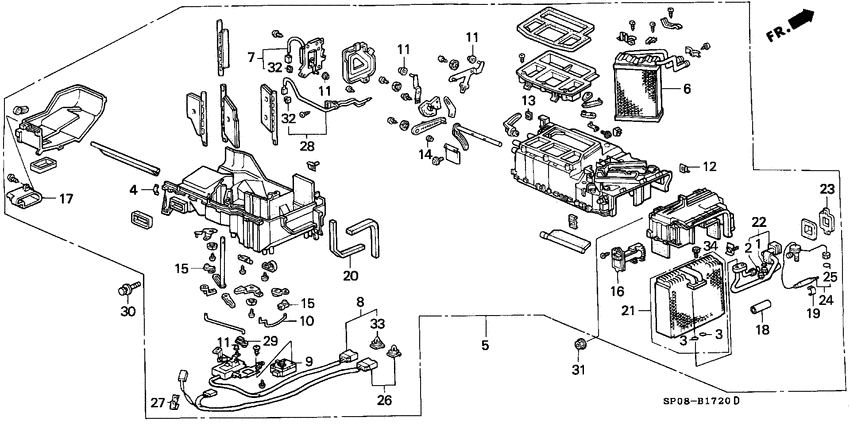

Heater unit (1) Diagram Honda LEGEND
- Year
- 1993
- Model code
- LEGEND
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
80873-SN7-003 O-ring8MM |
80873-SN7-003 |
from US $2.44 |
||
|
2
|
2
80872-SN7-003 O-ring1/2" |
80872-SN7-003 |
from US $2.44 |
||
|
3
|
3
80871-SN7-003 O-ring5/8" |
80871-SN7-003 |
from US $2.66 |
||
|
4
|
4
39246-671-003
Clamp
|
39246-671-003 |
— | ||
|
5
|
5
79100-SP0-C45
Heater unit
0C201086 - |
79100-SP0-C45 |
— | ||
|
5
|
5
79100-SP0-C44 Heater unitDENSO 00000000 - 0C201085 |
79100-SP0-C44 |
US $1,722.88 |
||
|
6
|
6
79110-SP0-A01
Core comp
|
79110-SP0-A01 |
— | ||
|
7
|
7
79150-SP0-C41 Motor assy.MODE |
79150-SP0-C41 |
US $135.68 |
||
|
8
|
8
79160-SP0-A02
Motor assy.
|
79160-SP0-A02 |
— | ||
|
9
|
9
79170-SP0-A42
Motor assy.
00000000 - 0C201085 |
79170-SP0-A42 |
— | ||
|
10
|
10
79182-SP0-A01
Shaft a
|
79182-SP0-A01 |
— | ||
|
11
|
11
79192-SD4-003 Bush6.7MM |
79192-SD4-003 |
US $2.45 |
||
|
12
|
12
79192-SP0-003
Holder a
|
79192-SP0-003 |
— | ||
|
13
|
13
79193-SP0-003
Holder b
|
79193-SP0-003 |
— | ||
|
14
|
14
79194-SP0-003
Bush
|
79194-SP0-003 |
— | ||
|
15
|
15
79195-SF1-003 HolderROD |
79195-SF1-003 |
US $1.82 |
||
|
16
|
16
79330-SP0-003
Transistor
|
79330-SP0-003 |
— | ||
|
17
|
17
79831-SP0-A02
Outlet
|
79831-SP0-A02 |
— | ||
|
18
|
18
80205-SP0-003
Insulator
|
80205-SP0-003 |
— | ||
|
19
|
19
80206-SM4-003 Holder |
80206-SM4-003 |
US $5.88 |
||
|
20
|
20
80209-SP0-003
Packing d
|
80209-SP0-003 |
— | ||
|
21
|
21
80210-SP0-A02
Evaporator sub assy.
|
80210-SP0-A02 |
— | ||
|
22
|
22
80216-SP0-A03
Pipe
|
80216-SP0-A03 |
— | ||
|
23
|
23
80218-SP0-003
Packing b
|
80218-SP0-003 |
— | ||
|
24
|
24
80220-SP0-J11
Valve
|
80220-SP0-J11 |
— | ||
|
26
|
26
80550-SP0-942
Sensor
00000000 - 0C201085 |
80550-SP0-942 |
— | ||
|
26
|
26
80550-SP0-A01
Sensor
0C201086 - |
80550-SP0-A01 |
— | ||
|
27
|
27
80556-SF1-941
Clip
|
80556-SF1-941 |
— | ||
|
28
|
28
80560-SP0-A02
Sensor
|
80560-SP0-A02 |
— | ||
|
29
|
29
79195-SF1-003 HolderROD 0C201086 - |
79195-SF1-003 |
US $1.82 |
||
|
29
|
29
80789-SH3-003 HolderROD 00000000 - 0C201085 |
80789-SH3-003 |
US $2.38 |
||
|
30
|
30
90137-SD4-000
Bolt-washer
|
90137-SD4-000 |
— | ||
|
31
|
31
90222-SB4-000 Nut-washer6MM |
90222-SB4-000 |
from US $1.05 |
||
|
32
|
32
91554-SM4-003 HolderBRACKET (RED) |
91554-SM4-003 |
from US $2.52 |
||
|
33
|
33
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
|
34
|
34
96600-060-200-8 BoltSOCKET, 6X20 |
96600-060-200-8 |
from US $0.59 |
