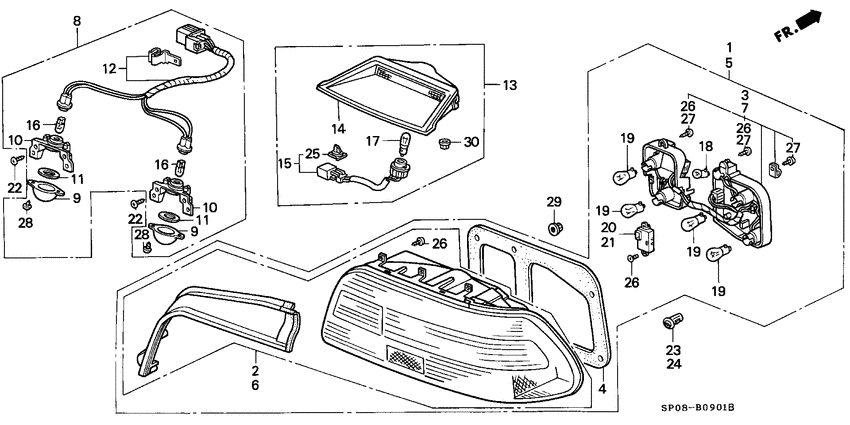

Taillight (2) Diagram Honda LEGEND
- Year
- 1992
- Model code
- LEGEND
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KQ
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33500-SP0-Q01
Taillight assy.
|
33500-SP0-Q01 |
— | ||
|
2
|
2
33501-SP0-Q01
Lamp unit
|
33501-SP0-Q01 |
— | ||
|
3
|
3
33502-SP0-Q11
Cover comp.
|
33502-SP0-Q11 |
— | ||
|
4
|
4
33503-SP0-A01
Gasket
|
33503-SP0-A01 |
— | ||
|
5
|
5
33550-SP0-Q01
Taillight assy.
|
33550-SP0-Q01 |
— | ||
|
6
|
6
33551-SP0-Q01
Lamp unit
|
33551-SP0-Q01 |
— | ||
|
7
|
7
33552-SP0-Q11
Cover comp.
|
33552-SP0-Q11 |
— | ||
|
8
|
8
34100-SP0-G02
Light assy
|
34100-SP0-G02 |
— | ||
|
9
|
9
34101-SH3-A01 Lens |
34101-SH3-A01 |
US $9.92 |
||
|
10
|
10
34102-SH3-A01 Housing |
34102-SH3-A01 |
US $12.73 |
||
|
11
|
11
34103-SH3-A01 Packing |
34103-SH3-A01 |
US $3.40 |
||
|
12
|
12
34104-SP0-A01
Cord comp
|
34104-SP0-A01 |
— | ||
|
13
|
13
34270-SP0-A01 Light assyHIGH MOUNT STOP |
34270-SP0-A01 |
US $166.40 |
||
|
14
|
14
34271-SP0-A01
Lamp unit
|
34271-SP0-A01 |
— | ||
|
15
|
15
34274-SP0-A01
Socket comp.
|
34274-SP0-A01 |
— | ||
|
16
|
16
34901-SE3-003 Bulb12V 8W |
34901-SE3-003 |
US $2.10 |
||
|
17
|
17
34903-SF1-A01 Bulb12V 45CP |
34903-SF1-A01 |
from US $4.66 |
||
|
18
|
18
34907-634-611
Bulb
|
34907-634-611 |
— | ||
| replacement | |||||
|
18
|
18
34907-415-751 Bulb (12v10w) |
34907-415-751 |
US $2.29 |
||
|
19
|
19
34908-634-611 Bulb12V 21W) (ECE) (STANLEY |
34908-634-611 |
from US $2.66 |
||
|
20
|
20
37540-SM4-E01
Sensor
|
37540-SM4-E01 |
— | ||
|
21
|
21
37540-SM4-901 SensorSTOP LAMP FAILURE |
37540-SM4-901 |
US $69.41 |
||
|
22
|
22
90146-SL3-003
Screw
|
90146-SL3-003 |
— | ||
|
23
|
23
90650-SP0-003
Grommet
|
90650-SP0-003 |
— | ||
|
24
|
24
90655-SP0-003
Grommet
|
90655-SP0-003 |
— | ||
|
25
|
25
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
|
26
|
26
93901-24220 ScrewTAPPING, 4X10 |
93901-24220 |
from US $0.37 |
||
|
28
|
28
93901-34320 ScrewTAPPING, 4X12 |
93901-34320 |
from US $0.37 |
||
|
29
|
29
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
|
30
|
30
94071-05080 Nut-washer5MM |
94071-05080 |
from US $0.47 |
||
