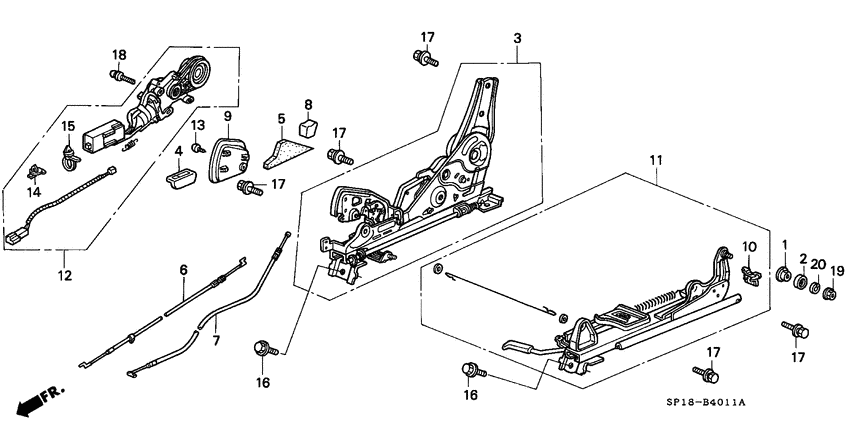

Front seat components (2) Diagram Honda LEGEND
- Year
- 1991
- Model code
- LEGEND COUPE
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 2
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77208-SA5-003 BushNYLON (TS TECH) |
77208-SA5-003 |
US $2.80 |
||
|
2
|
2
77209-SB0-003
Washer
|
77209-SB0-003 |
— | ||
|
3
|
3
81150-SP1-A02
Slide comp.
|
81150-SP1-A02 |
— | ||
|
4
|
4
81231-SP0-A01ZE KnobR. RECLINING *NH178L* |
81231-SP0-A01ZE |
US $8.26 |
||
|
4
|
4
81231-SP0-A01ZD
Knob
|
81231-SP0-A01ZD |
— | ||
|
4
|
4
81231-SP0-A01ZC KnobR. RECLINING *YR147L* |
81231-SP0-A01ZC |
US $8.26 |
||
|
5
|
5
81233-SP0-A00
Cushion
|
81233-SP0-A00 |
— | ||
|
6
|
6
81233-SP1-A01 Cable comp. a |
81233-SP1-A01 |
US $18.94 |
||
|
7
|
7
81235-SP1-A01
Cable comp. b
|
81235-SP1-A01 |
— | ||
|
8
|
8
81236-SP1-A01ZD
Knob
|
81236-SP1-A01ZD |
— | ||
|
8
|
8
81236-SP1-A01ZC
Knob
|
81236-SP1-A01ZC |
— | ||
|
8
|
8
81236-SP1-A01ZE
Knob
|
81236-SP1-A01ZE |
— | ||
|
9
|
9
81237-SP0-A01ZC
Garnish
|
81237-SP0-A01ZC |
— | ||
|
9
|
9
81237-SP0-A01ZE
Garnish
|
81237-SP0-A01ZE |
— | ||
|
9
|
9
81237-SP0-A01ZD
Garnish
|
81237-SP0-A01ZD |
— | ||
|
10
|
10
81261-SP0-A02 CapRAIL END |
81261-SP0-A02 |
US $3.15 |
||
|
11
|
11
81270-SP1-A02
Adjuster
|
81270-SP1-A02 |
— | ||
|
12
|
12
81401-SP1-A01
Reacher assy.
|
81401-SP1-A01 |
— | ||
|
13
|
13
90134-SE3-003 ScrewTAPPING, 5X10 |
90134-SE3-003 |
from US $1.48 |
||
|
14
|
14
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.22 |
||
|
15
|
15
91567-SE0-003 BandWIRE HARNESS(WHITE) (93.5MM) |
91567-SE0-003 |
from US $3.08 |
||
|
16
|
16
93405-100-200-8 Bolt-washer10X20 |
93405-100-200-8 |
US $0.81 |
||
|
17
|
17
93492-100-250-8 Bolt-washer10X25 |
93492-100-250-8 |
US $0.81 |
||
| replacement | |||||
|
17
|
17
93402-100-250-8 Bolt-washer10X25 |
93402-100-250-8 |
from US $0.81 |
||
|
18
|
18
93893-050-250-8 Screw-washer5X25 |
93893-050-250-8 |
US $0.59 |
||
|
19
|
19
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
20
|
20
94101-08700 WasherPLAIN, 8MM |
94101-08700 |
from US $0.37 |
||
