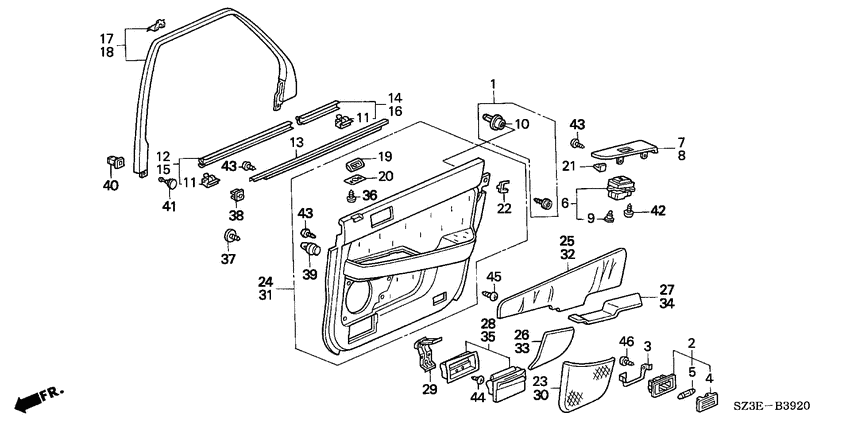

Rear door lining Diagram Honda LEGEND
- Year
- 2004
- Model code
- LEGEND
- Sales region
- General
- Engine
- C35A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04728-SZ3-000 Stopper setDOOR |
04728-SZ3-000 |
US $9.61 |
||
|
2
|
2
34255-SM4-G01ZA Light assyCOURTESY (DAIICHI) *NH167L* |
34255-SM4-G01ZA |
US $27.26 |
||
|
3
|
3
34257-SM4-000 PlateCOURTESY LIGHT |
34257-SM4-000 |
US $4.90 |
||
|
4
|
4
34261-SM4-G01 LensDAIICHI |
34261-SM4-G01 |
US $7.70 |
||
|
5
|
5
34295-SA5-003 Bulb12V 3.4W) (DAIICHI |
34295-SA5-003 |
from US $1.85 |
||
|
6
|
6
35760-SZ3-023 Sub switch assy.POWER WINDOW |
35760-SZ3-023 |
US $87.52 |
||
|
7
|
7
35771-SZ3-A51ZB PanelR. RR. POWER WINDOW (BIRDS EYE MAPLE) *YR274L* |
35771-SZ3-A51ZB |
US $82.56 |
||
|
8
|
8
35772-SZ3-A51ZB PanelL. RR. POWER WINDOW (BIRDS EYE MAPLE) *YR274L* |
35772-SZ3-A51ZB |
US $82.56 |
||
|
9
|
9
35861-S0A-T01 BulbNEO WEDGE (14V 65MA) |
35861-S0A-T01 |
US $2.80 |
||
|
10
|
10
72144-SZ3-013 GrommetDOOR STOPPER |
72144-SZ3-013 |
US $3.01 |
||
|
11
|
11
72339-SZ3-003
Clip
|
72339-SZ3-003 |
— | ||
|
12
|
12
72835-SZ3-023
Weatherstrip
|
72835-SZ3-023 |
— | ||
|
13
|
13
72836-SZ3-003
Molding
|
72836-SZ3-003 |
— | ||
|
14
|
14
72837-SZ3-003
Weatherstrip
|
72837-SZ3-003 |
— | ||
|
15
|
15
72875-SZ3-023
Weatherstrip
|
72875-SZ3-023 |
— | ||
|
16
|
16
72877-SZ3-003
Weatherstrip
|
72877-SZ3-003 |
— | ||
|
17
|
17
72942-SZ3-003ZA
Garnish
|
72942-SZ3-003ZA |
— | ||
|
18
|
18
72982-SZ3-003ZA
Garnish
|
72982-SZ3-003ZA |
— | ||
|
19
|
19
83508-SP0-000ZA CoverDOOR LOCK KNOB *NH167L* |
83508-SP0-000ZA |
US $4.62 |
||
|
20
|
20
83534-SZ3-000
Bracket
|
83534-SZ3-000 |
— | ||
|
21
|
21
83536-SZ3-000
Clip
|
83536-SZ3-000 |
— | ||
|
22
|
22
83537-SZ3-000ZA
Garnish
|
83537-SZ3-000ZA |
— | ||
|
23
|
23
83703-SZ3-A00ZA
Cover
|
83703-SZ3-A00ZA |
— | ||
|
24
|
24
83720-SZ3-J30ZE Lining sub assy.R. RR. DOOR *TYPEA* (BLACK) |
83720-SZ3-J30ZE |
US $499.20 |
||
|
25
|
25
83721-SZ3-J10ZA
Pad
|
83721-SZ3-J10ZA |
— | ||
|
26
|
26
83722-SZ3-J10ZA
Pad
|
83722-SZ3-J10ZA |
— | ||
|
27
|
27
83723-SZ3-J10ZA
Pad
|
83723-SZ3-J10ZA |
— | ||
|
28
|
28
83738-SZ3-000ZC
Ashtray assy.
|
83738-SZ3-000ZC |
— | ||
|
29
|
29
83739-SZ3-000
Bracket assy
|
83739-SZ3-000 |
— | ||
|
30
|
30
83753-SZ3-A00ZA
Cover
|
83753-SZ3-A00ZA |
— | ||
|
31
|
31
83770-SZ3-J30ZE Lining sub assy.L. RR. DOOR *TYPEA* (BLACK) |
83770-SZ3-J30ZE |
US $499.20 |
||
|
32
|
32
83771-SZ3-J10ZA
Pad
|
83771-SZ3-J10ZA |
— | ||
|
33
|
33
83772-SZ3-J10ZA
Pad
|
83772-SZ3-J10ZA |
— | ||
|
34
|
34
83773-SZ3-J10ZA
Pad
|
83773-SZ3-J10ZA |
— | ||
|
35
|
35
83788-SZ3-000ZC
Ashtray assy.
|
83788-SZ3-000ZC |
— | ||
|
36
|
36
90101-SP1-003 ScrewTAPPING, 3X8(PO) |
90101-SP1-003 |
from US $1.33 |
||
|
37
|
37
90132-SS0-000 ScrewTAPPING, 4X10 (PO) |
90132-SS0-000 |
from US $1.12 |
||
|
38
|
38
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
39
|
39
91560-SZ3-003 Clip, DOOR LINING (NATURAL) |
91560-SZ3-003 |
US $2.28 |
||
|
40
|
40
91651-SZ3-003 Clip ASASH INNER GARNISH |
91651-SZ3-003 |
US $2.10 |
||
|
41
|
41
91652-SZ3-003
Clip b
|
91652-SZ3-003 |
— | ||
|
42
|
42
93901-22220 ScrewTAPPING, 3X10 |
93901-22220 |
from US $0.37 |
||
|
43
|
43
93903-24220 ScrewTAPPING, 4X10 |
93903-24220 |
from US $0.37 |
||
|
44
|
44
93903-24280 ScrewTAPPING, 4X10 |
93903-24280 |
from US $0.37 |
||
|
45
|
45
93903-25280 ScrewTAPPING, 5X12 |
93903-25280 |
from US $0.37 |
||
|
46
|
46
93913-14120 ScrewTAPPING, 4X10 |
93913-14120 |
from US $0.37 |
