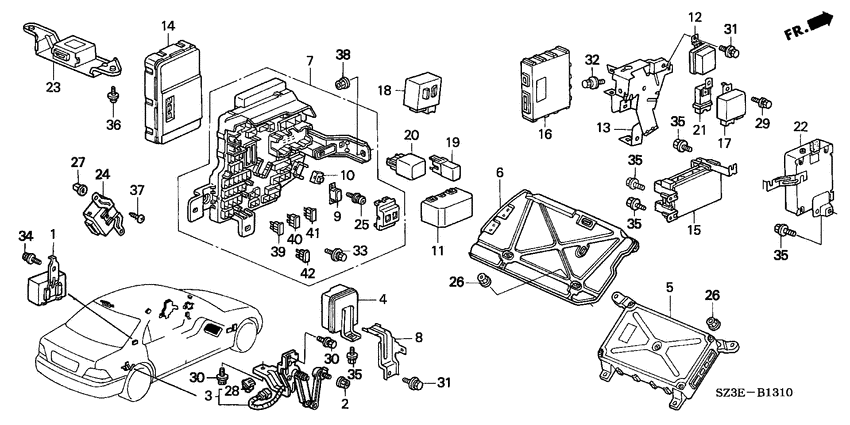

Control unit (CABIN; LH) Diagram Honda LEGEND
- Year
- 2004
- Model code
- LEGEND
- Sales region
- General
- Engine
- C35A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33137-SZ3-G02
Control unit
|
33137-SZ3-G02 |
— | ||
|
2
|
2
33143-S1A-G01 NutSPECIAL, 6MM |
33143-S1A-G01 |
US $1.61 |
||
|
3
|
3
33146-SZ3-G02 Sensor assyHEADLIGHT ADJUSTER RR. |
33146-SZ3-G02 |
US $248.32 |
||
|
4
|
4
36700-SZ3-A03
Controller
|
36700-SZ3-A03 |
— | ||
|
5
|
5
37820-P5A-G07
Control module
|
37820-P5A-G07 |
— | ||
|
6
|
6
37821-P5A-305
Cover comp.
|
37821-P5A-305 |
— | ||
|
7
|
7
38200-SZ3-G02
Box assy
|
38200-SZ3-G02 |
— | ||
|
8
|
8
38201-SZ3-A10
Bracket
|
38201-SZ3-A10 |
— | ||
|
9
|
9
38211-SM4-003 FuseBLOCK (30A) |
38211-SM4-003 |
US $6.30 |
||
|
10
|
10
38212-SP0-A81
Cover
|
38212-SP0-A81 |
— | ||
|
11
|
11
38300-SP0-004
Relay assy
|
38300-SP0-004 |
— | ||
|
11
|
11
38300-SZ3-003 Relay assyTURN SIGNAL & HAZARD (MITSUBA) |
38300-SZ3-003 |
US $81.92 |
||
|
12
|
12
38310-S04-S01
Relay
|
38310-S04-S01 |
— | ||
|
13
|
13
38611-SZ3-G01
Bracket
|
38611-SZ3-G01 |
— | ||
|
14
|
14
38800-SZ3-S05
System unit
|
38800-SZ3-S05 |
— | ||
|
14
|
14
38800-SZ3-G13
System unit
|
38800-SZ3-G13 |
— | ||
|
15
|
15
38850-SZ3-G04
System unit
|
38850-SZ3-G04 |
— | ||
|
16
|
16
38900-SZ3-A11
Ets unit
|
38900-SZ3-A11 |
— | ||
|
17
|
17
39400-SZ3-G01
Relay assy
|
39400-SZ3-G01 |
— | ||
|
18
|
18
39400-SZ5-A01 Relay assyMAIN |
39400-SZ5-A01 |
US $106.08 |
||
|
19
|
19
39794-SE0-003 Relay assyPOWER(4P)(DENSO) (056700-7250) |
39794-SE0-003 |
US $18.43 |
||
|
20
|
20
39794-SG0-003 Relay assyPOWER (4P) (DENSO) (056700-8250) |
39794-SG0-003 |
from US $34.05 |
||
|
21
|
21
39797-SE0-004 Relay assyPOWER (4P) (MITSUBA) (RC-2201) |
39797-SE0-004 |
from US $64.78 |
||
|
22
|
22
39910-SZ3-A03
Converter unit
|
39910-SZ3-A03 |
— | ||
|
23
|
23
70451-SZ3-J11
Control unit
|
70451-SZ3-J11 |
— | ||
|
24
|
24
72216-SZ3-013 Control unitPOWER WINDOW |
72216-SZ3-013 |
US $143.36 |
||
|
25
|
25
90153-SA5-900 Screw-washer5X9 |
90153-SA5-900 |
US $2.80 |
||
|
26
|
26
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
27
|
27
90665-SM4-000 GrommetSCREW, 4MM (YELLOW) |
90665-SM4-000 |
US $1.26 |
||
|
28
|
28
91565-S0X-003 ClipCOUPLER (DARK GREEN) |
91565-S0X-003 |
from US $2.74 |
||
|
29
|
29
93401-060-120-8 Bolt-washer6X12 |
93401-060-120-8 |
from US $0.52 |
||
|
30
|
30
93402-060-160-8 Bolt-washer6X16 |
93402-060-160-8 |
from US $0.52 |
||
|
31
|
31
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.47 |
||
|
32
|
32
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
33
|
33
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
US $0.52 |
||
| replacement | |||||
|
33
|
33
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
34
|
34
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
||
|
35
|
35
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
36
|
36
93903-24220 ScrewTAPPING, 4X10 |
93903-24220 |
from US $0.37 |
||
|
37
|
37
93903-45220 ScrewTAPPING, 5X12 |
93903-45220 |
US $0.37 |
||
|
38
|
38
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
39
|
39
98200-30750 FuseBLADE(7.5A) |
98200-30750 |
from US $0.55 |
||
|
40
|
40
98200-31000 FuseBLADE (10A) |
98200-31000 |
from US $0.52 |
||
|
41
|
41
98200-32000 FuseBLADE (20A) |
98200-32000 |
from US $0.52 |
||
|
42
|
42
98200-33000 FuseBLADE(30A) |
98200-33000 |
from US $0.74 |
||
