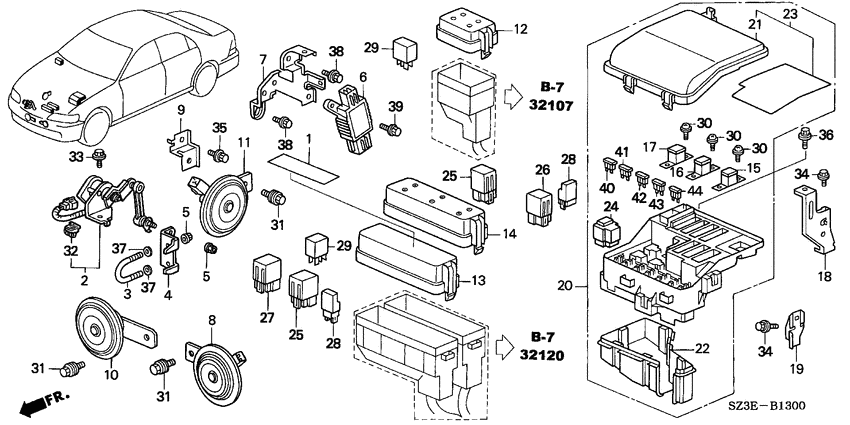

Control unit (ENGINE ROOM; LH) Diagram Honda LEGEND
- Year
- 2004
- Model code
- LEGEND
- Sales region
- General
- Engine
- C35A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31511-SB2-671 MarkBATTERY CAUTION (MAINTENANCE FREE) |
31511-SB2-671 |
US $4 |
||
|
2
|
2
33136-SZ3-G02 Sensor assyHEADLIGHT ADJUSTER FR. |
33136-SZ3-G02 |
US $238.08 |
||
|
3
|
3
33138-SZ3-G00
U-bolt
|
33138-SZ3-G00 |
— | ||
|
4
|
4
33139-SZ3-G00
Bracket
|
33139-SZ3-G00 |
— | ||
|
5
|
5
33143-S1A-G01 NutSPECIAL, 6MM |
33143-S1A-G01 |
US $1.61 |
||
|
6
|
6
37950-P5A-A02 Detection unitMISFIRE |
37950-P5A-A02 |
US $408.32 |
||
|
7
|
7
37955-P5A-A00
Stay comp
|
37955-P5A-A00 |
— | ||
|
8
|
8
38100-SM4-A02 Horn assyLOW |
38100-SM4-A02 |
US $66.42 |
||
|
9
|
9
38101-SZ5-A00
Bracket
|
38101-SZ5-A00 |
— | ||
|
10
|
10
38150-SM4-A12 Horn assyHIGH |
38150-SM4-A12 |
US $53.89 |
||
|
11
|
11
38150-SM4-A12 Horn assyHIGH |
38150-SM4-A12 |
US $53.89 |
||
|
12
|
12
38182-SZ3-003 CoverMULTI RELAY |
38182-SZ3-003 |
US $5.04 |
||
|
13
|
13
38192-SP0-A01 CoverMULTI RELAY |
38192-SP0-A01 |
US $10.78 |
||
|
14
|
14
38192-SZ3-003 CoverMULTI RELAY |
38192-SZ3-003 |
US $10.78 |
||
|
15
|
15
38212-SM4-003 FuseBLOCK (40A) |
38212-SM4-003 |
US $5.18 |
||
|
16
|
16
38213-SM4-003 FuseBLOCK (50A) |
38213-SM4-003 |
from US $6.36 |
||
|
17
|
17
38213-SP0-003 FuseBLOCK (120A) |
38213-SP0-003 |
from US $7.28 |
||
|
18
|
18
38232-SP0-010
Bracket a
|
38232-SP0-010 |
— | ||
|
19
|
19
38233-SP0-000
Bracket b
|
38233-SP0-000 |
— | ||
|
20
|
20
38250-SZ3-F04
Box assy
|
38250-SZ3-F04 |
— | ||
|
20
|
20
38250-SZ3-A11
Box assy
|
38250-SZ3-A11 |
— | ||
|
21
|
21
38251-SP0-003 CoverUPPER |
38251-SP0-003 |
US $14.72 |
||
|
22
|
22
38252-SP0-003
Cover
|
38252-SP0-003 |
— | ||
|
23
|
23
38254-SZ3-F01
Cover
|
38254-SZ3-F01 |
— | ||
|
23
|
23
38254-SZ3-A11
Cover
|
38254-SZ3-A11 |
— | ||
|
24
|
24
38254-SZ3-003
Busbar
|
38254-SZ3-003 |
— | ||
|
25
|
25
39762-SG0-003 Relay assyPOWER (5P) (DENSO) (056700-8160) |
39762-SG0-003 |
US $37.76 |
||
|
26
|
26
39762-S73-A01 Relay assyLIGHT (DENSO) (4P NO.305) |
39762-S73-A01 |
US $32.77 |
||
|
27
|
27
39792-SE0-004 Relay assyPOWER (4P) (OMRON) (G4R-1A21T-H22) |
39792-SE0-004 |
US $36.61 |
||
|
27
|
27
39792-SE0-003 Relay assyPOWER(4P)(DENSO) (056700-7410) |
39792-SE0-003 |
US $29.44 |
||
|
28
|
28
39794-SL0-004 Relay assyPOWER(4P) (MITSUBA)(RC-2225)(BLACK) |
39794-SL0-004 |
US $16.51 |
||
|
28
|
28
39794-SE0-003 Relay assyPOWER(4P)(DENSO) (056700-7250) |
39794-SE0-003 |
US $18.43 |
||
|
29
|
29
39794-S04-003 Relay assyPOWER (4P) (MICRO ISO) (MITSUBA) |
39794-S04-003 |
US $15.23 |
||
|
29
|
29
39794-S04-014 Relay assyPOWER (4P) (MICRO ISO) (MATSUSHITA) |
39794-S04-014 |
US $23.49 |
||
|
30
|
30
90129-SP0-000 Screw-washer5X12 |
90129-SP0-000 |
US $1.26 |
||
|
31
|
31
90138-SM4-003 Bolt-washer8X14 |
90138-SM4-003 |
US $1.75 |
||
|
32
|
32
91565-S0X-003 ClipCOUPLER (DARK GREEN) |
91565-S0X-003 |
from US $2.74 |
||
|
33
|
33
93402-060-160-8 Bolt-washer6X16 |
93402-060-160-8 |
from US $0.52 |
||
|
34
|
34
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.47 |
||
|
35
|
35
93404-060-160-8 Bolt-washer6X16 |
93404-060-160-8 |
from US $0.52 |
||
|
36
|
36
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
37
|
37
94103-06400 WasherPLAIN, 6MM |
94103-06400 |
from US $0.37 |
||
|
38
|
38
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
39
|
39
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.52 |
||
|
40
|
40
98200-30750 FuseBLADE(7.5A) |
98200-30750 |
from US $0.55 |
||
|
41
|
41
98200-31000 FuseBLADE (10A) |
98200-31000 |
from US $0.52 |
||
|
42
|
42
98200-31500 FuseBLADE (15A) |
98200-31500 |
from US $0.52 |
||
|
43
|
43
98200-32000 FuseBLADE (20A) |
98200-32000 |
from US $0.52 |
||
|
44
|
44
98200-33000 FuseBLADE(30A) |
98200-33000 |
from US $0.74 |
