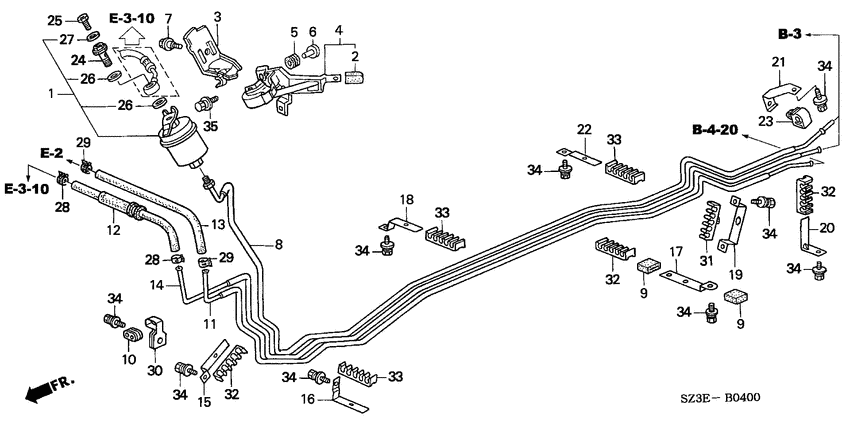

Fuel pipe (LH) Diagram Honda LEGEND
- Year
- 2004
- Model code
- LEGEND
- Sales region
- General
- Engine
- C35A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-ST5-933 Strainer setFUEL (TOYO ROKI) |
16010-ST5-933 |
US $53.30 |
||
| replacement | |||||
|
1
|
1
16010-ST5-E02 SETFUEL STRN COM |
16010-ST5-E02 |
from US $41.17 |
||
|
2
|
2
16713-SZ3-000 CushionFUEL STRAINER |
16713-SZ3-000 |
US $2.94 |
||
|
3
|
3
16902-SZ3-A31
Cover
|
16902-SZ3-A31 |
— | ||
|
4
|
4
16918-SZ3-A31
Stay
|
16918-SZ3-A31 |
— | ||
|
5
|
5
16922-SH3-930 RubberMOUNTING |
16922-SH3-930 |
US $1.95 |
||
|
6
|
6
16923-SP0-930 CollarDISTANCE |
16923-SP0-930 |
US $4.47 |
||
|
7
|
7
17656-SR3-003
Bolt
|
17656-SR3-003 |
— | ||
|
8
|
8
17700-SZ3-A50
Pipe comp
|
17700-SZ3-A50 |
— | ||
|
9
|
9
17701-SZ3-930
Mount
|
17701-SZ3-930 |
— | ||
|
10
|
10
17701-S7A-000 RubberFUEL PIPE INSULATOR |
17701-S7A-000 |
US $4.13 |
||
|
11
|
11
17720-SZ3-A51
Pipe comp
|
17720-SZ3-A51 |
— | ||
|
12
|
12
17723-SX8-T30
Hose
|
17723-SX8-T30 |
— | ||
|
13
|
13
17723-SZ3-A50
Hose
|
17723-SZ3-A50 |
— | ||
|
14
|
14
17740-SZ3-A50
Pipe comp
|
17740-SZ3-A50 |
— | ||
|
15
|
15
17761-SP0-931
Stay a
|
17761-SP0-931 |
— | ||
|
16
|
16
17762-SP0-932
Stay b
|
17762-SP0-932 |
— | ||
|
17
|
17
17763-SZ3-930
Stay c
|
17763-SZ3-930 |
— | ||
|
18
|
18
17764-SP0-930
Stay d
|
17764-SP0-930 |
— | ||
|
19
|
19
17765-SP0-930
Stay e
|
17765-SP0-930 |
— | ||
|
20
|
20
17766-SP0-931
Stay f
|
17766-SP0-931 |
— | ||
|
21
|
21
17768-SZ3-950
Stay
|
17768-SZ3-950 |
— | ||
|
22
|
22
17769-SP0-930
Stay j
|
17769-SP0-930 |
— | ||
|
23
|
23
53729-SK7-A51
Clip
|
53729-SK7-A51 |
— | ||
|
24
|
24
90008-PD6-010
Bolt
|
90008-PD6-010 |
— | ||
| replacement | |||||
|
24
|
24
90008-PP4-E02 BoltBANJO, 12MM |
90008-PP4-E02 |
from US $6.51 |
||
|
25
|
25
90009-PE2-010
Bolt
|
90009-PE2-010 |
— | ||
| replacement | |||||
|
25
|
25
90009-RMX-010 Bolt,sealing 6mm |
90009-RMX-010 |
from US $2.73 |
||
|
26
|
26
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.59 |
||
|
27
|
27
90430-PD6-003 WasherSEALING, 6MM |
90430-PD6-003 |
from US $1.48 |
||
|
28
|
28
91405-SDA-000 ClampTUBE(D10.5) |
91405-SDA-000 |
from US $1.19 |
||
|
29
|
29
91409-SZ3-003 ClampFUEL TUBE (D10.5) |
91409-SZ3-003 |
US $1.61 |
||
|
30
|
30
91591-SZ3-A50
Bracket
|
91591-SZ3-A50 |
— | ||
|
31
|
31
91596-SZ3-A31
Clamp c
|
91596-SZ3-A31 |
— | ||
|
32
|
32
91598-SZ3-A31
Clamp b
|
91598-SZ3-A31 |
— | ||
|
33
|
33
91599-SZ3-A31
Clamp a
|
91599-SZ3-A31 |
— | ||
|
34
|
34
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.65 |
||
|
35
|
35
93405-060-250-8 Bolt-washer6X25 |
93405-060-250-8 |
US $0.74 |
||
