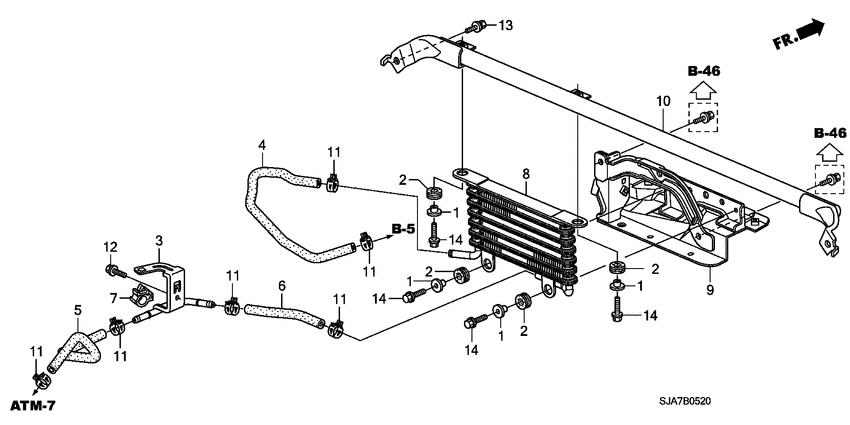

Atf cooler (-'08) Diagram Honda LEGEND
- Year
- 2007
- Model code
- LEGEND
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17259-PG6-000 CollarMOUNTING |
17259-PG6-000 |
US $1.89 |
||
|
2
|
2
17260-PE0-670 RubberMOUNTING |
17260-PE0-670 |
US $1.47 |
||
|
3
|
3
25210-RJA-E00 Pipe comp. dATF |
25210-RJA-E00 |
US $23.30 |
||
|
4
|
4
25211-RJA-E01 HoseATF |
25211-RJA-E01 |
US $38.53 |
||
|
5
|
5
25214-RJA-004 HoseATF |
25214-RJA-004 |
US $18.82 |
||
|
6
|
6
25215-RJA-007 HoseATF, 185MM |
25215-RJA-007 |
US $6.30 |
||
|
7
|
7
25216-P72-003 ClipATF HOSE (BLACK) |
25216-P72-003 |
US $1.96 |
||
|
8
|
8
25510-RJA-003 Cooler compATF |
25510-RJA-003 |
US $536.32 |
||
|
9
|
9
71146-SJA-E00
Support comp
|
71146-SJA-E00 |
— | ||
|
10
|
10
71185-SJA-E00 PipeFR. BULKHEAD PERFORMANCE |
71185-SJA-E00 |
US $59.90 |
||
|
11
|
11
90635-PT0-802
Clip, Oil Pipe
|
90635-PT0-802 |
— | ||
| replacement | |||||
|
11
|
11
90635-RV0-003 CLIP, OIL PIPE |
90635-RV0-003 |
from US $3.32 |
||
|
12
|
12
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
13
|
13
93404-060-160-4 Bolt-washer6X16 |
93404-060-160-4 |
US $0.52 |
||
|
14
|
14
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.34 |
||
