	Description	OEM Part #	Price
1	1 31500-SJA-X02 Battery	31500-SJA-X02	—
2	2 31512-SS0-000 Plate BATTERY SETTING (70D/80D)	31512-SS0-000	US $17.82
3	3 31513-SA5-670 Bolt BATTERY SETTING, 225MM	31513-SA5-670	from US $3.33
4	4 31513-SD2-000 Cap BATTERY SETTING BOLT (BLACK)	31513-SD2-000	US $2.10
5	5 31513-SJA-900 Bolt BATTERY SETTING	31513-SJA-900	US $5.88
6	6 31521-SJA-A01 Box BATTERY(80D)	31521-SJA-A01	US $19.20
7	7 31522-SJA-A01 Arm BATTERY BOX HOLDING	31522-SJA-A01	US $4.20
8	8 31531-SJA-A00 Cover BATTERY(80D)	31531-SJA-A00	US $24.19
9	9 31542-SA5-666 Plug VENT (MF) (FURUKAWA)	31542-SA5-666	from US $2.59
10	10 31551-SJA-A01ZA BATTERY TBLACK GARNISH	31551-SJA-A01ZA	US $30.27
11	11 32116-P64-003 Holder CORRUGATED (DARK GREEN) (13MM)	32116-P64-003	US $2.38
12	12 32410-SJA-A02 Cable assy STARTER	32410-SJA-A02	US $177.92
13	13 32411-SJA-A00 Bracket STARTER CABLE	32411-SJA-A00	US $4.62
14	14 32601-SK7-900 Bolt BATTERY TERMINAL	32601-SK7-900	from US $2.81
15	15 32602-SK7-900 Nut BATTERY TERMINAL	32602-SK7-900	from US $2
16	16 38221-SJA-A01 Cover UPPER	38221-SJA-A01	US $11.20
17	17 38221-SJA-003 Nut 5MM	38221-SJA-003	US $2.03
18	18 38225-SJA-003 Block FUSE(50A)	38225-SJA-003	US $3.78
20	20 83113-S6A-003ZL LID TBLACK LOCK	83113-S6A-003ZL	US $3.26
21	21 90105-SV4-000 Nut FR. COMBINATION LIGHT	90105-SV4-000	from US $2
22	22 90149-SE0-003 Bolt EARTH, 6X16	90149-SE0-003	from US $2.52
23	23 90337-SJ4-003 Nut A.L.B.	90337-SJ4-003	US $1.63
24	24 91541-S0A-003 Clip HARNESS BAND(BLACK) (145MM)	91541-S0A-003	from US $2.18
25	25 91551-PNA-003 Band WIRE HARNESS (BLACK) (172MM)	91551-PNA-003	from US $1.61
26	26 93405-060-160-8 Bolt-washer 6X16	93405-060-160-8	from US $0.59
27	27 93903-24420 Screw TAPPING, 4X16	93903-24420	from US $0.37
28	28 94050-06080 Nut FLANGE, 6MM	94050-06080	from US $0.52

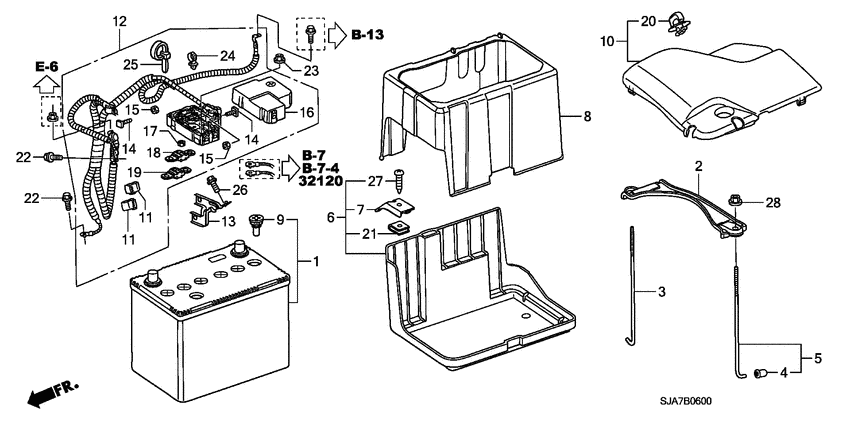

Battery (-'08) Diagram Honda LEGEND General 7050860-539605

Battery (-'08) Diagram Honda LEGEND General 7050860-539605
