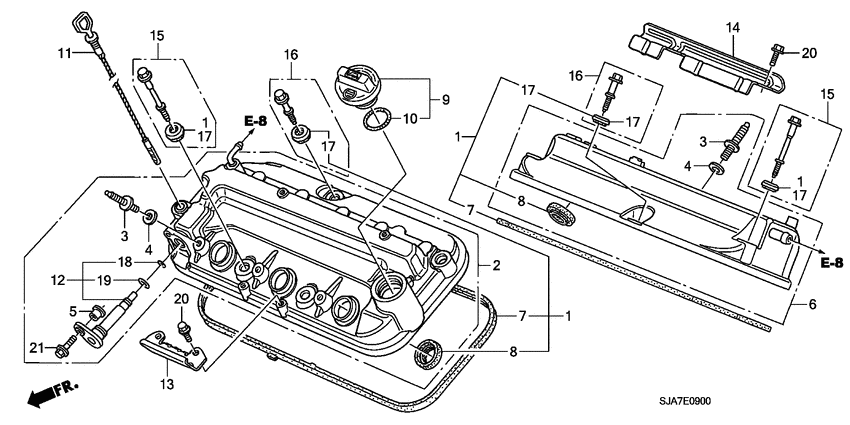

Cylinder head cover (-'08) Diagram Honda LEGEND
- Year
- 2007
- Model code
- LEGEND
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12030-RJA-010 Packing setHEAD COVER |
12030-RJA-010 |
US $79.29 |
||
|
2
|
2
12310-RJA-000 Cover, FR. CYLINDER HEAD |
12310-RJA-000 |
US $314.16 |
||
|
3
|
3
12315-PLC-000 BoltSTUD |
12315-PLC-000 |
US $1.89 |
||
|
4
|
4
12316-PLC-000
Washer
|
12316-PLC-000 |
— | ||
|
5
|
5
12316-RJA-000 CollarPCV VALVE |
12316-RJA-000 |
US $7.28 |
||
|
6
|
6
12320-RJA-000 Cover, RR. CYLINDER HEAD |
12320-RJA-000 |
US $312.66 |
||
|
7
|
7
12341-RCA-A01 PackingHEAD COVER 3101143 - |
12341-RCA-A01 |
from US $23.83 |
||
|
7
|
7
12341-RCA-A00 PackingHEAD COVER 00000000 - 3101142 |
12341-RCA-A00 |
US $20.35 |
||
|
8
|
8
12342-P08-004 Seal |
12342-P08-004 |
from US $5.48 |
||
| replacement | |||||
|
8
|
8
12342-RYE-004 Seal,spark plug t |
12342-RYE-004 |
from US $8.53 |
||
|
9
|
9
15610-P5G-000 Cap assy.OIL FILLER |
15610-P5G-000 |
US $38 |
||
|
10
|
10
15613-PC6-000 Packing, Oil Filler |
15613-PC6-000 |
from US $4 |
||
|
11
|
11
15650-RJA-004 Gauge comp.OIL LEVEL |
15650-RJA-004 |
US $9.94 |
||
|
12
|
12
17130-RCA-A02 Valve assy.PCV |
17130-RCA-A02 |
from US $21.99 |
||
|
13
|
13
30511-RKB-000 InsulatorFR. COIL HEAT |
30511-RKB-000 |
US $5.18 |
||
|
14
|
14
30512-RJA-A00 InsulatorRR. COIL HEAT |
30512-RJA-A00 |
US $8.54 |
||
|
15
|
15
90010-P8A-A00 Bolt aHEAD COVER |
90010-P8A-A00 |
from US $9.16 |
||
|
16
|
16
90012-P8A-A00 Bolt bHEAD COVER |
90012-P8A-A00 |
from US $7.98 |
||
|
17
|
17
90442-P8A-A00 WasherHEAD COVER |
90442-P8A-A00 |
from US $3.96 |
||
|
18
|
18
91307-RCA-A01 O-ring10.2X1.8 |
91307-RCA-A01 |
from US $2.19 |
||
|
19
|
19
91308-RCA-A01 O-ring14.8X1.8 |
91308-RCA-A01 |
from US $3.01 |
||
|
20
|
20
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
21
|
21
95701-060-280-8 BoltFLANGE, 6X28 |
95701-060-280-8 |
from US $0.74 |
||
