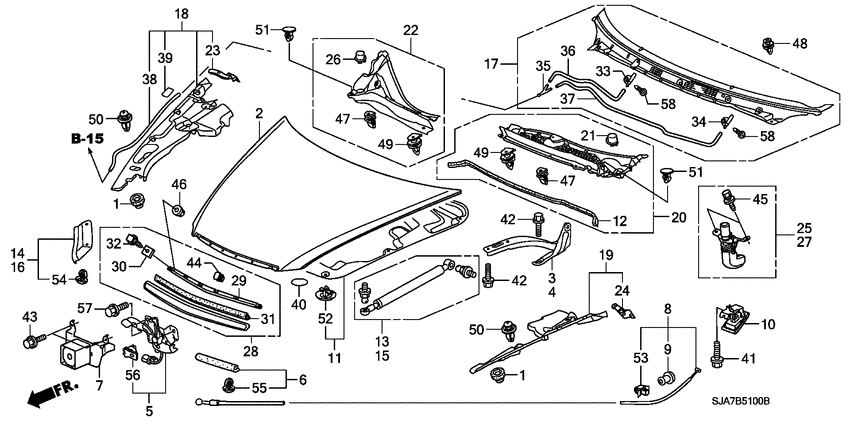

Engine hood (LH; -'08) Diagram Honda LEGEND
- Year
- 2007
- Model code
- LEGEND
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17213-P8A-A00 RubberINTAKE MANIFOLD COVER MOUNTING |
17213-P8A-A00 |
from US $1.85 |
||
|
2
|
2
60100-SJA-C01ZZ Hood comp.ENGINE |
60100-SJA-C01ZZ |
US $1,015.04 |
||
|
3
|
3
60120-SJA-E00ZZ Hinge compR. HOOD |
60120-SJA-E00ZZ |
US $41.98 |
||
|
4
|
4
60170-SJA-E00ZZ Hinge compL. HOOD |
60170-SJA-E00ZZ |
US $41.98 |
||
|
5
|
5
74120-SJA-A02 Lock assyHOOD 7C400188 - |
74120-SJA-A02 |
US $85.76 |
||
|
5
|
5
74120-SJA-A01 Lock assyHOOD 00000000 - 7C400187 |
74120-SJA-A01 |
US $90.88 |
||
|
6
|
6
74121-SJA-X00 RubberHOOD SEAL |
74121-SJA-X00 |
US $7 |
||
|
7
|
7
74126-SJA-E00 Cover comp.HOOD LOCK |
74126-SJA-E00 |
US $385.28 |
||
|
8
|
8
74130-SJA-G01
Wire assy.
|
74130-SJA-G01 |
— | ||
|
9
|
9
74134-SM4-000 GrommetHOOD WIRE |
74134-SM4-000 |
US $1.82 |
||
|
10
|
10
74135-SJA-A01ZA Lever compHOOD WIRE *NH167L* |
74135-SJA-A01ZA |
US $12.18 |
||
|
10
|
10
74135-SJA-A01ZC Lever compHOOD WIRE *YR292L* |
74135-SJA-A01ZC |
US $12.18 |
||
|
10
|
10
74135-SJA-A01ZB Lever compHOOD WIRE *NH557L* |
74135-SJA-A01ZB |
US $12.18 |
||
|
11
|
11
74141-SJA-A01 InsulatorHOOD |
74141-SJA-A01 |
US $72.96 |
||
|
12
|
12
74143-SJA-E00 RubberRR. HOOD SEAL |
74143-SJA-E00 |
US $25.34 |
||
|
13
|
13
74145-SJA-306
Stay set
|
74145-SJA-306 |
— | ||
|
14
|
14
74148-SJA-A01 RubberR. HOOD SEAL |
74148-SJA-A01 |
US $11.90 |
||
|
15
|
15
74195-SJA-306
Stay set
|
74195-SJA-306 |
— | ||
|
16
|
16
74198-SJA-A01 RubberL. HOOD SEAL |
74198-SJA-A01 |
US $11.90 |
||
|
17
|
17
74201-SJA-A00ZA GarnishCOWL TOP UPPER *NH555* |
74201-SJA-A00ZA |
US $241.92 |
||
|
18
|
18
74206-SJA-C00 Garnish, R. FR. FENDER |
74206-SJA-C00 |
US $83.03 |
||
|
19
|
19
74207-SJA-A00 GarnishL. FR. FENDER |
74207-SJA-A00 |
US $57.98 |
||
|
20
|
20
74210-SJA-G00 Cowl top assy.FR. DRIVER SIDE |
74210-SJA-G00 |
US $158.72 |
||
|
21
|
21
74213-SJA-G00 CoverDRIVER SIDE POWER UNIT |
74213-SJA-G00 |
US $9.38 |
||
|
22
|
22
74220-SJA-G00 Cowl top assy.FR. PASSENGER SIDE |
74220-SJA-G00 |
US $89.60 |
||
|
23
|
23
74233-SJA-A00 RubberR. SEAL |
74233-SJA-A00 |
US $8.96 |
||
|
24
|
24
74234-SJA-A00 RubberL. SEAL |
74234-SJA-A00 |
US $8.96 |
||
|
25
|
25
06740-SJA-Y01
Power unit kit
|
06740-SJA-Y01 |
— | ||
|
26
|
26
74263-SJA-G00 CoverPASSENGER SIDE POWER UNIT |
74263-SJA-G00 |
US $9.38 |
||
|
27
|
27
06745-SJA-Y01
Power unit kit
|
06745-SJA-Y01 |
— | ||
|
28
|
28
75120-SJA-A01 MoldingFR. HOOD |
75120-SJA-A01 |
US $152.32 |
||
|
29
|
29
75121-SJA-A01
Stiffener
|
75121-SJA-A01 |
— | ||
|
30
|
30
75122-SEA-003 Packing b |
75122-SEA-003 |
US $0.49 |
||
|
31
|
31
75122-SJA-A01 Rubber |
75122-SJA-A01 |
US $8.82 |
||
|
32
|
32
75126-SJA-A01 BoltSLIDE, 4MM |
75126-SJA-A01 |
US $2.80 |
||
|
33
|
33
76810-SJA-003 Nozzle assy.R. |
76810-SJA-003 |
US $13.16 |
||
|
34
|
34
76815-SJA-003 Nozzle assy.L. |
76815-SJA-003 |
US $13.16 |
||
|
35
|
35
76830-SL0-003 Joint yTUBE (MITSUBA) |
76830-SL0-003 |
from US $5.54 |
||
|
36
|
36
76832-SJA-A01
Tube
|
76832-SJA-A01 |
— | ||
|
37
|
37
76839-SJA-A01
Tube
|
76839-SJA-A01 |
— | ||
|
38
|
38
76839-SJA-014
Tube
|
76839-SJA-014 |
— | ||
|
39
|
39
80050-SP0-000 LabelAIR CONDITIONER CAUTION (HFC134A) |
80050-SP0-000 |
from US $1.35 |
||
|
40
|
40
85268-SA0-000 ProtectionTAILGATE, 20MM (CIRCLE) |
85268-SA0-000 |
from US $1.63 |
||
|
41
|
41
90104-SJA-003 Bolt-washer6X16 |
90104-SJA-003 |
US $1.12 |
||
|
42
|
42
90108-S0A-003 BoltFLANGE, 6X15 |
90108-S0A-003 |
from US $1.41 |
||
|
43
|
43
93404-060-120-4 Bolt-washer6X12 |
93404-060-120-4 |
US $0.52 |
||
|
44
|
44
90157-SJA-A01 ClipHOOD MOLDING |
90157-SJA-A01 |
US $1.75 |
||
|
45
|
45
90178-SDB-003 Bolt-washer6X20 |
90178-SDB-003 |
US $1.33 |
||
|
46
|
46
90313-SJA-003 NutSPECIAL, 4MM |
90313-SJA-003 |
US $2.86 |
||
|
47
|
47
90602-SFA-004 ClipCOWL TOP |
90602-SFA-004 |
from US $1.82 |
||
|
48
|
48
90602-SJA-003 ClipPUSH SCREW |
90602-SJA-003 |
US $1.82 |
||
|
49
|
49
90602-S5A-003 ClipCOWL TOP |
90602-S5A-003 |
US $1.61 |
||
|
50
|
50
90657-SA5-003 ClipSIDE APRON MOLDING |
90657-SA5-003 |
from US $1.84 |
||
|
51
|
51
91501-SL4-003 ClipFR. COWL |
91501-SL4-003 |
from US $1.39 |
||
|
52
|
52
91501-S1K-003 ClipENGINE HOOD INSULATOR |
91501-S1K-003 |
from US $3.11 |
||
|
53
|
53
91504-SDA-003 ClipHOOD OPEN WIRE |
91504-SDA-003 |
US $1.33 |
||
|
54
|
54
91518-SM4-003 ClipTRUNK MOLDING |
91518-SM4-003 |
from US $1.76 |
||
|
55
|
55
91518-SM4-003 ClipTRUNK MOLDING |
91518-SM4-003 |
from US $1.76 |
||
|
56
|
56
91565-SD5-003 ClipCOUPLER(NATURAL) |
91565-SD5-003 |
US $1.61 |
||
|
57
|
57
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
58
|
58
93903-241G0 ScrewTAPPING, 4X8 |
93903-241G0 |
US $0.67 |
