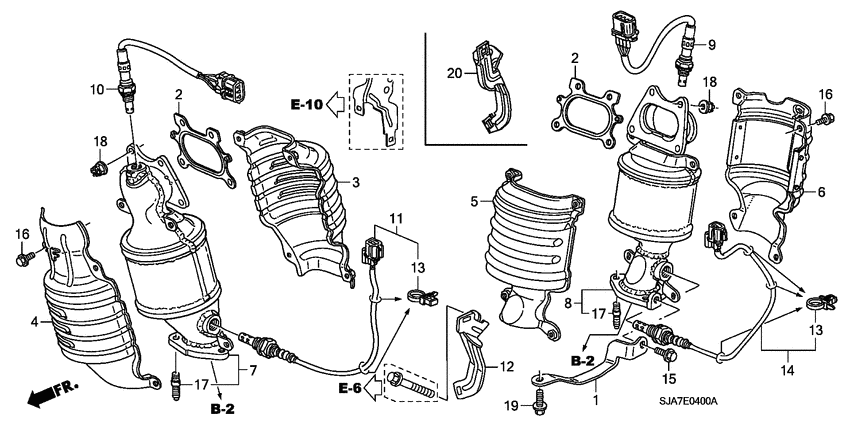

Exhaust manifold (-'08) Diagram Honda LEGEND
- Year
- 2007
- Model code
- LEGEND
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11941-RCA-A00
Stay
|
11941-RCA-A00 |
— | ||
|
2
|
2
18115-RJA-G01 GasketEX. MANIFOLD |
18115-RJA-G01 |
US $13.57 |
||
|
3
|
3
18120-RCA-A00 Cover aFR. PRIMARY CONVERTER |
18120-RCA-A00 |
US $33.54 |
||
|
4
|
4
18121-RCA-A00 Cover bFR. PRIMARY CONVERTER |
18121-RCA-A00 |
US $33.54 |
||
|
5
|
5
18122-RJA-A00 Cover comp. aRR. PRIMARY CONVERTER |
18122-RJA-A00 |
US $38.53 |
||
|
6
|
6
18123-RJA-A00 Cover comp. bRR. PRIMARY CONVERTER |
18123-RJA-A00 |
US $38.53 |
||
|
7
|
7
18190-RJA-A00 Converter comp.FR. PRIMARY |
18190-RJA-A00 |
US $1,035.52 |
||
|
8
|
8
18290-RJA-A00 Converter comp.RR. PRIMARY |
18290-RJA-A00 |
US $1,081.60 |
||
|
9
|
9
36531-RCA-A02 SensorLAF |
36531-RCA-A02 |
US $276.76 |
||
|
10
|
10
36531-RDM-A01 SensorFR. LAF |
36531-RDM-A01 |
US $276.76 |
||
|
11
|
11
36532-RJA-004 SensorFR. SECONDARY OXYGEN |
36532-RJA-004 |
US $243.20 |
||
|
12
|
12
36534-RJA-J00
Stay
00000000 - 7C400045 |
36534-RJA-J00 |
— | ||
|
13
|
13
36538-RDM-A01 ClipWIRE HARNESS |
36538-RDM-A01 |
US $2.31 |
||
|
14
|
14
36542-RJA-004 SensorRR. SECONDARY OXYGEN |
36542-RJA-004 |
US $243.20 |
||
|
15
|
15
90004-RCA-A00 Bolt-washer8X16 |
90004-RCA-A00 |
US $1.05 |
||
|
16
|
16
90023-PR7-A01 BOLT, FLANGE (6X12)6X12 (IWATA BOLT) |
90023-PR7-A01 |
US $2.96 |
||
|
17
|
17
90065-PG6-000 Bolt, STUD, 10X24 |
90065-PG6-000 |
from US $2.31 |
||
|
18
|
18
90212-RCA-A01 NutSELF-LOCK, 8MM |
90212-RCA-A01 |
from US $2.70 |
||
|
19
|
19
93404-080-200-8 Bolt-washer8X20 |
93404-080-200-8 |
from US $0.67 |
||
|
20
|
20
36534-RJA-J01
Stay
7C400046 - |
36534-RJA-J01 |
— |
