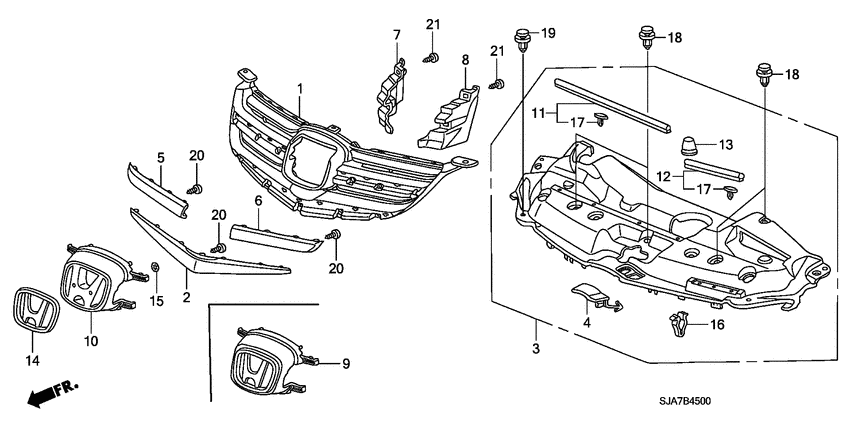

Front grille (-'08) Diagram Honda LEGEND
- Year
- 2007
- Model code
- LEGEND
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71121-SJA-000ZC BaseFR. GRILLE *NH83M* |
71121-SJA-000ZC |
US $399.36 |
||
|
1
|
1
71121-SJA-000ZB BaseFR. GRILLE *NH623M* |
71121-SJA-000ZB |
US $399.36 |
||
|
2
|
2
71122-SJA-000 MoldingFR. GRILLE LOWER |
71122-SJA-000 |
US $119.04 |
||
|
3
|
3
71123-SJA-000 CoverFR. GRILLE |
71123-SJA-000 |
US $97.28 |
||
|
4
|
4
71124-SJA-000 LidGRILLE COVER |
71124-SJA-000 |
US $10.64 |
||
|
5
|
5
71125-SJA-000 MoldingR. FR. GRILLE UPPER |
71125-SJA-000 |
US $77.79 |
||
|
6
|
6
71126-SJA-000 MoldingL. FR. GRILLE UPPER |
71126-SJA-000 |
US $77.79 |
||
|
7
|
7
71127-SJA-000 CoverR. |
71127-SJA-000 |
US $72.96 |
||
|
8
|
8
71128-SJA-000 CoverL. |
71128-SJA-000 |
US $72.96 |
||
|
10
|
10
71129-SJA-000ZB BaseFR. EMBLEM (H) *NH83M* |
71129-SJA-000ZB |
US $75.52 |
||
|
10
|
10
71129-SJA-000ZA BaseFR. EMBLEM (H) *NH623M* |
71129-SJA-000ZA |
US $75.52 |
||
|
11
|
11
74128-SJA-003 RubberHOOD SEAL |
74128-SJA-003 |
US $27.26 |
||
|
12
|
12
74129-SJA-003 RubberINTAKE SEAL |
74129-SJA-003 |
US $21.38 |
||
|
13
|
13
74175-SJA-000 CushionHOOD |
74175-SJA-000 |
from US $3.42 |
||
|
14
|
14
75700-S9A-G00 Front Honda Emblem(H) |
75700-S9A-G00 |
from US $24.53 |
||
|
15
|
15
90301-ST0-003 push nut, 3mm |
90301-ST0-003 |
from US $1.33 |
||
|
16
|
16
90601-SJA-003 ClipSNAP FITTING |
90601-SJA-003 |
from US $1.85 |
||
|
17
|
17
90603-SJA-003 ClipSEAL RUBBER |
90603-SJA-003 |
US $1.33 |
||
|
18
|
18
91503-SZ3-003 Clip A |
91503-SZ3-003 |
from US $1.67 |
||
|
19
|
19
91503-SZ5-003 ClipBUMPER FACE |
91503-SZ5-003 |
from US $1.75 |
||
|
20
|
20
93903-422J0 ScrewTAPPING, 3X10 |
93903-422J0 |
from US $1.23 |
||
|
21
|
21
93903-423J0 ScrewTAPPING, 3X12 |
93903-423J0 |
US $0.67 |
