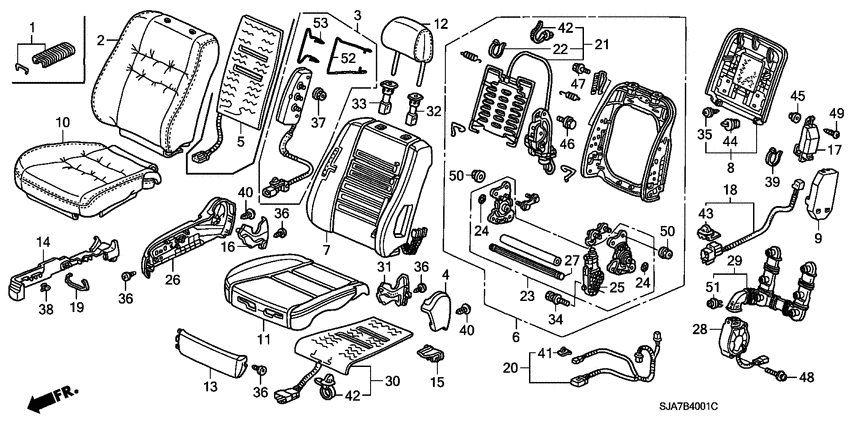

Front seat (R.; -'08) Diagram Honda LEGEND
- Year
- 2007
- Model code
- LEGEND
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
from US $4.74 |
||
|
2
|
2
04811-SJA-A01ZC Cover setR. TRIM (LEATHER) (SIDE AIRBAG) *YR240L* |
04811-SJA-A01ZC |
US $963.84 |
||
|
2
|
2
04811-SJA-A01ZB Cover setR. TRIM (LEATHER) (SIDE AIRBAG) *NH556L* |
04811-SJA-A01ZB |
US $963.84 |
||
|
2
|
2
04811-SJA-A01ZA Cover setR. TRIM (LEATHER) (SIDE AIRBAG) *NH167L* |
04811-SJA-A01ZA |
US $963.84 |
||
|
3
|
3
78050-SJA-K80
Module assy.
00000000 - 7C400193 |
78050-SJA-K80 |
— | ||
|
3
|
3
78050-SJA-K90
Module assy.
7C400194 - |
78050-SJA-K90 |
— | ||
|
4
|
4
81115-SJA-A01ZA CoverR. CENTER *NH167L* |
81115-SJA-A01ZA |
US $11.06 |
||
|
4
|
4
81115-SJA-A01ZC CoverR. CENTER *YR240L* |
81115-SJA-A01ZC |
US $10.08 |
||
|
4
|
4
81115-SJA-A01ZB CoverR. CENTER *NH556L* |
81115-SJA-A01ZB |
US $10.08 |
||
|
6
|
6
81126-SJA-A02 Frame compR. FR. SEATBACK |
81126-SJA-A02 |
US $700.16 |
||
|
7
|
7
81127-SJA-A01 Pad compFR. SEATBACK (WITH OPDS SENSOR) |
81127-SJA-A01 |
US $367.36 |
||
|
8
|
8
81129-SJA-A03ZB Cover comp.FR. SEATBACK (LEATHER) *NH556L* 7C400194 - |
81129-SJA-A03ZB |
US $218.88 |
||
|
8
|
8
81129-SJA-A02ZC Cover comp.FR. SEATBACK (LEATHER) *YR240L* 00000000 - 7C400193 |
81129-SJA-A02ZC |
US $253.44 |
||
|
8
|
8
81129-SJA-A03ZC Cover comp.FR. SEATBACK (LEATHER) *YR240L* 7C400194 - |
81129-SJA-A03ZC |
US $218.88 |
||
|
8
|
8
81129-SJA-A03ZA Cover comp.FR. SEATBACK (LEATHER) *NH167L* 7C400194 - |
81129-SJA-A03ZA |
US $218.88 |
||
|
8
|
8
81129-SJA-A02ZB Cover comp.FR. SEATBACK (LEATHER) *NH556L* 00000000 - 7C400193 |
81129-SJA-A02ZB |
US $253.44 |
||
|
8
|
8
81129-SJA-A02ZA Cover comp.FR. SEATBACK (LEATHER) *NH167L* 00000000 - 7C400193 |
81129-SJA-A02ZA |
US $253.44 |
||
|
9
|
9
81129-S5A-J01 CoverR. FR. SEATBACK OPDS |
81129-S5A-J01 |
US $5.74 |
||
|
10
|
10
81131-SJA-A01ZA CoverR. FR. SEAT CUSHION TRIM (LEATHER) *NH167L* 00000000 - 7C400193 |
81131-SJA-A01ZA |
US $1,057.28 |
||
|
10
|
10
81131-SJA-A01ZC CoverR. FR. SEAT CUSHION TRIM (LEATHER) *YR240L* 00000000 - 7C400193 |
81131-SJA-A01ZC |
US $1,057.28 |
||
|
10
|
10
81131-SJA-A02ZA CoverR. FR. SEAT CUSHION TRIM (LEATHER) *NH167L* 7C400194 - |
81131-SJA-A02ZA |
US $963.84 |
||
|
10
|
10
81131-SJA-A01ZB CoverR. FR. SEAT CUSHION TRIM (LEATHER) *NH556L* 00000000 - 7C400193 |
81131-SJA-A01ZB |
US $1,057.28 |
||
|
10
|
10
81131-SJA-A02ZC CoverR. FR. SEAT CUSHION TRIM (LEATHER) *YR240L* 7C400194 - |
81131-SJA-A02ZC |
US $963.84 |
||
|
10
|
10
81131-SJA-A02ZB CoverR. FR. SEAT CUSHION TRIM (LEATHER) *NH556L* 7C400194 - |
81131-SJA-A02ZB |
US $963.84 |
||
|
11
|
11
81137-SJA-G01 Pad compR. FR. SEAT CUSHION |
81137-SJA-G01 |
US $185.60 |
||
|
12
|
12
81140-SJA-A03ZC Headrest assyFR. SEAT (LEATHER) *YR240L* 7C400194 - |
81140-SJA-A03ZC |
US $440.32 |
||
|
12
|
12
81140-SJA-A03ZA Headrest assyFR. SEAT (LEATHER) *NH167L* 7C400194 - |
81140-SJA-A03ZA |
US $440.32 |
||
|
12
|
12
81140-SJA-A02ZB Headrest assyFR. SEAT (LEATHER) *NH556L* 00000000 - 7C400193 |
81140-SJA-A02ZB |
US $504.32 |
||
|
12
|
12
81140-SJA-A02ZA Headrest assyFR. SEAT (LEATHER) *NH167L* 00000000 - 7C400193 |
81140-SJA-A02ZA |
US $504.32 |
||
|
12
|
12
81140-SJA-A02ZC Headrest assyFR. SEAT (LEATHER) *YR240L* 00000000 - 7C400193 |
81140-SJA-A02ZC |
US $504.32 |
||
|
12
|
12
81140-SJA-A03ZB Headrest assyFR. SEAT (LEATHER) *NH556L* 7C400194 - |
81140-SJA-A03ZB |
US $440.32 |
||
|
13
|
13
81151-SJA-A01ZA CoverR. FR. SEAT CUSHION *NH167L* |
81151-SJA-A01ZA |
US $13.72 |
||
|
13
|
13
81151-SJA-A01ZC CoverR. FR. SEAT CUSHION *YR240L* |
81151-SJA-A01ZC |
US $13.72 |
||
|
13
|
13
81151-SJA-A01ZB CoverR. FR. SEAT CUSHION *NH556L* |
81151-SJA-A01ZB |
US $13.72 |
||
|
14
|
14
81152-SJA-E01ZC Cover comp.R. LOWER OUTER *YR240L* |
81152-SJA-E01ZC |
US $10.08 |
||
|
14
|
14
81152-SJA-E01ZA Cover comp.R. LOWER OUTER *NH167L* |
81152-SJA-E01ZA |
US $10.08 |
||
|
14
|
14
81152-SJA-E01ZB Cover comp.R. LOWER OUTER *NH556L* |
81152-SJA-E01ZB |
US $10.08 |
||
|
15
|
15
81153-SJA-A01ZA Cover comp.R. LOWER INNER *NH167L* |
81153-SJA-A01ZA |
US $5.18 |
||
|
15
|
15
81153-SJA-A01ZC Cover comp.R. LOWER INNER *YR240L* |
81153-SJA-A01ZC |
US $5.18 |
||
|
15
|
15
81153-SJA-A01ZB Cover comp.R. LOWER INNER *NH556L* |
81153-SJA-A01ZB |
US $5.18 |
||
|
16
|
16
81154-SJA-A01ZC CoverR. RECLINING INNER *YR240L* |
81154-SJA-A01ZC |
US $7 |
||
|
16
|
16
81154-SJA-A01ZB CoverR. RECLINING INNER *NH556L* |
81154-SJA-A01ZB |
US $7 |
||
|
16
|
16
81154-SJA-A01ZA CoverR. RECLINING INNER *NH167L* |
81154-SJA-A01ZA |
US $7.70 |
||
|
17
|
17
81161-SJA-A01 Opds unit |
81161-SJA-A01 |
US $596.48 |
||
|
18
|
18
81166-SJA-A10 CordOPDS |
81166-SJA-A10 |
US $15.74 |
||
|
19
|
19
81199-SJA-A01
Spring
|
81199-SJA-A01 |
— | ||
|
20
|
20
81209-SJA-A01
Sub cord
|
81209-SJA-A01 |
— | ||
|
21
|
21
81210-SJA-A02 Lumbar comp.R. FR. SEAT |
81210-SJA-A02 |
US $369.92 |
||
|
22
|
22
81217-SDA-A42 BandWIRE |
81217-SDA-A42 |
US $2.66 |
||
|
23
|
23
81230-SJA-A01 Adjuster compR. FR. RECLINING |
81230-SJA-A01 |
US $349.44 |
||
|
24
|
24
81236-SDG-H71 NutPUSH |
81236-SDG-H71 |
US $0.91 |
||
|
25
|
25
81237-SJA-A01 MotorR. RECLINING |
81237-SJA-A01 |
US $200.96 |
||
|
26
|
26
81238-SJA-E01ZC Cover comp.R. RECLINING *YR240L* |
81238-SJA-E01ZC |
US $30.85 |
||
|
26
|
26
81238-SJA-E01ZB Cover comp.R. RECLINING *NH556L* |
81238-SJA-E01ZB |
US $30.85 |
||
|
26
|
26
81238-SJA-E01ZA Cover comp.R. RECLINING *NH167L* |
81238-SJA-E01ZA |
US $30.85 |
||
|
27
|
27
81241-SDG-H71
Shaft
|
81241-SDG-H71 |
— | ||
|
30
|
30
81134-SJA-A01 Heater comp.FR. SEAT CUSHION |
81134-SJA-A01 |
US $291.84 |
||
|
31
|
31
81554-SJA-A01ZA CoverL. RECLINING INNER *NH167L* |
81554-SJA-A01ZA |
US $7.70 |
||
|
31
|
31
81554-SJA-A01ZC CoverL. RECLINING INNER *YR240L* |
81554-SJA-A01ZC |
US $7 |
||
|
31
|
31
81554-SJA-A01ZB CoverL. RECLINING INNER *NH556L* |
81554-SJA-A01ZB |
US $7 |
||
|
32
|
32
82143-SDA-A01ZE GuideHEADREST FREE *YR240L* |
82143-SDA-A01ZE |
US $6.02 |
||
|
32
|
32
82143-SDA-A01ZA GuideHEADREST FREE *NH167L* |
82143-SDA-A01ZA |
from US $6.02 |
||
|
32
|
32
82143-SDA-A01ZH GuideHEADREST FREE *NH556L* |
82143-SDA-A01ZH |
US $6.02 |
||
|
33
|
33
82144-SDA-A01ZA Guide compHEADREST LOCK *NH167L* |
82144-SDA-A01ZA |
US $7.42 |
||
|
33
|
33
82144-SDA-A01ZE Guide compHEADREST LOCK *YR240L* |
82144-SDA-A01ZE |
US $7.42 |
||
|
33
|
33
82144-SDA-A01ZH Guide compHEADREST LOCK *NH556L* |
82144-SDA-A01ZH |
US $7.42 |
||
|
34
|
34
90102-SDG-H71 Bolt-washer6MM |
90102-SDG-H71 |
US $2.03 |
||
|
35
|
35
90132-SS0-000 ScrewTAPPING, 4X10 (PO) |
90132-SS0-000 |
from US $1.12 |
||
|
36
|
36
90134-SE3-003 ScrewTAPPING, 5X10 |
90134-SE3-003 |
from US $1.48 |
||
|
37
|
37
90321-SP0-A80 Nut-washer6MM |
90321-SP0-A80 |
from US $1.26 |
||
|
38
|
38
90610-SDA-003 ClipGARNISH |
90610-SDA-003 |
US $0.98 |
||
|
39
|
39
90650-KV3-000 BandWIRE |
90650-KV3-000 |
from US $2.59 |
||
|
40
|
40
90666-SA0-003F4 ClipTRIM, 5MM *YR240L* |
90666-SA0-003F4 |
US $1.68 |
||
|
40
|
40
90666-SA0-003A3 ClipTRIM, 5MM *NH167L* |
90666-SA0-003A3 |
from US $1.68 |
||
|
40
|
40
90666-SA0-003F6 ClipTRIM, 5MM *NH556L* |
90666-SA0-003F6 |
US $1.68 |
||
|
42
|
42
91540-S0A-003 ClipHARNESS BAND(NATURAL) (96.9MM) |
91540-S0A-003 |
from US $2.29 |
||
|
43
|
43
91565-S0X-003 ClipCOUPLER (DARK GREEN) |
91565-S0X-003 |
from US $1.61 |
||
|
44
|
44
91566-SP0-003 ClipBACK COVER (NATURAL) |
91566-SP0-003 |
US $1.33 |
||
|
45
|
45
91626-SJA-A01 GrommetSCREW, 6MM |
91626-SJA-A01 |
US $1.40 |
||
|
46
|
46
93403-060-160-7 Bolt-washer6X16 |
93403-060-160-7 |
from US $0.59 |
||
|
47
|
47
93403-060-200-0 Bolt-washer6X20 |
93403-060-200-0 |
from US $0.59 |
||
|
49
|
49
93903-26180 ScrewTAPPING, 6X12 |
93903-26180 |
from US $0.44 |
||
|
50
|
50
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
52
|
52
81281-SJA-A01
Wire a
|
81281-SJA-A01 |
— | ||
|
53
|
53
81282-SJA-A01
Wire b
|
81282-SJA-A01 |
— |
