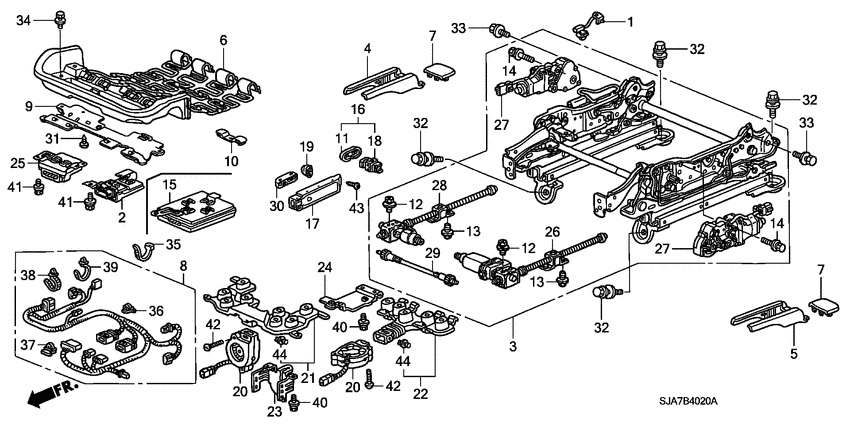

Front seat components (R.; -'08) Diagram Honda LEGEND
- Year
- 2007
- Model code
- LEGEND
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34760-SJA-003 Light assyFOOT |
34760-SJA-003 |
US $23.55 |
||
|
2
|
2
77920-SJA-E13
Hood unit
7C400209 - |
77920-SJA-E13 |
— | ||
|
2
|
2
77920-SJA-E11
Hood unit
00000000 - 7C400193 |
77920-SJA-E11 |
— | ||
|
2
|
2
77920-SJA-E12
Hood unit
7C400194 - 7C400208 |
77920-SJA-E12 |
— | ||
|
3
|
3
81110-SJA-G01 Device comp.R. FR. SEAT (8WAY) |
81110-SJA-G01 |
US $995.84 |
||
|
4
|
4
81118-SJA-A01ZA CoverRR. RAIL *NH167L* |
81118-SJA-A01ZA |
US $9.10 |
||
|
4
|
4
81118-SJA-A01ZC CoverRR. RAIL *YR240L* |
81118-SJA-A01ZC |
US $9.10 |
||
|
4
|
4
81118-SJA-A01ZB CoverRR. RAIL *NH556L* |
81118-SJA-A01ZB |
US $9.10 |
||
|
5
|
5
81118-SJA-A01ZA CoverRR. RAIL *NH167L* |
81118-SJA-A01ZA |
US $9.10 |
||
|
5
|
5
81118-SJA-A01ZC CoverRR. RAIL *YR240L* |
81118-SJA-A01ZC |
US $9.10 |
||
|
5
|
5
81118-SJA-A01ZB CoverRR. RAIL *NH556L* |
81118-SJA-A01ZB |
US $9.10 |
||
|
6
|
6
81539-SJA-J01 Frame sub comp.FR. SEAT CUSHION |
81539-SJA-J01 |
US $110.72 |
||
|
7
|
7
81195-SJA-A01ZC CoverR. RR. FOOT *YR240L* |
81195-SJA-A01ZC |
US $6.16 |
||
|
7
|
7
81195-SJA-A01ZB CoverR. RR. FOOT *NH556L* |
81195-SJA-A01ZB |
US $6.16 |
||
|
7
|
7
81195-SJA-A01ZA CoverR. RR. FOOT *NH167L* |
81195-SJA-A01ZA |
US $6.72 |
||
|
8
|
8
81206-SJA-G01 CordR. POWER SEAT (8WAY HEATER) |
81206-SJA-G01 |
US $104.96 |
||
|
9
|
9
81208-SJA-A01 HolderHARNESS |
81208-SJA-A01 |
US $4.34 |
||
|
10
|
10
81208-SJA-J01 Holder aHARNESS |
81208-SJA-J01 |
US $4.34 |
||
|
11
|
11
81211-SJA-A01ZC KnobR. *YR240L* |
81211-SJA-A01ZC |
US $12.18 |
||
|
11
|
11
81211-SJA-A01ZB KnobR. *NH556L* |
81211-SJA-A01ZB |
US $12.18 |
||
|
11
|
11
81211-SJA-A01ZA KnobR. *NH167L* |
81211-SJA-A01ZA |
US $12.18 |
||
|
12
|
12
81217-SFY-J21 BoltUPPER |
81217-SFY-J21 |
US $1.68 |
||
|
13
|
13
81218-SFY-J21 BoltLOWER |
81218-SFY-J21 |
US $1.68 |
||
|
14
|
14
81219-SFY-J21 ScrewHEIGHT |
81219-SFY-J21 |
US $2.03 |
||
|
16
|
16
81251-SJA-A01ZA
Switch assy
|
81251-SJA-A01ZA |
— | ||
|
16
|
16
81251-SJA-A01ZC
Switch assy
|
81251-SJA-A01ZC |
— | ||
|
16
|
16
81251-SJA-A01ZB
Switch assy
|
81251-SJA-A01ZB |
— | ||
|
17
|
17
81253-SJA-J01
Switch assy
|
81253-SJA-J01 |
— | ||
|
18
|
18
81255-SZ3-A01
Switch assy
|
81255-SZ3-A01 |
— | ||
|
19
|
19
81256-SJA-A01ZC KnobSWITCH (B) *YR240L* |
81256-SJA-A01ZC |
US $7.56 |
||
|
19
|
19
81256-SJA-A01ZB KnobSWITCH (B) *NH556L* |
81256-SJA-A01ZB |
US $7.56 |
||
|
19
|
19
81256-SJA-A01ZA KnobSWITCH (B) *NH167L* |
81256-SJA-A01ZA |
US $7.56 |
||
|
26
|
26
81601-SJA-A01 Motor assy.L. SLIDE |
81601-SJA-A01 |
US $330.62 |
||
|
27
|
27
81603-SFY-J21 MotorL. HEIGHT |
81603-SFY-J21 |
US $198.40 |
||
|
28
|
28
81614-SJA-A01 Box assyL. GEAR |
81614-SJA-A01 |
US $167.68 |
||
|
29
|
29
81616-SJA-A01 Cable assy |
81616-SJA-A01 |
US $29.77 |
||
|
30
|
30
81655-SJA-A01ZB KnobSWITCH (A) *NH556L* |
81655-SJA-A01ZB |
US $10.78 |
||
|
30
|
30
81655-SJA-A01ZA KnobSWITCH (A) *NH167L* |
81655-SJA-A01ZA |
US $10.78 |
||
|
30
|
30
81655-SJA-A01ZC KnobSWITCH (A) *YR240L* |
81655-SJA-A01ZC |
US $10.78 |
||
|
31
|
31
90134-SE3-003 ScrewTAPPING, 5X10 |
90134-SE3-003 |
from US $1.48 |
||
|
32
|
32
90135-S7A-J51 Bolt-washer10X25 |
90135-S7A-J51 |
US $1.89 |
||
|
33
|
33
90143-SR3-000 Bolt-washer10X22 |
90143-SR3-000 |
US $2.38 |
||
|
34
|
34
90143-ST5-900 Bolt-washer8X22 |
90143-ST5-900 |
US $1.61 |
||
|
35
|
35
90650-KV3-000 BandWIRE |
90650-KV3-000 |
from US $2.59 |
||
|
36
|
36
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
37
|
37
91533-S82-003 ClipCOUPLER(BLACK) |
91533-S82-003 |
from US $3.08 |
||
|
38
|
38
91540-S0A-003 ClipHARNESS BAND(NATURAL) (96.9MM) |
91540-S0A-003 |
from US $2.29 |
||
|
39
|
39
91541-S0A-003 ClipHARNESS BAND(BLACK) (145MM) |
91541-S0A-003 |
from US $2.18 |
||
|
41
|
41
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
from US $0.56 |
||
| replacement | |||||
|
41
|
41
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
43
|
43
93903-14220 ScrewTAPPING, 4X10 |
93903-14220 |
US $0.37 |
||
