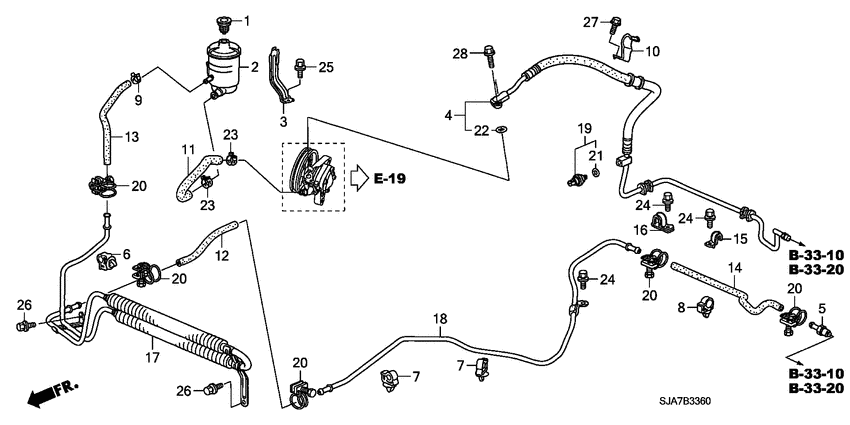

P.s. lines (LH; -'08) Diagram Honda LEGEND
- Year
- 2007
- Model code
- LEGEND
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53697-SB3-952 CapOIL TANK |
53697-SB3-952 |
from US $7.55 |
||
|
2
|
2
53701-SDA-A01 Tank comp.POWER STEERING OIL |
53701-SDA-A01 |
US $58.48 |
||
|
3
|
3
53711-SJA-000 Bracket assyOIL TANK |
53711-SJA-000 |
US $9.24 |
||
|
4
|
4
53713-SJA-G01 Hose comp.POWER STEERING FEED |
53713-SJA-G01 |
US $366.08 |
||
|
5
|
5
53720-SP0-010
Pipe comp
|
53720-SP0-010 |
— | ||
|
6
|
6
53728-SDB-A01 ClipRETURN PIPE |
53728-SDB-A01 |
from US $1.75 |
||
|
7
|
7
53728-S0X-A01 ClipRETURN PIPE |
53728-S0X-A01 |
US $6.19 |
||
|
8
|
8
53729-S0X-A01 ClipRETURN HOSE(BLACK) |
53729-S0X-A01 |
US $3.78 |
||
|
9
|
9
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.51 |
||
|
10
|
10
53730-SJA-000 ClampFEED HOSE |
53730-SJA-000 |
US $4.90 |
||
|
11
|
11
53731-SJA-000 TubeSUCTION |
53731-SJA-000 |
US $16.74 |
||
|
12
|
12
53732-SJA-A01 HoseOIL COOLER |
53732-SJA-A01 |
US $7.56 |
||
|
13
|
13
53733-SJA-003 HoseOIL TANK |
53733-SJA-003 |
from US $12.18 |
||
|
14
|
14
53734-SJA-A01 HosePOWER STEERING RETURN |
53734-SJA-A01 |
US $34.26 |
||
|
15
|
15
53736-SH3-950 Holder bPOWER STEERING PIPE |
53736-SH3-950 |
US $2.66 |
||
|
16
|
16
53736-SK7-950 Holder bPOWER STEERING PIPE |
53736-SK7-950 |
US $2.45 |
||
|
17
|
17
53765-SJA-000 Cooler, POWER STEERING OIL |
53765-SJA-000 |
US $187 |
||
|
18
|
18
53779-SJA-A00 Pipe compRETURN(B) |
53779-SJA-A00 |
US $117.44 |
||
|
19
|
19
56490-PFV-003
Switch assy
|
56490-PFV-003 |
— | ||
|
20
|
20
90635-SM4-A02 ClipOIL HOSE (MEIJI) 7C400047 - |
90635-SM4-A02 |
from US $4.12 |
||
|
20
|
20
90635-SM4-A01
Clip
00000000 - 7C400046 |
90635-SM4-A01 |
— | ||
| replacement | |||||
|
20
|
20
90635-SM4-A02 ClipOIL HOSE (MEIJI) 00000000 - 7C400046 |
90635-SM4-A02 |
from US $4.12 |
||
|
21
|
21
91304-PA6-003 O-ring7.8X1.9 |
91304-PA6-003 |
US $1.48 |
||
|
22
|
22
91370-SV4-000 O-ring14.4X1.9 |
91370-SV4-000 |
from US $3.15 |
||
|
23
|
23
91405-SS0-003 ClampTUBE (D21) |
91405-SS0-003 |
from US $1.96 |
||
|
24
|
24
93401-060-160-5 Bolt-washer6X16 |
93401-060-160-5 |
from US $0.52 |
||
|
25
|
25
93403-060-120-5 Bolt-washer6X12 |
93403-060-120-5 |
from US $0.59 |
||
|
26
|
26
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
27
|
27
95701-060-160-5 BoltFLANGE, 6X16 |
95701-060-160-5 |
US $0.52 |
||
|
28
|
28
95801-060-250-8 BoltFLANGE, 6X25 |
95801-060-250-8 |
from US $0.59 |
||
