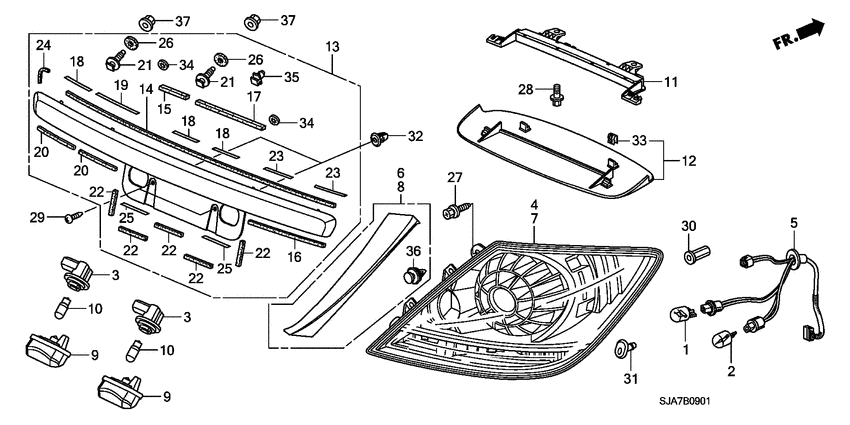

Taillight/license light (2) Diagram Honda LEGEND
- Year
- 2007
- Model code
- LEGEND
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33303-SL4-003 BulbWEDGE (12V 21W) (STANLEY) |
33303-SL4-003 |
from US $2.38 |
||
|
2
|
2
33303-S2R-003 BulbWEDGE (12V 21W) (STANLEY) (AMBER) |
33303-S2R-003 |
from US $2.96 |
||
|
3
|
3
33304-SJA-003
Socket comp.
|
33304-SJA-003 |
— | ||
|
4
|
4
33501-SJA-013 Lamp unitR. TAIL 7C400146 - |
33501-SJA-013 |
US $789.76 |
||
|
4
|
4
33501-SJA-003 Lamp unitR. TAIL 00000000 - 7C400145 |
33501-SJA-003 |
US $839.68 |
||
|
5
|
5
33503-SJA-A01 Cord comp |
33503-SJA-A01 |
US $59.65 |
||
|
6
|
6
33505-SJA-A01 Bezel comp.R. |
33505-SJA-A01 |
US $18.56 |
||
|
7
|
7
33551-SJA-013 Lamp unitL. TAIL 7C400146 - |
33551-SJA-013 |
US $789.76 |
||
|
7
|
7
33551-SJA-003 Lamp unitL. TAIL 00000000 - 7C400145 |
33551-SJA-003 |
US $839.68 |
||
|
8
|
8
33555-SJA-A01 Bezel comp.L. |
33555-SJA-A01 |
US $18.56 |
||
|
9
|
9
34102-SJA-003 Lamp unit00000000 - 7C400175 |
34102-SJA-003 |
US $18.69 |
||
|
9
|
9
34102-SJA-013 Lamp unit7C400176 - |
34102-SJA-013 |
US $14.34 |
||
|
10
|
10
34103-S2K-003 BulbWEDGE (12V 5W) |
34103-S2K-003 |
US $3.57 |
||
| replacement | |||||
|
10
|
10
33301-SA0-741 Bulb (12V 5W)(12V 5W) (STANLEY) |
33301-SA0-741 |
from US $2.37 |
||
|
11
|
11
34270-SJA-003 Light assyHIGH MOUNT STOP 00000000 - 7C400185 |
34270-SJA-003 |
US $204.80 |
||
|
11
|
11
34270-SJA-013 Light assyHIGH MOUNT STOP 7C400186 - |
34270-SJA-013 |
US $158.72 |
||
|
12
|
12
34273-SJA-000ZA Cover assy.HIGH MOUNT STOP LIGHT *NH425L* |
34273-SJA-000ZA |
US $124.80 |
||
|
12
|
12
34273-SJA-000ZC Cover assy.HIGH MOUNT STOP LIGHT *YR240L* |
34273-SJA-000ZC |
US $124.80 |
||
|
12
|
12
34273-SJA-000ZB Cover assy.HIGH MOUNT STOP LIGHT *NH556L* |
34273-SJA-000ZB |
US $124.80 |
||
|
13
|
13
74890-SJA-J02ZD Garnish assyRR. LICENSE *NH658P* |
74890-SJA-J02ZD |
US $221.44 |
||
|
13
|
13
74890-SJA-J02ZH Garnish assyRR. LICENSE *YR538M* |
74890-SJA-J02ZH |
US $221.44 |
||
|
13
|
13
74890-SJA-J02ZA Garnish assyRR. LICENSE *B532P* |
74890-SJA-J02ZA |
US $221.44 |
||
|
13
|
13
74890-SJA-J02ZC Garnish assyRR. LICENSE *NH624P* |
74890-SJA-J02ZC |
US $221.44 |
||
|
13
|
13
74890-SJA-J02ZJ Garnish assyRR. LICENSE *NH727M* |
74890-SJA-J02ZJ |
US $221.44 |
||
|
13
|
13
74890-SJA-J02ZB Garnish assyRR. LICENSE *B92P* |
74890-SJA-J02ZB |
US $221.44 |
||
|
14
|
14
74892-SJA-A01 Seal aRUBBER (610MM) |
74892-SJA-A01 |
US $5.18 |
||
|
15
|
15
74892-SJA-A11 Seal eRUBBER (82MM) |
74892-SJA-A11 |
US $1.54 |
||
|
16
|
16
74893-SJA-A01 Seal bRUBBER (167MM) |
74893-SJA-A01 |
US $1.75 |
||
|
17
|
17
74893-SJA-A11 Seal fRUBBER (183MM) |
74893-SJA-A11 |
US $3.01 |
||
|
18
|
18
74894-SJA-A01
Tape a
|
74894-SJA-A01 |
— | ||
|
19
|
19
74894-SJA-A11
Tape e
|
74894-SJA-A11 |
— | ||
|
20
|
20
74895-SJA-A11 Seal gRUBBER (60MM) |
74895-SJA-A11 |
US $1.75 |
||
|
21
|
21
74895-S5A-000 BoltSPECIAL, 5MM |
74895-S5A-000 |
US $2.31 |
||
|
22
|
22
74896-SJA-A01 Seal cRUBBER (65MM) |
74896-SJA-A01 |
US $1.26 |
||
|
23
|
23
74897-SJA-A01
Tape c
|
74897-SJA-A01 |
— | ||
|
24
|
24
74898-SJA-A01 Seal dRUBBER (BLACK) |
74898-SJA-A01 |
US $1.40 |
||
|
25
|
25
74899-SJA-A01
Tape d
|
74899-SJA-A01 |
— | ||
|
26
|
26
75523-SS0-000 PackingSEAL |
75523-SS0-000 |
US $0.98 |
||
|
27
|
27
90001-S10-010 Bolt-washer5X16 |
90001-S10-010 |
US $1.89 |
||
|
28
|
28
90150-S04-003 BoltEARTH, 6X16 |
90150-S04-003 |
US $1.88 |
||
|
29
|
29
90158-SJA-A00 ScrewTAPPING, 4X12 |
90158-SJA-A00 |
US $1.75 |
||
|
30
|
30
90321-S2X-003 NutSPECIAL, 5MM |
90321-S2X-003 |
US $1.82 |
||
|
31
|
31
90650-SJA-003 GrommetRR. COMBINATION |
90650-SJA-003 |
US $1.82 |
||
|
32
|
32
90662-693-003 GrommetSCREW, 4MM (BLUE) |
90662-693-003 |
US $1.68 |
||
|
33
|
33
90666-SJA-003 ClipSNAP FITTING |
90666-SJA-003 |
US $3.80 |
||
|
34
|
34
90672-SW5-003 Nut |
90672-SW5-003 |
US $1.07 |
||
|
35
|
35
91511-SJA-A01 ClipLICENSE GARNISH |
91511-SJA-A01 |
US $2.31 |
||
|
36
|
36
91560-S9A-A11 ClipPILLAR GARNISH (LIGHT GREEN) |
91560-S9A-A11 |
US $1.19 |
||
|
37
|
37
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
