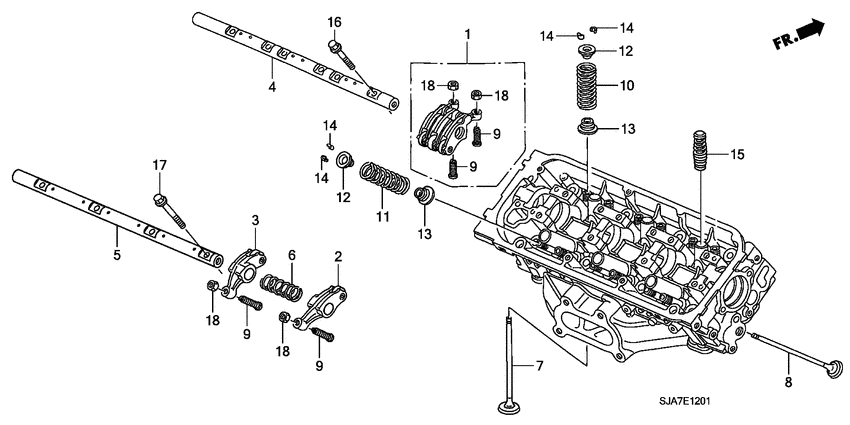

Valve/rocker arm (REAR; -'08) Diagram Honda LEGEND
- Year
- 2007
- Model code
- LEGEND
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14620-P8A-A01 Arm assy.INTAKE ROCKER |
14620-P8A-A01 |
from US $118.40 |
||
|
2
|
2
14626-P8A-A00 Arm comp. aEX. ROCKER |
14626-P8A-A00 |
from US $22.14 |
||
|
3
|
3
14627-P8A-A00 Arm comp. bEX. ROCKER |
14627-P8A-A00 |
from US $22.14 |
||
|
4
|
4
14631-P8A-A00 Shaft comp.INTAKE ROCKER ARM |
14631-P8A-A00 |
US $132.24 |
||
|
5
|
5
14632-RCA-A00 Shaft comp.EX. ROCKER ARM |
14632-RCA-A00 |
US $122.96 |
||
|
6
|
6
14645-P8A-A01 SpringROCKER ARM |
14645-P8A-A01 |
US $1.94 |
||
|
7
|
7
14711-RJA-000 ValveIN. |
14711-RJA-000 |
from US $19.31 |
||
|
8
|
8
14721-PXK-000 Valve |
14721-PXK-000 |
US $65.38 |
||
|
9
|
9
14744-PT0-004 ScrewTAPPET ADJUSTING |
14744-PT0-004 |
from US $3.40 |
||
|
10
|
10
14761-RJA-003
Spring
|
14761-RJA-003 |
— | ||
|
11
|
11
14762-RJA-003
Spring
|
14762-RJA-003 |
— | ||
|
12
|
12
14765-RDV-J00 RetainerVALVE SPRING |
14765-RDV-J00 |
from US $2.17 |
||
|
13
|
13
14775-PM3-000 SeatVALVE SPRING |
14775-PM3-000 |
from US $2.29 |
||
|
14
|
14
14781-RGM-A01 CotterVALVE (FUJI VALVE) |
14781-RGM-A01 |
from US $2.89 |
||
|
15
|
15
14820-P8F-A01 Motion compLOST |
14820-P8F-A01 |
from US $8.70 |
||
|
16
|
16
90003-P8A-A00 BoltFLANGE, 8X30 |
90003-P8A-A00 |
from US $1.61 |
||
|
17
|
17
90004-P8A-A00 BoltFLANGE, 8X40 |
90004-P8A-A00 |
from US $1.61 |
||
|
18
|
18
90206-PT0-004 NutTAPPET ADJUSTING |
90206-PT0-004 |
from US $1.18 |
