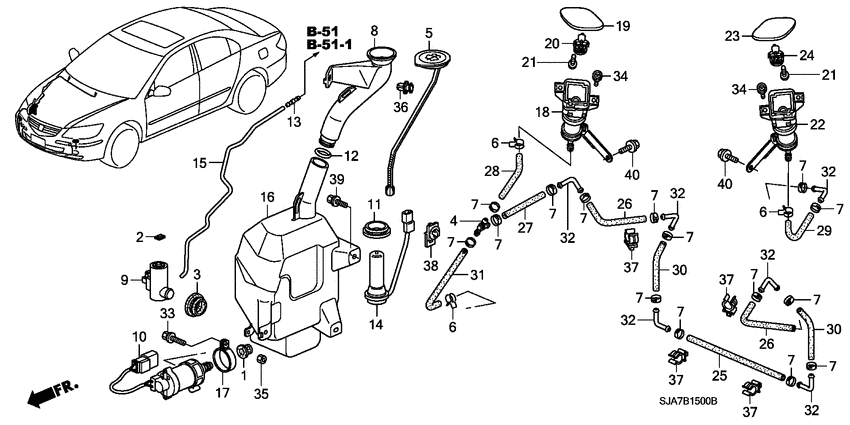

Windshield washer/ headlight washer (-'08) Diagram Honda LEGEND
- Year
- 2007
- Model code
- LEGEND
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38514-692-731 Bush |
38514-692-731 |
from US $3.26 |
||
|
2
|
2
38516-SA5-671 PackingT-TYPE) (MITSUBA |
38516-SA5-671 |
US $2.60 |
||
|
3
|
3
38519-SB0-003 BushWASHER TANK (MITSUBA) |
38519-SB0-003 |
from US $2.97 |
||
|
4
|
4
38581-671-631 JointTUBE |
38581-671-631 |
US $7.28 |
||
|
5
|
5
76802-SJA-004 Cap unitMOUTH |
76802-SJA-004 |
US $4.27 |
||
|
6
|
6
76803-SE1-S03 ClipWASHER HOSE |
76803-SE1-S03 |
US $1.96 |
||
|
7
|
7
76803-SH2-S10 ClipWASHER HOSE |
76803-SH2-S10 |
US $2.38 |
||
|
8
|
8
76805-SJA-G01 HoseWASHER |
76805-SJA-G01 |
US $23.04 |
||
|
9
|
9
76806-SL0-E01
Motor
|
76806-SL0-E01 |
— | ||
| replacement | |||||
|
9
|
9
76806-SL0-E11 MotorWASHER (HIGH) (MITSUBA) |
76806-SL0-E11 |
from US $37.54 |
||
|
10
|
10
76806-S5A-S01 PumpWASHER |
76806-S5A-S01 |
US $92.16 |
||
|
11
|
11
76809-SE0-003 GrommetWASHER TANK |
76809-SE0-003 |
US $2.65 |
||
|
12
|
12
76809-S9A-003 Packing |
76809-S9A-003 |
from US $0.83 |
||
|
13
|
13
76829-SM4-003 Joint iWASHER |
76829-SM4-003 |
US $3.57 |
||
|
14
|
14
76835-SP0-A11 SensorLEVEL |
76835-SP0-A11 |
from US $52.48 |
||
|
15
|
15
76837-SJA-C01
Tube
|
76837-SJA-C01 |
— | ||
|
16
|
16
76841-SJA-C01
Tank
|
76841-SJA-C01 |
— | ||
|
17
|
17
76845-SEA-S01 BracketWASHER MOTOR |
76845-SEA-S01 |
US $5.32 |
||
|
18
|
18
76880-SJA-G01 Actuator assyR. HEADLIGHT WASHER |
76880-SJA-G01 |
US $227.12 |
||
|
19
|
19
76882-SJA-G01ZH CaseR. NOZZLE *NH727M* |
76882-SJA-G01ZH |
US $57.26 |
||
|
19
|
19
76882-SJA-G01ZB CaseR. NOZZLE *B532P* |
76882-SJA-G01ZB |
US $53.89 |
||
|
19
|
19
76882-SJA-G01ZK CaseR. NOZZLE *YR538M* |
76882-SJA-G01ZK |
US $49.02 |
||
|
19
|
19
76882-SJA-G01ZD CaseR. NOZZLE *NH624P* |
76882-SJA-G01ZD |
US $53.89 |
||
|
19
|
19
76882-SJA-G01ZC CaseR. NOZZLE *B92P* |
76882-SJA-G01ZC |
US $53.89 |
||
|
19
|
19
76882-SJA-G01ZE CaseR. NOZZLE *NH658P* |
76882-SJA-G01ZE |
US $53.89 |
||
|
20
|
20
76883-SJA-G01 Nozzle assy.HEADLIGHT WASHER |
76883-SJA-G01 |
US $12.58 |
||
|
21
|
21
76883-S7A-S01 Screw |
76883-S7A-S01 |
US $0.81 |
||
|
22
|
22
76885-SJA-G01
Actuator assy
|
76885-SJA-G01 |
— | ||
|
23
|
23
76887-SJA-G01ZH CaseL. NOZZLE *NH727M* |
76887-SJA-G01ZH |
US $53.89 |
||
|
23
|
23
76887-SJA-G01ZB CaseL. NOZZLE *B532P* |
76887-SJA-G01ZB |
US $53.89 |
||
|
23
|
23
76887-SJA-G01ZK
Case
|
76887-SJA-G01ZK |
— | ||
|
23
|
23
76887-SJA-G01ZD CaseL. NOZZLE *NH624P* |
76887-SJA-G01ZD |
US $49.02 |
||
|
23
|
23
76887-SJA-G01ZC
Case
|
76887-SJA-G01ZC |
— | ||
|
23
|
23
76887-SJA-G01ZE CaseL. NOZZLE *NH658P* |
76887-SJA-G01ZE |
US $53.89 |
||
|
24
|
24
76888-SJA-G01 Nozzle assy.HEADLIGHT WASHER |
76888-SJA-G01 |
US $11.90 |
||
|
25
|
25
76891-S7A-S01 Hose a |
76891-S7A-S01 |
US $9.66 |
||
|
26
|
26
76892-SJA-C41 Hose110-60 |
76892-SJA-C41 |
US $3.22 |
||
|
27
|
27
76892-SJA-G01 Hose130 |
76892-SJA-G01 |
US $3.36 |
||
|
28
|
28
76893-SH3-S00 Hose c |
76893-SH3-S00 |
US $4.20 |
||
|
29
|
29
76893-SJA-G01 Hose |
76893-SJA-G01 |
US $5.74 |
||
|
30
|
30
76893-S7A-S01 Hose b |
76893-S7A-S01 |
US $2.17 |
||
|
31
|
31
76894-SV2-E03
Hose
|
76894-SV2-E03 |
— | ||
|
32
|
32
76895-S10-S01 Joint l |
76895-S10-S01 |
US $3.78 |
||
|
33
|
33
90118-SEA-S01 Bolt-washer6X20 |
90118-SEA-S01 |
US $1.33 |
||
|
34
|
34
90132-SEA-003 ScrewPAN, 5X12 |
90132-SEA-003 |
US $4.64 |
||
|
35
|
35
90316-SM5-G03 NutHEX., 6MM |
90316-SM5-G03 |
US $1.12 |
||
|
36
|
36
91512-SX0-003 ClipINNER FENDER CLIP |
91512-SX0-003 |
from US $2.44 |
||
|
37
|
37
91561-SP0-G01 ClipHEADLIGHT WASHER HOSE |
91561-SP0-G01 |
US $1.96 |
||
|
38
|
38
91565-SD5-003 ClipCOUPLER(NATURAL) |
91565-SD5-003 |
US $1.61 |
||
|
39
|
39
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
40
|
40
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
