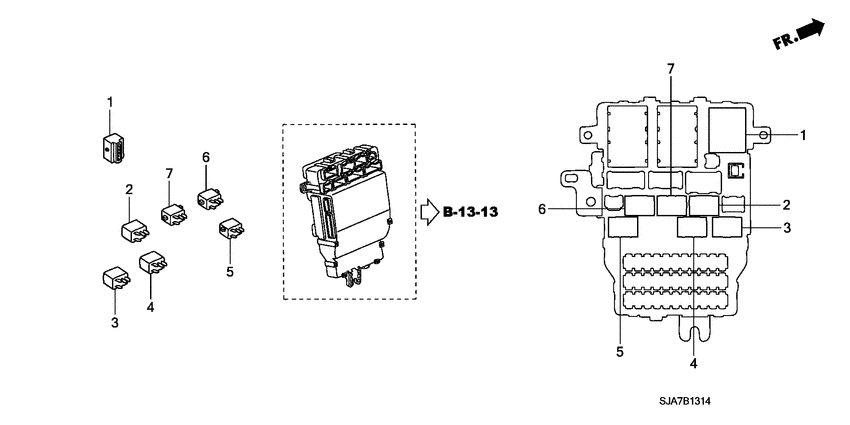

Control unit (CABIN; RH; 2) Diagram Honda LEGEND
- Year
- 2010
- Model code
- LEGEND
- Sales region
- General
- Engine
- J37A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KE
- right-hand drive
- +
- ihcc
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38300-SDA-A01 Relay assyTURN SIGNAL & HAZARD(MITSUBA) |
38300-SDA-A01 |
US $43.14 |
||
|
1
|
1
38300-SDA-A02 Relay assyTURN SIGNAL & HAZARD(DENSO) |
38300-SDA-A02 |
US $51.97 |
||
|
2
|
2
39794-SDA-A05 Relay assyPOWER(MICRO ISO) (MITSUBA) |
39794-SDA-A05 |
from US $16.18 |
||
|
3
|
3
39794-SDA-A02 Relay assyPOWER(MICRO ISO) (DENSO) |
39794-SDA-A02 |
US $19.45 |
||
|
3
|
3
39794-SDA-A05 Relay assyPOWER(MICRO ISO) (MITSUBA) |
39794-SDA-A05 |
from US $16.18 |
||
|
4
|
4
39794-SDA-A05 Relay assyPOWER(MICRO ISO) (MITSUBA) |
39794-SDA-A05 |
from US $16.18 |
||
|
5
|
5
39794-SDA-004 RELAY ASSY., FUEL PUMP (DENSO)FUEL PUMP (DENSO) |
39794-SDA-004 |
from US $17.68 |
||
|
5
|
5
39794-SDA-003 Relay assyFUEL PUMP (MITSUBA) |
39794-SDA-003 |
US $19.07 |
||
|
6
|
6
39794-SDA-902 Relay assy, ENGINE CONTROL MODULE (DENSO) |
39794-SDA-902 |
from US $16.18 |
||
|
6
|
6
39794-SDA-901
Relay assy, ENGINE CONTROL MODULE (MITSUBA)
|
39794-SDA-901 |
— | ||
| replacement | |||||
|
6
|
6
39794-SDA-902 Relay assy, ENGINE CONTROL MODULE (DENSO) |
39794-SDA-902 |
from US $16.18 |
||
|
7
|
7
39794-SDA-901
Relay assy, ENGINE CONTROL MODULE (MITSUBA)
|
39794-SDA-901 |
— | ||
| replacement | |||||
|
7
|
7
39794-SDA-902 Relay assy, ENGINE CONTROL MODULE (DENSO) |
39794-SDA-902 |
from US $16.18 |
||
|
7
|
7
39794-SDA-902 Relay assy, ENGINE CONTROL MODULE (DENSO) |
39794-SDA-902 |
from US $16.18 |
||
