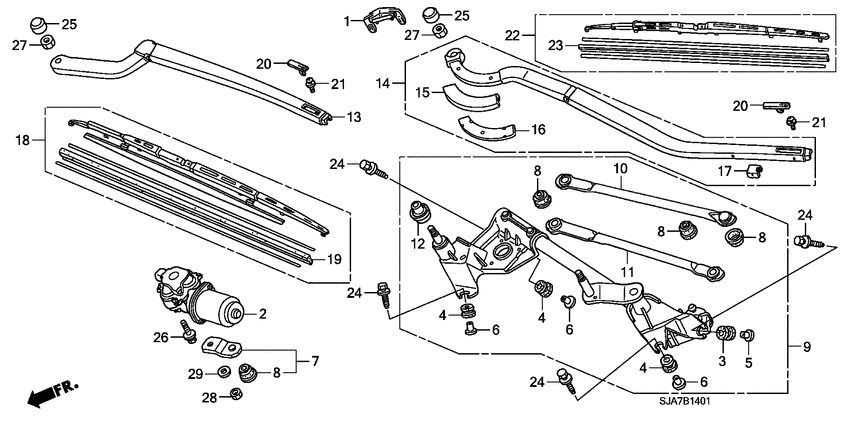

Front windshield wiper (RH) Diagram Honda LEGEND
- Year
- 2010
- Model code
- LEGEND
- Sales region
- General
- Engine
- J37A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KE
- right-hand drive
- +
- ihcc
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74215-SJA-003 CoverWIPER ARM UPPER |
74215-SJA-003 |
US $7.56 |
||
|
2
|
2
76505-SJA-E01 Motor compFR. WIPER(RH) |
76505-SJA-E01 |
US $261.12 |
||
|
3
|
3
76516-SEL-T01 RubberMOUNTING |
76516-SEL-T01 |
US $2.38 |
||
|
4
|
4
76516-SM4-003 RubberMOUNTING |
76516-SM4-003 |
US $2.73 |
||
|
5
|
5
76517-SEL-T01 Collar |
76517-SEL-T01 |
US $2.38 |
||
|
6
|
6
76517-SM4-003 Collar |
76517-SM4-003 |
US $1.82 |
||
|
7
|
7
76520-SJA-A01 Link assy. a |
76520-SJA-A01 |
US $12.88 |
||
|
8
|
8
76524-SL0-A01 Dust seal |
76524-SL0-A01 |
US $3.29 |
||
|
9
|
9
76530-SJA-E01 Link compFR. WIPER(RH) |
76530-SJA-E01 |
US $222.72 |
||
|
10
|
10
76540-SJA-A01 Rod unit a |
76540-SJA-A01 |
US $15.62 |
||
|
11
|
11
76550-SJA-J01 Rod unit b |
76550-SJA-J01 |
US $17.28 |
||
|
12
|
12
76561-SEA-003 CapPIVOT |
76561-SEA-003 |
US $4.62 |
||
|
13
|
13
76600-SJA-E02 ArmWINDSHIELD WIPER (DRIVER SIDE) |
76600-SJA-E02 |
US $142.08 |
||
|
14
|
14
76610-SJA-J01 ArmWINDSHIELD WIPER (PASSENGER SIDE) |
76610-SJA-J01 |
US $145.92 |
||
|
15
|
15
76611-SJA-J01
Support cover
|
76611-SJA-J01 |
— | ||
|
16
|
16
76612-SJA-J01
Support cover
|
76612-SJA-J01 |
— | ||
|
17
|
17
76613-SJA-A01
Stabilizer
|
76613-SJA-A01 |
— | ||
|
18
|
18
76620-SJA-E11 BladeWINDSHIELD WIPER(700MM) |
76620-SJA-E11 |
US $126.72 |
||
|
19
|
19
76622-SJA-A01 Rubber, BLADE(700MM) |
76622-SJA-A01 |
US $14.65 |
||
|
20
|
20
76625-SJA-A01 CoverSHANK |
76625-SJA-A01 |
US $5.04 |
||
|
21
|
21
76626-SJA-A01 ScrewWASHER(4X6) |
76626-SJA-A01 |
US $1.30 |
||
|
22
|
22
76630-SJA-J01 BladeWINDSHIELD WIPER(475MM) |
76630-SJA-J01 |
US $78.08 |
||
|
23
|
23
76632-SJA-A01
Rubber
|
76632-SJA-A01 |
— | ||
| replacement | |||||
|
23
|
23
76632-S5A-003 Rubber, BLADE (475MM) |
76632-S5A-003 |
US $11.40 |
||
|
24
|
24
90126-SR3-000 Bolt-washer6X32 |
90126-SR3-000 |
US $1.26 |
||
|
25
|
25
91611-SDA-A00 CapFR. WIPER ARM (12MM) |
91611-SDA-A00 |
from US $1.89 |
||
|
26
|
26
93402-060-140-8 Bolt-washer6X14 |
93402-060-140-8 |
from US $0.52 |
||
|
27
|
27
94001-120-800-S NutHEX., 12MM |
94001-120-800-S |
from US $0.59 |
||
|
28
|
28
94031-10080 NutHEX., 10MM |
94031-10080 |
US $0.52 |
||
|
29
|
29
94111-10800 WasherSPRING, 10MM |
94111-10800 |
from US $0.44 |
||
