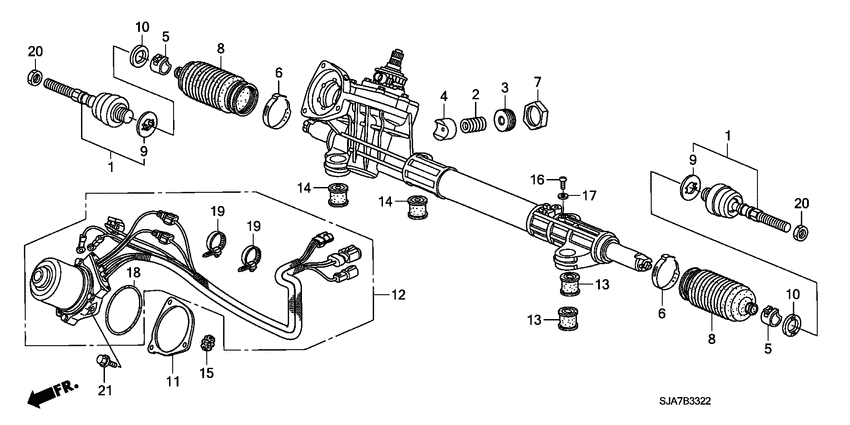

P.s. gear box components (EPS) Diagram Honda LEGEND
- Year
- 2010
- Model code
- LEGEND
- Sales region
- General
- Engine
- J37A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KE
- right-hand drive
- +
- ihcc
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53010-SJA-900 End setRACK |
53010-SJA-900 |
US $73.60 |
||
|
2
|
2
53413-SD4-951
Spring
|
53413-SD4-951 |
— | ||
|
3
|
3
53414-SJA-N00 ScrewRACK GUIDE |
53414-SJA-N00 |
US $25.34 |
||
|
4
|
4
53416-SJA-N01 Guide compSTEERING RACK |
53416-SJA-N01 |
US $41.86 |
||
|
5
|
5
53434-SJA-N01 ClipSTEERING TIE ROD |
53434-SJA-N01 |
US $2.87 |
||
|
6
|
6
53449-SJA-N01 BandBELLOWS |
53449-SJA-N01 |
US $4.62 |
||
|
7
|
7
53458-SJA-N00 NutRACK SCREW LOCK |
53458-SJA-N00 |
US $25.34 |
||
|
8
|
8
53534-SJA-N00 Dust sealTIE ROD |
53534-SJA-N00 |
US $33.54 |
||
|
9
|
9
53536-SJA-N01
Washer
|
53536-SJA-N01 |
— | ||
|
10
|
10
53537-SJA-N01 RubberSTOPPER |
53537-SJA-N01 |
US $9.24 |
||
|
11
|
11
53609-SJA-N00 PlateSPACER |
53609-SJA-N00 |
US $33.54 |
||
|
12
|
12
53680-SJA-E90 Motor assy. |
53680-SJA-E90 |
US $4,465.92 |
||
|
13
|
13
53684-SJA-E51 BushSTEERING GEAR BOX MOUNTING |
53684-SJA-E51 |
US $21.63 |
||
|
14
|
14
53685-SJA-E51 BushGEAR BOX MOUNTING |
53685-SJA-E51 |
US $21.63 |
||
|
15
|
15
53691-SJA-N00 BushMOTOR |
53691-SJA-N00 |
US $7.56 |
||
|
16
|
16
90103-S0A-N01 ScrewPAN, 5X8 |
90103-S0A-N01 |
US $0.91 |
||
|
17
|
17
90428-S0A-003
Washer
|
90428-S0A-003 |
— | ||
|
18
|
18
91355-SJA-N01 O-ring79.5X2(NOK) |
91355-SJA-N01 |
US $4.13 |
||
|
19
|
19
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
20
|
20
94001-140-800-S NutHEX., 14MM |
94001-140-800-S |
from US $0.78 |
||
|
21
|
21
95701-080-300-8 BoltFLANGE, 8X30 |
95701-080-300-8 |
from US $0.74 |
