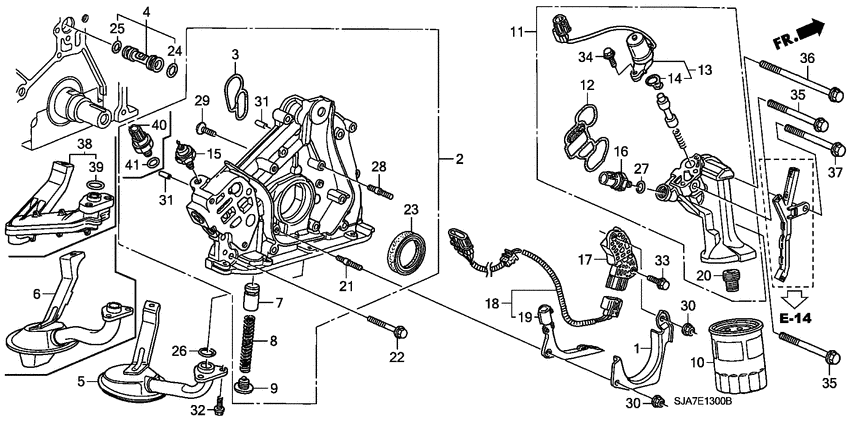

Oil pump Diagram Honda LEGEND
- Year
- 2010
- Model code
- LEGEND
- Sales region
- General
- Engine
- J37A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14535-RCA-A00 PlateTIMING BELT STOPPER |
14535-RCA-A00 |
US $6.44 |
||
|
2
|
2
15100-RKG-003 Pump assy.OIL(YAMADA) |
15100-RKG-003 |
US $203.52 |
||
|
3
|
3
15115-P8A-A01 PackingOIL HOLE |
15115-P8A-A01 |
from US $3.26 |
||
|
4
|
4
15150-R72-A00 Joint assy.OIL PIPE |
15150-R72-A00 |
US $15.23 |
||
|
6
|
6
15220-RJA-E00
Strainer comp.
|
15220-RJA-E00 |
— | ||
|
7
|
7
15231-PE0-000 ValveRELIEF |
15231-PE0-000 |
from US $5.93 |
||
|
8
|
8
15232-RKG-003
Spring
|
15232-RKG-003 |
— | ||
|
9
|
9
15233-R70-A01 BoltSEALING, 18MM |
15233-R70-A01 |
US $2.73 |
||
|
10
|
10
15400-RTA-004
Cartridge
|
15400-RTA-004 |
— | ||
| replacements | |||||
|
10
|
10
15400-PLM-A02 OIL FILTER (HONEYWELL) |
15400-PLM-A02 |
from US $8.10 |
||
|
10
|
10
15400-RTA-003 OIL FILTER (MAHLE TENNEX) |
15400-RTA-003 |
US $16.32 |
||
|
11
|
11
15811-RYE-A01
Valve assy.
|
15811-RYE-A01 |
— | ||
|
12
|
12
15825-P8A-A01 Filter assySPOOL VALVE |
15825-P8A-A01 |
from US $19.80 |
||
|
13
|
13
36171-RYE-A01
Solenoid assy.
|
36171-RYE-A01 |
— | ||
|
14
|
14
36172-P8A-A01 PackingSOLENOID BASE |
36172-P8A-A01 |
from US $2.95 |
||
|
16
|
16
37250-PR3-003 Switch assyVALVE TIMING OIL PRESSURE |
37250-PR3-003 |
US $95.58 |
||
|
17
|
17
37500-RCA-A01 Sensor assyCRANK(1-2) |
37500-RCA-A01 |
from US $190.72 |
||
|
18
|
18
37501-RCA-A01
Sub harness
|
37501-RCA-A01 |
— | ||
|
19
|
19
37503-RCA-A00 HolderCRANK SENSOR HARNESS |
37503-RCA-A00 |
US $6.16 |
||
|
20
|
20
90015-PH1-013 HolderOIL FILTER |
90015-PH1-013 |
from US $3.26 |
||
|
21
|
21
92900-06016-1B BoltSTUD, 6X16 |
92900-06016-1B |
US $0.59 |
||
|
22
|
22
90051-P8A-A00 BoltFLANGE, 6X35 (SEAL) |
90051-P8A-A00 |
US $1.33 |
||
|
23
|
23
91212-R70-A02 Oil seal (auto)41X56X7 (NOK) |
91212-R70-A02 |
US $13.22 |
||
|
23
|
23
91212-R70-A01
Oil seal
|
91212-R70-A01 |
— | ||
| replacement | |||||
|
23
|
23
91212-R70-A02 Oil seal (auto)41X56X7 (NOK) |
91212-R70-A02 |
US $13.22 |
||
|
24
|
24
91308-P8A-A01 O-ring18.3X3.5 |
91308-P8A-A01 |
from US $2.44 |
||
|
25
|
25
91309-P8A-A01 O-ring16.3X3.5 |
91309-P8A-A01 |
from US $2.44 |
||
|
26
|
26
91310-PH7-000 O-ring19.8X2.4 |
91310-PH7-000 |
from US $2.15 |
||
|
27
|
27
91319-PR3-000
O-ring
00000000 - 2000053 |
91319-PR3-000 |
— | ||
| replacement | |||||
|
27
|
27
91319-PR3-003 O-ring13X1.5 (ARAI) 00000000 - 2000053 |
91319-PR3-003 |
from US $2.44 |
||
|
27
|
27
91319-PAA-A01 O-ring13X1.5 2000054 - |
91319-PAA-A01 |
from US $2.32 |
||
|
28
|
28
92900-06018-1B BoltSTUD, 6X18 |
92900-06018-1B |
from US $0.59 |
||
|
29
|
29
93600-060-160-A ScrewFLAT, 6X16 |
93600-060-160-A |
from US $0.44 |
||
|
30
|
30
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
31
|
31
94301-06100 Dowel pin6X10 |
94301-06100 |
from US $0.89 |
||
|
32
|
32
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
33
|
33
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
34
|
34
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.34 |
||
|
35
|
35
95701-080-500-8 BoltFLANGE, 8X50 |
95701-080-500-8 |
from US $0.81 |
||
|
36
|
36
95701-080-750-8 BoltFLANGE, 8X75 |
95701-080-750-8 |
from US $0.89 |
||
|
37
|
37
95701-080-550-7 BoltFLANGE, 8X55 |
95701-080-550-7 |
from US $0.81 |
||
|
40
|
40
37240-R72-A01 Switch assyOIL PRESSURE |
37240-R72-A01 |
US $31.79 |
||
|
41
|
41
91319-R70-A01 O-ring10.2X1.9 |
91319-R70-A01 |
from US $1.61 |
||
