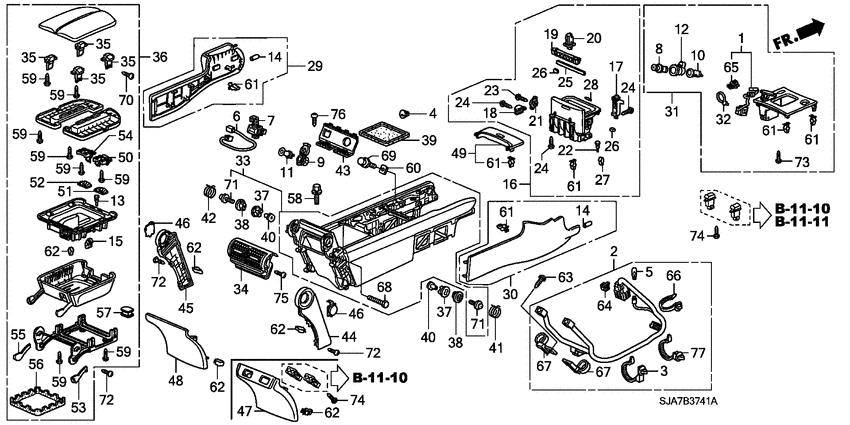

Console ('09-) Diagram Honda LEGEND
- Year
- 2010
- Model code
- LEGEND
- Sales region
- General
- Engine
- J37A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32113-SJA-000
Sub cord
|
32113-SJA-000 |
— | ||
|
2
|
2
32114-SJA-E01
Sub cord
|
32114-SJA-E01 |
— | ||
|
4
|
4
34254-S3N-003 Lamp assy.GLOVE BOX |
34254-S3N-003 |
US $7.56 |
||
|
5
|
5
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
6
|
6
39114-SJA-003 Cord assyUSB-A |
39114-SJA-003 |
US $51.71 |
||
|
7
|
7
39115-TL0-G01 Holder assy.USB CORD |
39115-TL0-G01 |
US $9.24 |
||
|
8
|
8
39610-SJA-003 Knob assy |
39610-SJA-003 |
from US $9.52 |
||
|
9
|
9
39620-SEC-A01 Cap assy. |
39620-SEC-A01 |
US $5.88 |
||
|
10
|
10
39620-S2K-003
Socket assy
|
39620-S2K-003 |
— | ||
|
11
|
11
39624-SZ3-L01 Socket assy |
39624-SZ3-L01 |
from US $10.71 |
||
|
12
|
12
39630-SJA-J01 Ring assyTYPE INCLUDING BULB |
39630-SJA-J01 |
US $13.44 |
||
|
13
|
13
66418-579-000 StopperGLOVE BOX LID |
66418-579-000 |
US $8.40 |
||
|
14
|
14
66844-SA7-000 CapINSTRUMENT PANEL STAY |
66844-SA7-000 |
US $4.07 |
||
|
15
|
15
77205-S0X-A01 ClipSNAP FITTING |
77205-S0X-A01 |
from US $1.66 |
||
|
16
|
16
77230-SJA-J14ZA Holder assy.CUP *NH730L* AC400002 - |
77230-SJA-J14ZA |
US $300.80 |
||
|
16
|
16
77230-SJA-J14ZB Holder assy.CUP *YR323L* AC400002 - |
77230-SJA-J14ZB |
US $300.80 |
||
|
16
|
16
77230-SJA-J13ZB
Holder assy.
00000000 - AC400001 |
77230-SJA-J13ZB |
— | ||
|
16
|
16
77230-SJA-J13ZA
Holder assy.
00000000 - AC400001 |
77230-SJA-J13ZA |
— | ||
|
17
|
17
77231-SJA-003 Button assy. |
77231-SJA-003 |
US $10.92 |
||
|
18
|
18
77235-SJA-003
Striker
|
77235-SJA-003 |
— | ||
|
19
|
19
77236-SJA-003 CoverRR. |
77236-SJA-003 |
US $7.98 |
||
|
20
|
20
77237-SJA-003 Latch |
77237-SJA-003 |
US $8.26 |
||
|
21
|
21
77238-SJA-003 Damper a |
77238-SJA-003 |
US $5.04 |
||
|
22
|
22
77239-SJA-003 Cushion |
77239-SJA-003 |
US $1.68 |
||
|
23
|
23
77271-SJA-003 Screw2X4 |
77271-SJA-003 |
US $1.33 |
||
|
24
|
24
77272-SJA-003 ScrewTAPPING, 3X8 |
77272-SJA-003 |
US $1.40 |
||
|
25
|
25
77274-SJA-003 Cushion b |
77274-SJA-003 |
US $1.68 |
||
|
26
|
26
77277-SJA-003 Cushion e |
77277-SJA-003 |
US $1.68 |
||
|
27
|
27
77278-SJA-003 ClipSNAP FIT |
77278-SJA-003 |
US $2.03 |
||
|
28
|
28
77279-SJA-003 Label |
77279-SJA-003 |
US $2.87 |
||
|
29
|
29
77285-SJA-A03ZB Cover assy.FR. DRIVER CONSOLE *NH556L* AC400018 - |
77285-SJA-A03ZB |
US $56.58 |
||
|
29
|
29
77285-SJA-A02ZD
Cover assy.
00000000 - AC400017 |
77285-SJA-A02ZD |
— | ||
|
29
|
29
77285-SJA-A02ZE
Cover assy.
00000000 - AC400017 |
77285-SJA-A02ZE |
— | ||
|
29
|
29
77285-SJA-A03ZE Cover assy.FR. DRIVER CONSOLE *YR385L* AC400018 - |
77285-SJA-A03ZE |
US $56.58 |
||
|
29
|
29
77285-SJA-A02ZB
Cover assy.
00000000 - AC400017 |
77285-SJA-A02ZB |
— | ||
|
29
|
29
77285-SJA-A03ZD Cover assy.FR. DRIVER CONSOLE *NH690L* AC400018 - |
77285-SJA-A03ZD |
US $56.58 |
||
|
30
|
30
77286-SJA-G02ZB Cover assy.FR. PASSENGER CONSOLE *NH556L* AC400024 - |
77286-SJA-G02ZB |
US $56.58 |
||
|
30
|
30
77286-SJA-G02ZF Cover assy.FR. PASSENGER CONSOLE *YR385L* AC400024 - |
77286-SJA-G02ZF |
US $56.58 |
||
|
30
|
30
77286-SJA-G01ZB
Cover assy.
00000000 - AC400023 |
77286-SJA-G01ZB |
— | ||
|
30
|
30
77286-SJA-G01ZF
Cover assy.
00000000 - AC400023 |
77286-SJA-G01ZF |
— | ||
|
30
|
30
77286-SJA-G01ZD Cover assy.FR. PASSENGER CONSOLE *NH690L* 00000000 - AC400023 |
77286-SJA-G01ZD |
US $56.83 |
||
|
30
|
30
77286-SJA-G02ZD Cover assy.FR. PASSENGER CONSOLE *NH690L* AC400024 - |
77286-SJA-G02ZD |
US $56.58 |
||
|
31
|
31
77296-SJA-J41ZB Panel assy.CENTER CONSOLE *YR323L* |
77296-SJA-J41ZB |
US $314.88 |
||
|
31
|
31
77296-SJA-J41ZA Panel assy.CENTER CONSOLE *NH730L* |
77296-SJA-J41ZA |
US $314.88 |
||
|
32
|
32
77297-SJA-A41 Band |
77297-SJA-A41 |
US $2.03 |
||
|
33
|
33
83402-SJA-043ZH Box compCONSOLE *TYPEF* AC400018 - |
83402-SJA-043ZH |
US $367.36 |
||
|
33
|
33
83402-SJA-033ZG
Box comp
00000000 - AC400017 |
83402-SJA-033ZG |
— | ||
|
33
|
33
83402-SJA-033ZH
Box comp
00000000 - AC400017 |
83402-SJA-033ZH |
— | ||
|
33
|
33
83402-SJA-033ZF
Box comp
00000000 - AC400017 |
83402-SJA-033ZF |
— | ||
|
33
|
33
83402-SJA-043ZG Box compCONSOLE *TYPEB* AC400018 - |
83402-SJA-043ZG |
US $367.36 |
||
|
33
|
33
83402-SJA-043ZF Box compCONSOLE *TYPEA* AC400018 - |
83402-SJA-043ZF |
US $367.36 |
||
|
34
|
34
83403-SJA-043ZE Garnish comp.CONSOLE OUTLET *YR372L* |
83403-SJA-043ZE |
US $39.94 |
||
|
34
|
34
83403-SJA-043ZD Garnish comp.CONSOLE OUTLET *NH690L* |
83403-SJA-043ZD |
US $39.94 |
||
|
34
|
34
83403-SJA-043ZB Garnish comp.CONSOLE OUTLET *NH556L* |
83403-SJA-043ZB |
US $39.94 |
||
|
35
|
35
83404-SJA-003 Arm compHINGE |
83404-SJA-003 |
US $6.16 |
||
|
36
|
36
83405-SJA-043ZG Armrest comp.CENTER (SYNTHETIC LEATHER) *TYPEB* AC400018 - |
83405-SJA-043ZG |
US $549.12 |
||
|
36
|
36
83405-SJA-033ZG
Armrest comp.
00000000 - AC400017 |
83405-SJA-033ZG |
— | ||
|
36
|
36
83405-SJA-043ZF Armrest comp.CENTER (SYNTHETIC LEATHER) *TYPEA* AC400018 - |
83405-SJA-043ZF |
US $549.12 |
||
|
36
|
36
83405-SJA-033ZF
Armrest comp.
00000000 - AC400017 |
83405-SJA-033ZF |
— | ||
|
36
|
36
83405-SJA-033ZH
Armrest comp.
00000000 - AC400017 |
83405-SJA-033ZH |
— | ||
|
36
|
36
83405-SJA-043ZH Armrest comp.CENTER (SYNTHETIC LEATHER) *TYPEF* AC400018 - |
83405-SJA-043ZH |
US $549.12 |
||
|
37
|
37
83411-SJA-013 BushBOX SIDE |
83411-SJA-013 |
US $4.13 |
||
|
38
|
38
83412-SJA-003
Stopper
|
83412-SJA-003 |
— | ||
|
39
|
39
83413-SJA-J01 MatCONSOLE BOX |
83413-SJA-J01 |
US $12.46 |
||
|
40
|
40
83414-SJA-003 BushHINGE |
83414-SJA-003 |
US $4.13 |
||
|
41
|
41
83415-SJA-003
Spring
|
83415-SJA-003 |
— | ||
|
42
|
42
83416-SJA-003
Spring
|
83416-SJA-003 |
— | ||
|
43
|
43
83417-SJA-013ZE GarnishUSB *YR372L* |
83417-SJA-013ZE |
US $7.84 |
||
|
43
|
43
83417-SJA-013ZD GarnishUSB *NH690L* |
83417-SJA-013ZD |
US $7.84 |
||
|
43
|
43
83417-SJA-013ZB GarnishUSB *NH556L* |
83417-SJA-013ZB |
US $7.84 |
||
|
44
|
44
83431-SJA-013ZE GarnishR. SIDE CONSOLE *YR372L* |
83431-SJA-013ZE |
US $36.74 |
||
|
44
|
44
83431-SJA-013ZD GarnishR. SIDE CONSOLE *NH690L* |
83431-SJA-013ZD |
US $36.74 |
||
|
44
|
44
83431-SJA-013ZB GarnishR. SIDE CONSOLE *NH556L* |
83431-SJA-013ZB |
US $36.74 |
||
|
45
|
45
83432-SJA-013ZE GarnishL. SIDE CONSOLE *YR372L* |
83432-SJA-013ZE |
US $36.74 |
||
|
45
|
45
83432-SJA-013ZD GarnishL. SIDE CONSOLE *NH690L* |
83432-SJA-013ZD |
US $36.74 |
||
|
45
|
45
83432-SJA-013ZB GarnishL. SIDE CONSOLE *NH556L* |
83432-SJA-013ZB |
US $36.74 |
||
|
46
|
46
83433-SJA-003ZB GarnishRING SIDE *NH556L* |
83433-SJA-003ZB |
US $14.46 |
||
|
46
|
46
83433-SJA-003ZE GarnishRING SIDE *YR372L* |
83433-SJA-003ZE |
US $14.46 |
||
|
46
|
46
83433-SJA-003ZD GarnishRING SIDE *NH690L* |
83433-SJA-003ZD |
US $14.46 |
||
|
48
|
48
83435-SJA-013ZB GarnishCONSOLE *NH690L* AC400018 - |
83435-SJA-013ZB |
US $39.94 |
||
|
48
|
48
83435-SJA-003ZB
Garnish
00000000 - AC400017 |
83435-SJA-003ZB |
— | ||
|
48
|
48
83435-SJA-013ZA GarnishCONSOLE *NH556L* AC400018 - |
83435-SJA-013ZA |
US $39.94 |
||
|
48
|
48
83435-SJA-013ZD GarnishCONSOLE *YR372L* AC400018 - |
83435-SJA-013ZD |
US $39.94 |
||
|
48
|
48
83435-SJA-003ZD
Garnish
00000000 - AC400017 |
83435-SJA-003ZD |
— | ||
|
48
|
48
83435-SJA-003ZA
Garnish
00000000 - AC400017 |
83435-SJA-003ZA |
— | ||
|
49
|
49
83440-SJA-013ZE GarnishCENTER CONSOLE *YR372L* |
83440-SJA-013ZE |
US $14.46 |
||
|
49
|
49
83440-SJA-013ZD GarnishCENTER CONSOLE *NH690L* |
83440-SJA-013ZD |
US $14.46 |
||
|
49
|
49
83440-SJA-013ZB GarnishCENTER CONSOLE *NH556L* |
83440-SJA-013ZB |
US $14.46 |
||
|
50
|
50
83450-SJA-013ZA Arm compR. LOCK LID *NH167L* |
83450-SJA-013ZA |
US $7.70 |
||
|
51
|
51
83451-SJA-003 CoverR. LOCK |
83451-SJA-003 |
US $3.01 |
||
|
52
|
52
83452-SJA-003 CoverL. LOCK |
83452-SJA-003 |
US $3.01 |
||
|
53
|
53
83454-SJA-003ZE CoverR. ARMREST BRACKET *YR372L* |
83454-SJA-003ZE |
US $10.92 |
||
|
53
|
53
83454-SJA-003ZD CoverR. ARMREST BRACKET *NH690L* |
83454-SJA-003ZD |
US $10.92 |
||
|
53
|
53
83454-SJA-003ZB CoverR. ARMREST BRACKET *NH556L* |
83454-SJA-003ZB |
US $10.92 |
||
|
54
|
54
83455-SJA-013ZA ARM, L. LOCK LID *NH167L* |
83455-SJA-013ZA |
US $10.91 |
||
|
55
|
55
83456-SJA-003ZD CoverL. ARMREST BRACKET *NH690L* |
83456-SJA-003ZD |
US $10.92 |
||
|
55
|
55
83456-SJA-003ZB CoverL. ARMREST BRACKET *NH556L* |
83456-SJA-003ZB |
US $10.92 |
||
|
55
|
55
83456-SJA-003ZE CoverL. ARMREST BRACKET *YR372L* |
83456-SJA-003ZE |
US $10.92 |
||
|
56
|
56
83457-SJA-003 LipTRAY |
83457-SJA-003 |
US $39.94 |
||
|
57
|
57
83458-SJA-003ZE RingTRAY *YR372L* |
83458-SJA-003ZE |
US $6.30 |
||
|
57
|
57
83458-SJA-003ZD RingTRAY *NH690L* |
83458-SJA-003ZD |
US $6.30 |
||
|
57
|
57
83458-SJA-003ZB RingTRAY *NH556L* |
83458-SJA-003ZB |
US $6.30 |
||
|
58
|
58
90123-SJA-000 Bolt-washer6X16 |
90123-SJA-000 |
US $1.05 |
||
|
59
|
59
90146-SP0-000 ScrewTAPPING, 4X12 (PO) |
90146-SP0-000 |
US $0.98 |
||
|
60
|
60
90305-SM4-000 NutAIR SPOILER CLIP |
90305-SM4-000 |
from US $1.40 |
||
|
61
|
61
90666-SDA-A01 ClipSNAP FITTING(PO) (NATURAL) |
90666-SDA-A01 |
from US $2.70 |
||
|
62
|
62
90666-S84-A01 ClipSNAP FITTING |
90666-S84-A01 |
from US $0.88 |
||
|
64
|
64
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
65
|
65
91534-STK-003 ClipCOUPLER(NATURAL) (WITH SEAL) |
91534-STK-003 |
US $2.31 |
||
|
66
|
66
91540-TA0-003 ClipHARNESS BAND(NATURAL) (100.1MM) |
91540-TA0-003 |
from US $0.46 |
||
|
68
|
68
92301-05028-0H BoltRECESSED, 5X28 |
92301-05028-0H |
US $0.52 |
||
|
69
|
69
93404-060-160-8 Bolt-washer6X16 |
93404-060-160-8 |
from US $0.52 |
||
|
70
|
70
93891-040-080-8 Screw-washer4X8 |
93891-040-080-8 |
from US $0.44 |
||
|
71
|
71
93894-050-160-8 Screw-washer5X16 |
93894-050-160-8 |
from US $0.44 |
||
|
72
|
72
93903-22220 ScrewTAPPING, 3X10 |
93903-22220 |
from US $0.37 |
||
|
73
|
73
93903-32320 ScrewTAPPING, 3X12 |
93903-32320 |
from US $0.37 |
||
|
75
|
75
93905-22220 ScrewTAPPING, 3X10 |
93905-22220 |
US $0.37 |
||
|
76
|
76
93913-14180 ScrewTAPPING, 4X10 (PO) |
93913-14180 |
from US $0.37 |
||
|
77
|
77
91507-SNA-003 ClipHARNESS BAND(BROWN) (164.5MM) |
91507-SNA-003 |
from US $0.90 |
