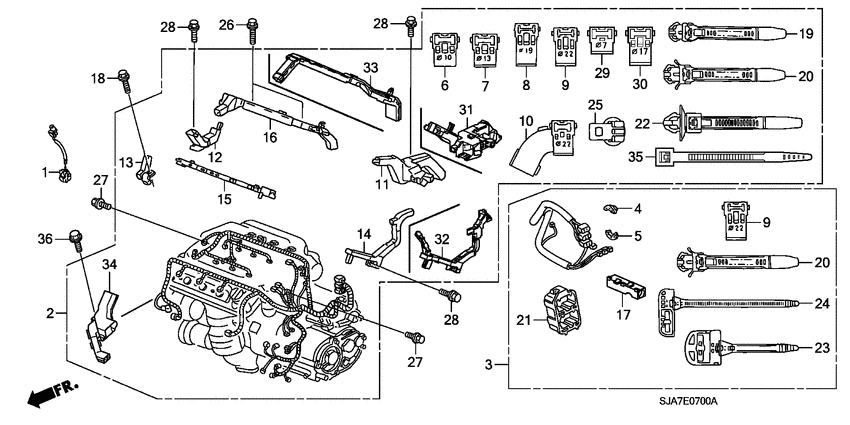

Engine wire harness (LH) Diagram Honda LEGEND
- Year
- 2010
- Model code
- LEGEND
- Sales region
- General
- Engine
- J37A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30531-R70-A00
Sub cord
|
30531-R70-A00 |
— | ||
|
2
|
2
32110-RKG-A50 HarnessENGINE WIRE |
32110-RKG-A50 |
US $1,047.04 |
||
|
3
|
3
32112-RKG-G50
Sub harness
|
32112-RKG-G50 |
— | ||
|
4
|
4
32113-RFE-003 Collar aHARNESS GROMMET |
32113-RFE-003 |
US $3.22 |
||
|
5
|
5
32114-RFE-003 Collar bHARNESS GROMMET |
32114-RFE-003 |
US $2.87 |
||
|
7
|
7
32116-RKG-003 HolderCORRUGATED (DARK GREEN) (13MM) |
32116-RKG-003 |
US $1.89 |
||
|
9
|
9
32124-R60-003 HolderCORRUGATED (DARK BROWN) (22MM) |
32124-R60-003 |
US $1.61 |
||
|
10
|
10
32119-RKG-003 HolderCORRUGATED(DARK BROWN) (22MM) |
32119-RKG-003 |
US $10.92 |
||
|
12
|
12
32130-R70-A00 Holder comp. dENGINE HARNESS |
32130-R70-A00 |
US $10.22 |
||
|
15
|
15
32132-R70-A00 Holder fWIRE HARNESS |
32132-R70-A00 |
US $11.90 |
||
|
17
|
17
32137-RJA-G50 HolderELECTRONIC CONTROL MODULE SUB HARNESS |
32137-RJA-G50 |
US $100.48 |
||
|
19
|
19
91506-RTA-003 Clip AHARNESS BAND (DARK VIOLET)(129.4MM) |
91506-RTA-003 |
US $3.26 |
||
|
20
|
20
91507-RTA-003 Clip bHARNESS BAND (DARK GREEN) (129.4MM) |
91507-RTA-003 |
from US $2.31 |
||
|
21
|
21
91555-RAA-A01 HolderCOUPLER |
91555-RAA-A01 |
US $5.46 |
||
|
22
|
22
91558-P8C-A01 ClipHARNESS BAND (VIOLET) (150MM) |
91558-P8C-A01 |
US $1.89 |
||
|
23
|
23
91559-PAA-A01 ClipHARNESS BAND(GRAY) (150MM) |
91559-PAA-A01 |
US $2.31 |
||
|
24
|
24
91559-RCA-A01 ClipHARNESS BAND(DARK GRAY) (150MM) |
91559-RCA-A01 |
US $2.59 |
||
|
25
|
25
91565-SEL-003 ClipCOUPLER(BLACK) |
91565-SEL-003 |
from US $1.70 |
||
|
26
|
26
93404-060-250-8 Bolt-washer6X25 |
93404-060-250-8 |
from US $0.62 |
||
|
27
|
27
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
28
|
28
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
29
|
29
32107-R70-A01 HolderCORRUGATED (DARK BROWN) (7MM) |
32107-R70-A01 |
US $1.61 |
||
|
30
|
30
32116-R40-003 HolderCORRUGATED(DARK BROWN) (17MM) |
32116-R40-003 |
US $1.61 |
||
|
31
|
31
32129-RKG-A50 Holder comp. cENGINE HARNESS |
32129-RKG-A50 |
US $50.05 |
||
|
32
|
32
32131-RKG-A50 Holder comp. eENGINE HARNESS |
32131-RKG-A50 |
US $38.40 |
||
|
33
|
33
32133-RKG-A00 Holder comp. gENGINE HARNESS |
32133-RKG-A00 |
US $48.38 |
||
|
34
|
34
32134-R70-A00 Holder comp. hENGINE HARNESS |
32134-R70-A00 |
US $7.56 |
||
|
35
|
35
91551-PNA-003 BandWIRE HARNESS (BLACK) (172MM) |
91551-PNA-003 |
from US $1.61 |
||
|
36
|
36
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
