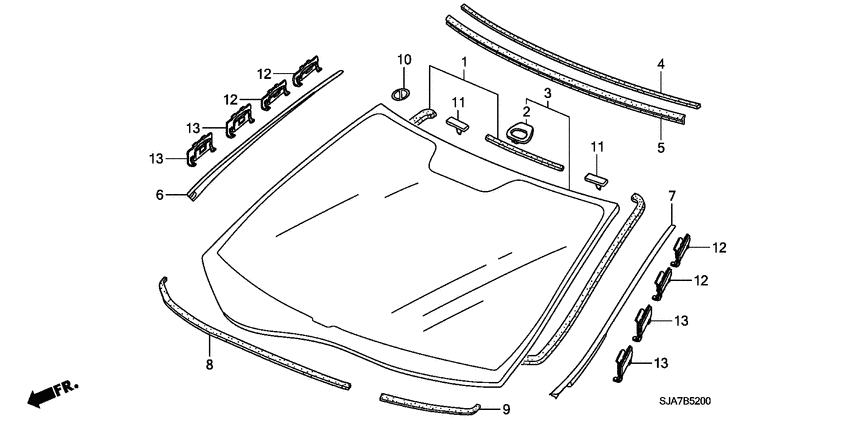

Front windshield Diagram Honda LEGEND
- Year
- 2010
- Model code
- LEGEND
- Sales region
- General
- Engine
- J37A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04731-SJA-000 Rubber setFR. WINDSHIELD DAM |
04731-SJA-000 |
US $38 |
||
|
2
|
2
38981-SJA-J01 BaseRAIN SENSOR COVER |
38981-SJA-J01 |
US $33.54 |
||
|
3
|
3
73111-SJA-G10 Glass setFR. WINDSHIELD (GREEN)(AGC) |
73111-SJA-G10 |
US $1,451.52 |
||
|
4
|
4
73125-SJA-000 SealFR. WINDSHIELD UPPER |
73125-SJA-000 |
US $11.23 |
||
|
5
|
5
73150-SJA-003 MoldingFR. WINDSHIELD |
73150-SJA-003 |
US $64.63 |
||
|
6
|
6
73152-SJA-A01ZA Garnish assyR. FR. WINDSHIELD SIDE *NH555* |
73152-SJA-A01ZA |
US $145.11 |
||
|
7
|
7
73162-SJA-A01ZA Garnish assyL. FR. WINDSHIELD SIDE *NH555* |
73162-SJA-A01ZA |
US $145.11 |
||
|
8
|
8
77466-SJA-020 Seal aFR. INSTRUMENT |
77466-SJA-020 |
US $19.75 |
||
|
9
|
9
77467-SJA-000 Seal bFR. INSTRUMENT |
77467-SJA-000 |
US $5.37 |
||
|
11
|
11
91568-SDA-A01 ClipWINDSHIELD UPPER |
91568-SDA-A01 |
from US $2.97 |
||
|
12
|
12
91573-SJA-A01
Clip A
00000000 - AC400043 |
91573-SJA-A01 |
— | ||
|
12
|
12
91573-SJA-A02 Clip AFR. SIDE GARNISH AC400044 - |
91573-SJA-A02 |
US $7.70 |
||
|
13
|
13
91574-SJA-A01
Clip b
00000000 - AC400043 |
91574-SJA-A01 |
— | ||
|
13
|
13
91574-SJA-A02 Clip bFR. SIDE GARNISH AC400044 - |
91574-SJA-A02 |
US $8.82 |
