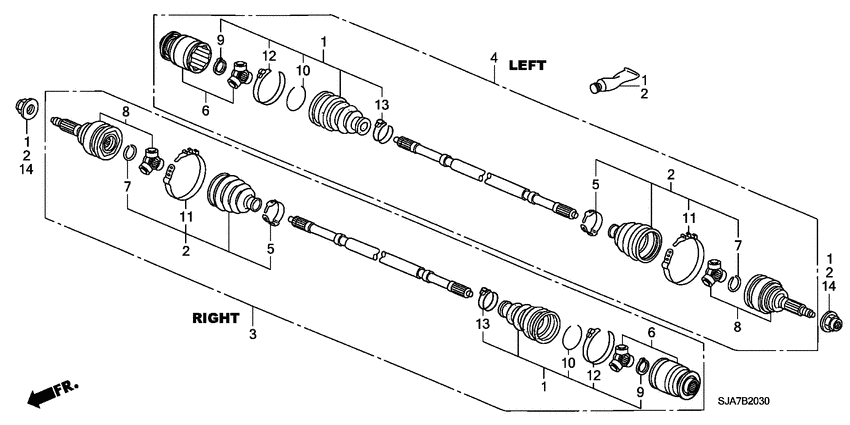

Rear driveshaft Diagram Honda LEGEND
- Year
- 2010
- Model code
- LEGEND
- Sales region
- General
- Engine
- J37A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42017-SJA-003 Boot setINBOARD |
42017-SJA-003 |
US $56.58 |
||
|
2
|
2
42018-SJA-003 Boot setOUTBOARD |
42018-SJA-003 |
US $56.58 |
||
|
3
|
3
42310-SJA-003 Driveshaft assy.R. |
42310-SJA-003 |
US $651.52 |
||
|
4
|
4
42311-SJA-003 Driveshaft assy.L. |
42311-SJA-003 |
US $651.52 |
||
|
5
|
5
42317-SJA-003 BandSHAFT BOOT |
42317-SJA-003 |
US $5.32 |
||
|
6
|
6
42320-SJA-315 Joint compINBOARD |
42320-SJA-315 |
US $316.16 |
||
|
7
|
7
42327-SJA-003 RingSNAP |
42327-SJA-003 |
US $2.31 |
||
|
8
|
8
42330-SJA-315 Joint compOUTBOARD |
42330-SJA-315 |
US $316.16 |
||
|
9
|
9
42337-SJA-003 Circlip |
42337-SJA-003 |
US $2.59 |
||
|
10
|
10
44316-S3V-A01 RingSNAP |
44316-S3V-A01 |
US $3.78 |
||
|
11
|
11
44327-SJA-003 BandOUTBOARD BOOT |
44327-SJA-003 |
US $7.56 |
||
|
12
|
12
44327-SV4-305 BandJOINT BOOT (DOUBLE ROLLED BAND) |
44327-SV4-305 |
from US $7.25 |
||
|
13
|
13
44329-SV4-305 BandSHAFT BOOT (DOUBLE ROLLED BAND) |
44329-SV4-305 |
from US $5.92 |
||
|
14
|
14
90305-SD4-003 NutSPINDLE (24MM) |
90305-SD4-003 |
from US $6.35 |
