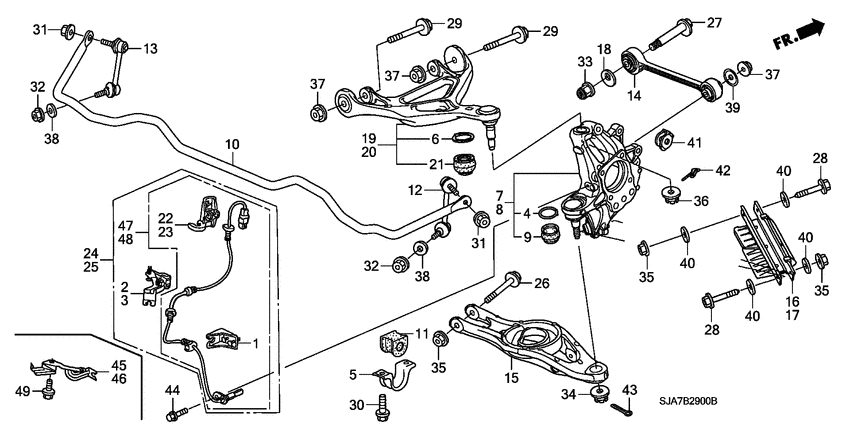

Rear lower arm Diagram Honda LEGEND
- Year
- 2010
- Model code
- LEGEND
- Sales region
- General
- Engine
- J37A
- transmission
- 5AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42516-SJA-003 Clamp aRR. WIRE |
42516-SJA-003 |
US $6.44 |
||
|
4
|
4
51226-SL0-003 CirclipLOWER BALL |
51226-SL0-003 |
US $3.29 |
||
|
5
|
5
51308-SJA-900 BracketFR. STABILIZER |
51308-SJA-900 |
US $6.30 |
||
|
6
|
6
51456-SL0-003 CirclipUPPER BALL |
51456-SL0-003 |
US $3.29 |
||
|
7
|
7
52210-SJA-010 Knuckle compR. RR. |
52210-SJA-010 |
US $318.72 |
||
|
8
|
8
52215-SJA-010 Knuckle compL. RR. |
52215-SJA-010 |
US $318.72 |
||
|
9
|
9
52225-SJA-003 BootRR. LOWER BALL DUST |
52225-SJA-003 |
US $11.20 |
||
|
10
|
10
52300-SJA-E01
Spring
|
52300-SJA-E01 |
— | ||
|
11
|
11
52306-SJA-E01 BushRR. STABILIZER HOLDER |
52306-SJA-E01 |
from US $9.24 |
||
|
12
|
12
52320-SJA-013 Link compR. RR. STABILIZER |
52320-SJA-013 |
US $65.28 |
||
|
13
|
13
52321-SJA-013 Link compL. RR. STABILIZER |
52321-SJA-013 |
US $65.28 |
||
|
14
|
14
52340-SJA-000 Arm compRR. CONTROL |
52340-SJA-000 |
US $103.68 |
||
|
15
|
15
52350-SJA-000 Arm comp. bRR. LOWER |
52350-SJA-000 |
US $234.24 |
||
|
16
|
16
52370-SJA-A01 Arm comp. aR. RR. LOWER |
52370-SJA-A01 |
US $177.92 |
||
|
17
|
17
52380-SJA-A01 Arm comp. aL. RR. LOWER |
52380-SJA-A01 |
US $189.04 |
||
|
18
|
18
52387-SJA-010 PlateCAM(M12) |
52387-SJA-010 |
from US $4.06 |
||
|
19
|
19
52390-SJA-013 Arm compR. RR. UPPER |
52390-SJA-013 |
US $262.40 |
||
|
20
|
20
52400-SJA-013 Arm compL. RR. UPPER |
52400-SJA-013 |
US $262.40 |
||
|
21
|
21
52454-SJA-003 BootRR. UPPER DUST |
52454-SJA-003 |
US $9.24 |
||
|
22
|
22
57451-SJA-003 BracketR. RR. COUPLER |
57451-SJA-003 |
US $5.74 |
||
|
23
|
23
57452-SJA-003 BracketL. RR. COUPLER |
57452-SJA-003 |
US $5.74 |
||
|
26
|
26
90170-SJA-000 BoltFLANGE, 14X112 |
90170-SJA-000 |
US $6.44 |
||
|
27
|
27
90178-SJA-000 BoltRR. CONTROL ARM ADJUST |
90178-SJA-000 |
US $8.26 |
||
|
28
|
28
90186-SJA-010 BoltFLANGE, 14X105 |
90186-SJA-010 |
US $7.56 |
||
|
29
|
29
90187-SJA-000 BoltFLANGE, 12X95 |
90187-SJA-000 |
US $4.62 |
||
|
30
|
30
90190-SJA-000 Bolt-washer10X27 |
90190-SJA-000 |
US $1.75 |
||
|
31
|
31
90306-SB2-013 NutSELF-LOCK, 10MM (CLINCH) |
90306-SB2-013 |
US $3.02 |
||
|
32
|
32
90361-SJA-000 NutSELF-LOCK, 10MM(NYLON) |
90361-SJA-000 |
US $4.04 |
||
|
33
|
33
90362-SJA-000 NutSELF-LOCK, 12MM (NYLON) |
90362-SJA-000 |
US $3.36 |
||
|
34
|
34
90363-SJA-000 NutCASTLE, 14MM |
90363-SJA-000 |
US $6.72 |
||
|
35
|
35
90364-SJA-000 NutSELF-LOCK, 14MM |
90364-SJA-000 |
US $3.18 |
||
|
36
|
36
90365-SJA-000 NutCASTLE, 12MM |
90365-SJA-000 |
from US $5.48 |
||
|
37
|
37
90370-SJA-000 NutSELF-LOCK, 12MM(CLINCH) |
90370-SJA-000 |
from US $2.45 |
||
|
38
|
38
90511-SJA-000
Washer
|
90511-SJA-000 |
— | ||
|
39
|
39
90551-SJA-000
Washer
|
90551-SJA-000 |
— | ||
|
40
|
40
90555-SJA-000
Washer
|
90555-SJA-000 |
— | ||
|
41
|
41
90652-SJA-000 ClipRR. KNUCKLE |
90652-SJA-000 |
US $3.22 |
||
|
42
|
42
90701-SX0-003 ClipUPPER ARM |
90701-SX0-003 |
US $2.44 |
||
|
43
|
43
94201-30252 PinSPLIT, 3.0 |
94201-30252 |
from US $1.33 |
||
|
44
|
44
90100-SHJ-A00 BoltFLANGE, 6X16.5 |
90100-SHJ-A00 |
from US $1.39 |
||
|
45
|
45
42518-SJA-A00 Bracket bR. RR. WIRE |
42518-SJA-A00 |
US $6.44 |
||
|
46
|
46
42519-SJA-A00 Bracket bL. RR. WIRE |
42519-SJA-A00 |
US $6.44 |
||
|
47
|
47
57470-SJA-A02 Sensor assyR. RR. |
57470-SJA-A02 |
US $128 |
||
|
48
|
48
57475-SJA-A02 Sensor assyL. RR. |
57475-SJA-A02 |
US $128 |
||
|
49
|
49
95701-080-120-5 BoltFLANGE, 8X12 |
95701-080-120-5 |
US $0.59 |
