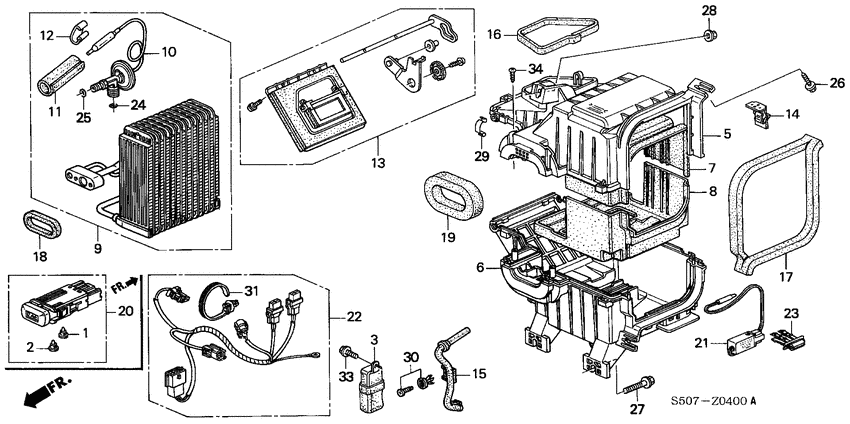

Air conditioner (COOLING UNIT; LH) Diagram Honda LOGO
- Year
- 1999
- Model code
- LOGO
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- LOGO
- area code
- KG
- left-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35851-SM4-003 BulbNEO WEDGE (14V 60MA) (TEC) |
35851-SM4-003 |
from US $2.96 |
||
|
2
|
2
35851-SS0-003 BulbNEO WEDGE (14V 60MA) |
35851-SS0-003 |
US $3.50 |
||
|
3
|
3
39795-S50-003 Relay assyPOWER (4P, NO SPL) |
39795-S50-003 |
US $39.04 |
||
|
5
|
5
80201-S50-G01
Case
|
80201-S50-G01 |
— | ||
|
6
|
6
80202-S2H-Y01 CaseEVAPORATOR LOWER |
80202-S2H-Y01 |
US $33.15 |
||
|
7
|
7
80205-S2H-G01 InsulatorEVAPORATOR UPPER |
80205-S2H-G01 |
US $15.10 |
||
|
8
|
8
80206-S2H-G01 InsulatorEVAPORATOR LOWER |
80206-S2H-G01 |
US $15.10 |
||
|
9
|
9
80210-S2H-G01 Evaporator sub assy. |
80210-S2H-G01 |
US $312.32 |
||
|
10
|
10
80220-S50-003
Valve assy.
|
80220-S50-003 |
— | ||
|
11
|
11
80224-SW5-003 InsulatorEXPANSION |
80224-SW5-003 |
US $5.60 |
||
|
12
|
12
80225-SR3-010 Clamp |
80225-SR3-010 |
US $2.38 |
||
|
13
|
13
80250-S50-G01
Link assy
|
80250-S50-G01 |
— | ||
|
14
|
14
80251-S50-003 ClipCABLE (5MM) |
80251-S50-003 |
US $1.61 |
||
|
15
|
15
80271-S50-000 HoseDRAIN |
80271-S50-000 |
US $10.36 |
||
|
16
|
16
80286-S50-003 SealEVAPORATOR INNER |
80286-S50-003 |
US $3.29 |
||
|
17
|
17
80287-S50-003 SealEVAPORATOR OUTER |
80287-S50-003 |
US $6.30 |
||
|
18
|
18
80288-S2H-003 SealEVAPORATOR JOINT |
80288-S2H-003 |
US $4.20 |
||
|
19
|
19
80288-S50-003 SealFLANGE |
80288-S50-003 |
US $11.20 |
||
|
20
|
20
80410-S50-003ZA
Switch assy
|
80410-S50-003ZA |
— | ||
|
21
|
21
80430-S50-003
Thermostat
|
80430-S50-003 |
— | ||
|
22
|
22
80460-S50-010 HarnessAIR CONDITIONER WIRE |
80460-S50-010 |
US $76.16 |
||
|
23
|
23
80566-S30-003 ClipEVAPORATOR SENSOR |
80566-S30-003 |
US $2.45 |
||
|
24
|
24
80872-S50-000
O-ring
|
80872-S50-000 |
— | ||
| replacement | |||||
|
24
|
24
80872-S5A-003 O-ring1/2" |
80872-S5A-003 |
from US $2.04 |
||
|
25
|
25
80873-S50-000 O-ring8MM |
80873-S50-000 |
from US $2.28 |
||
|
26
|
26
90155-SE0-003 ScrewTAPPING, 6X20 |
90155-SE0-003 |
US $1.54 |
||
|
27
|
27
90156-SH3-000 Bolt-washer6X24 |
90156-SH3-000 |
US $2.52 |
||
|
28
|
28
90321-SV4-003 Nut-washer6MM (PAINT CUTTING) |
90321-SV4-003 |
US $1.47 |
||
|
29
|
29
90659-692-000 ClampCASE |
90659-692-000 |
from US $2.10 |
||
|
30
|
30
91503-SP0-013 Clip ABUMPER |
91503-SP0-013 |
US $4.23 |
||
| replacement | |||||
|
30
|
30
91503-SP0-003 Clip A |
91503-SP0-003 |
from US $2.45 |
||
|
31
|
31
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $3.26 |
||
|
33
|
33
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
34
|
34
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
