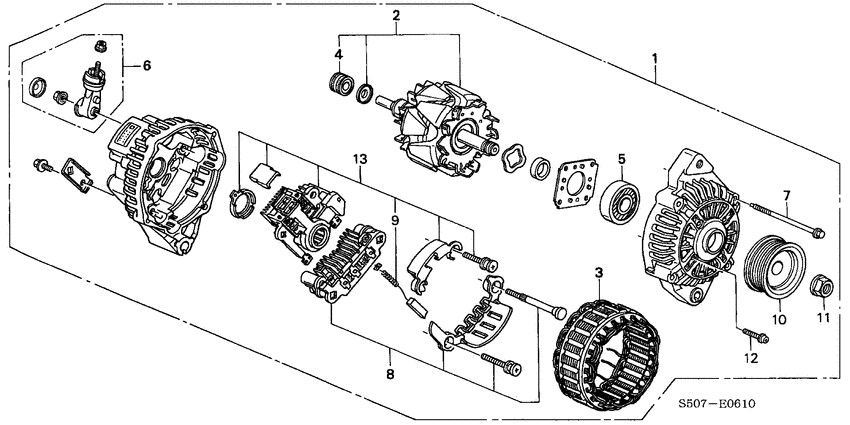

Alternator (MITSUBISHI) Diagram Honda LOGO
- Year
- 1999
- Model code
- LOGO
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- LOGO
- area code
- KG
- left-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-P7A-G01
Alternator assy
|
31100-P7A-G01 |
— | ||
|
2
|
2
31101-PEC-J71
Rotor assy.
|
31101-PEC-J71 |
— | ||
|
3
|
3
31102-PEC-J71
Stator
|
31102-PEC-J71 |
— | ||
|
4
|
4
31111-P08-J02 BearingRR. GENERATOR |
31111-P08-J02 |
from US $13.17 |
||
|
5
|
5
31114-P01-014 BearingFR. GENERATOR |
31114-P01-014 |
from US $12.60 |
||
|
6
|
6
31123-P08-J02
Terminal set
|
31123-P08-J02 |
— | ||
|
7
|
7
31125-P08-J02 BoltFLANGE |
31125-P08-J02 |
from US $2.38 |
||
|
8
|
8
31127-PEC-J71
Rectifier assy.
|
31127-PEC-J71 |
— | ||
|
9
|
9
31140-P64-902 Brush set |
31140-P64-902 |
from US $15.23 |
||
|
10
|
10
31141-P2E-A01
Pulley
|
31141-P2E-A01 |
— | ||
|
11
|
11
31142-P08-J02 Nut |
31142-P08-J02 |
US $1.68 |
||
|
12
|
12
31146-PE0-004 Screw |
31146-PE0-004 |
from US $1.47 |
||
|
13
|
13
31150-P2P-004 Regulator set |
31150-P2P-004 |
US $230.40 |
