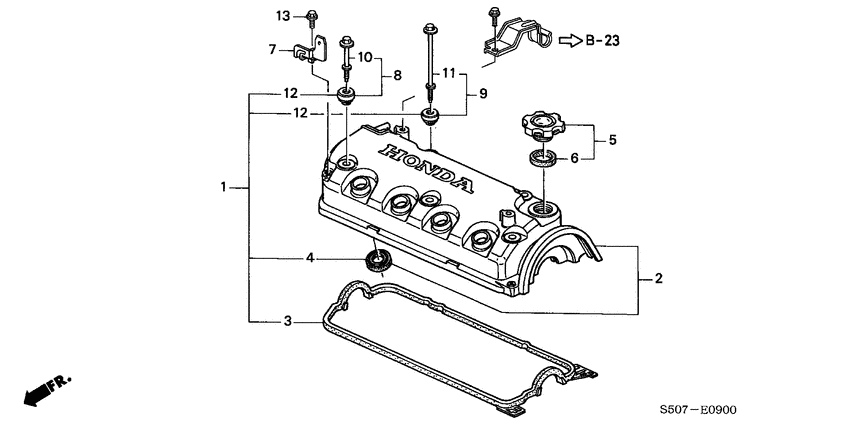

Cylinder head cover Diagram Honda LOGO
- Year
- 1999
- Model code
- LOGO
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- LOGO
- area code
- KG
- left-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12030-P2A-000 Packing setHEAD COVER |
12030-P2A-000 |
from US $64.78 |
||
|
2
|
2
12310-P3Y-G00 Cover comp.CYLINDER HEAD |
12310-P3Y-G00 |
US $172.80 |
||
|
3
|
3
12341-P2A-000 CYLINDER HEAD COVER GASKET |
12341-P2A-000 |
US $23.34 |
||
|
4
|
4
12342-P08-004 Seal |
12342-P08-004 |
from US $5.48 |
||
| replacement | |||||
|
4
|
4
12342-RYE-004 Seal,spark plug t |
12342-RYE-004 |
from US $8.53 |
||
|
5
|
5
15610-P2A-000 Cap assy.OIL FILLER |
15610-P2A-000 |
from US $17.41 |
||
|
6
|
6
15613-PC6-000 Packing, Oil Filler |
15613-PC6-000 |
from US $4 |
||
|
7
|
7
32761-P1H-E00
Stay a
|
32761-P1H-E00 |
— | ||
|
8
|
8
90011-P2A-000 Bolt comp. aHEAD COVER |
90011-P2A-000 |
US $7.70 |
||
|
9
|
9
90012-P2A-000 Bolt comp. bHEAD COVER |
90012-P2A-000 |
US $8.82 |
||
|
10
|
10
90013-P2A-000 Bolt aHEAD COVER |
90013-P2A-000 |
from US $4.34 |
||
|
11
|
11
90014-P2A-000 Bolt bHEAD COVER |
90014-P2A-000 |
from US $5.46 |
||
|
12
|
12
90442-P2A-000 Washer |
90442-P2A-000 |
US $3.96 |
||
|
13
|
13
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
