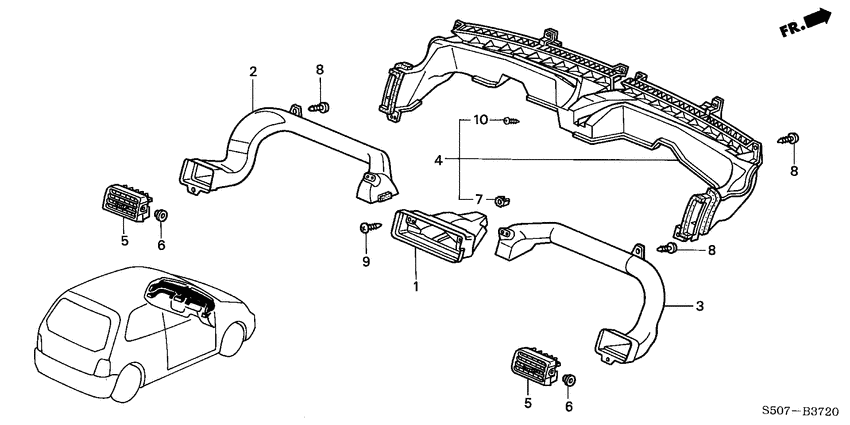

Duct (LH) Diagram Honda LOGO
- Year
- 1999
- Model code
- LOGO
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- LOGO
- area code
- KG
- left-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77410-S50-G00
Duct
|
77410-S50-G00 |
— | ||
|
2
|
2
77420-S50-G00
Duct
|
77420-S50-G00 |
— | ||
|
3
|
3
77430-S50-G00
Duct
|
77430-S50-G00 |
— | ||
|
4
|
4
77450-S50-G01
Duct assy
|
77450-S50-G01 |
— | ||
|
5
|
5
77620-S50-003ZA
Fin assy.
|
77620-S50-003ZA |
— | ||
|
6
|
6
77625-S50-003
Bush
|
77625-S50-003 |
— | ||
|
7
|
7
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
8
|
8
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
|
9
|
9
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
10
|
10
93913-24220 ScrewTAPPING, 4X12 |
93913-24220 |
from US $0.23 |
