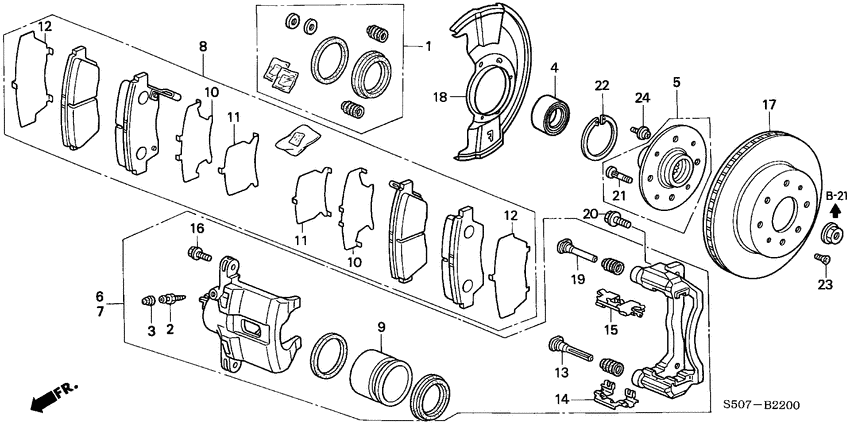

Front brake Diagram Honda LOGO
- Year
- 1999
- Model code
- LOGO
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- LOGO
- area code
- KG
- left-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01463-S04-000 Caliper setFR. |
01463-S04-000 |
US $35.71 |
||
|
2
|
2
43352-SM4-951 ScrewBLEEDER |
43352-SM4-951 |
from US $3.26 |
||
|
3
|
3
43353-SD5-003 CapBLEEDER SCREW |
43353-SD5-003 |
from US $2.12 |
||
|
4
|
4
44300-S2G-008 Bearing assyFR. HUB (NTN) |
44300-S2G-008 |
US $80 |
||
|
4
|
4
44300-S2G-004 Bearing assyFR. HUB (KOYO SEIKO) |
44300-S2G-004 |
US $80 |
||
|
5
|
5
44600-S04-980 Hub assyFR. |
44600-S04-980 |
US $131.84 |
||
|
6
|
6
45018-S04-003 Caliper sub assy.R. FR. |
45018-S04-003 |
US $424.96 |
||
|
7
|
7
45019-S04-003 Caliper sub assy.L. FR. |
45019-S04-003 |
US $424.96 |
||
|
8
|
8
45022-S04-E50 Pad setFR. |
45022-S04-E50 |
US $126.72 |
||
|
9
|
9
45216-SR3-003
Piston
|
45216-SR3-003 |
— | ||
| replacement | |||||
|
9
|
9
45216-S5A-003 Piston |
45216-S5A-003 |
from US $30.19 |
||
|
10
|
10
45225-SR3-003
Shim a
|
45225-SR3-003 |
— | ||
|
11
|
11
45226-SR3-003
Shim b
|
45226-SR3-003 |
— | ||
|
12
|
12
45228-SR3-003
Shim
|
45228-SR3-003 |
— | ||
|
13
|
13
45235-SR3-003 Pin a |
45235-SR3-003 |
US $9.38 |
||
|
14
|
14
45237-SR3-003 Retainer a |
45237-SR3-003 |
from US $4.16 |
||
|
15
|
15
45238-SR3-003 Retainer b |
45238-SR3-003 |
US $8.63 |
||
|
16
|
16
45240-SC2-003 BoltFLANGE, 8X22 |
45240-SC2-003 |
from US $3.03 |
||
|
17
|
17
45251-S50-G00 DiskFR. BRAKE (240MM, NO PAINT) |
45251-S50-G00 |
US $129.28 |
||
|
18
|
18
45255-S2G-000
Guard
|
45255-S2G-000 |
— | ||
|
19
|
19
45262-SR3-003 Pin b |
45262-SR3-003 |
US $9.38 |
||
|
20
|
20
90107-SM4-000 BoltCALIPER MOUNTING (12X21) |
90107-SM4-000 |
from US $2.44 |
||
|
21
|
21
90113-SA0-025 BoltWHEEL (NAGOYA RASHI) |
90113-SA0-025 |
from US $2.96 |
||
| replacement | |||||
|
21
|
21
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
21
|
21
90113-SA0-006 BoltWHEEL (SAGA) |
90113-SA0-006 |
from US $2.59 |
||
| replacement | |||||
|
21
|
21
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
22
|
22
90681-SR3-A10 CirclipSPECIAL INTERNAL, 73MM |
90681-SR3-A10 |
US $5.18 |
||
|
23
|
23
93600-060-140-H ScrewFLAT, 6X14 |
93600-060-140-H |
from US $0.44 |
||
|
24
|
24
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
