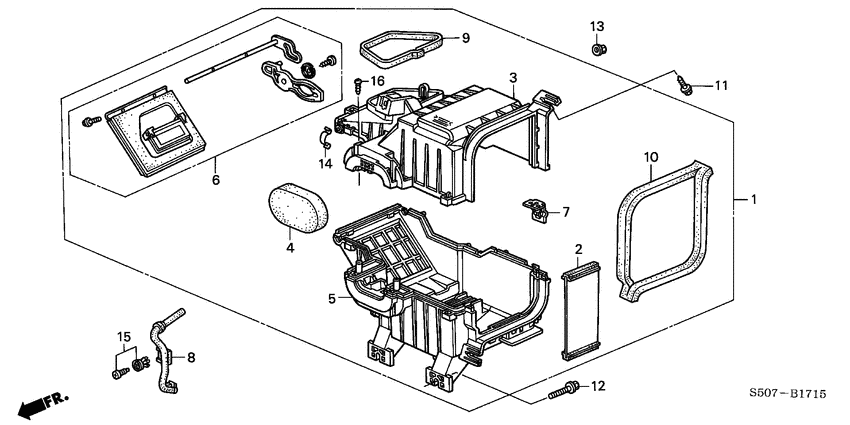

Heater duct (LH) Diagram Honda LOGO
- Year
- 1999
- Model code
- LOGO
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- LOGO
- area code
- KG
- left-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79800-S50-G01
Duct assy
|
79800-S50-G01 |
— | ||
|
2
|
2
79801-S50-003 PlateHEATER DUCT (NON A.C.) |
79801-S50-003 |
US $10.64 |
||
|
3
|
3
79815-S50-G01
Case
|
79815-S50-G01 |
— | ||
|
4
|
4
79817-S2H-003 SealFLANGE |
79817-S2H-003 |
US $7.98 |
||
|
5
|
5
80202-S2H-Y01 CaseEVAPORATOR LOWER |
80202-S2H-Y01 |
US $33.15 |
||
|
6
|
6
80250-S50-G01
Link assy
|
80250-S50-G01 |
— | ||
|
7
|
7
80251-S50-003 ClipCABLE (5MM) |
80251-S50-003 |
US $1.61 |
||
|
8
|
8
80271-S50-000 HoseDRAIN |
80271-S50-000 |
US $10.36 |
||
|
9
|
9
80286-S50-003 SealEVAPORATOR INNER |
80286-S50-003 |
US $3.29 |
||
|
10
|
10
80287-S50-003 SealEVAPORATOR OUTER |
80287-S50-003 |
US $6.30 |
||
|
11
|
11
90155-SE0-003 ScrewTAPPING, 6X20 |
90155-SE0-003 |
US $1.54 |
||
|
12
|
12
90156-SH3-000 Bolt-washer6X24 |
90156-SH3-000 |
US $2.52 |
||
|
13
|
13
90321-SV4-003 Nut-washer6MM (PAINT CUTTING) |
90321-SV4-003 |
US $1.47 |
||
|
14
|
14
90659-692-000 ClampCASE |
90659-692-000 |
from US $2.10 |
||
|
15
|
15
91503-SP0-013 Clip ABUMPER |
91503-SP0-013 |
US $4.23 |
||
| replacement | |||||
|
15
|
15
91503-SP0-003 Clip A |
91503-SP0-003 |
from US $2.45 |
||
|
16
|
16
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
