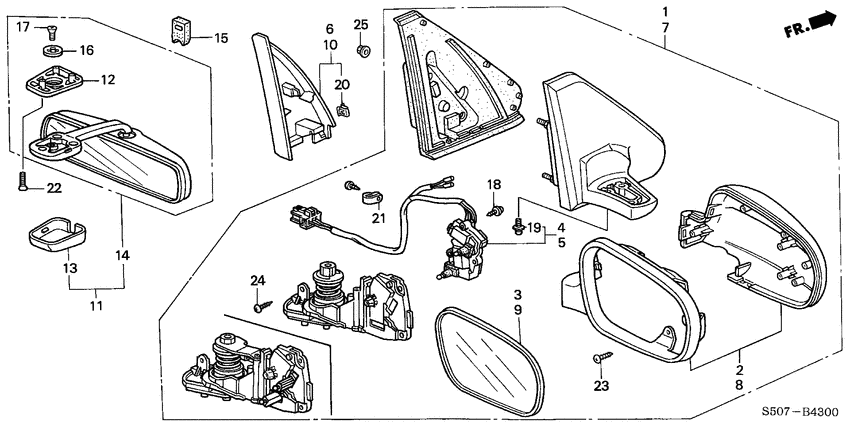

Mirror Diagram Honda LOGO
- Year
- 1999
- Model code
- LOGO
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- LOGO
- area code
- KG
- left-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76200-S50-G01ZD
Mirror assy
|
76200-S50-G01ZD |
— | ||
|
1
|
1
76200-S50-G31ZE
Mirror assy
|
76200-S50-G31ZE |
— | ||
|
1
|
1
76200-S50-G21ZH
Mirror assy
|
76200-S50-G21ZH |
— | ||
|
1
|
1
76200-S50-G21ZC
Mirror assy
|
76200-S50-G21ZC |
— | ||
|
1
|
1
76200-S50-G01ZF
Mirror assy
|
76200-S50-G01ZF |
— | ||
|
1
|
1
76200-S50-G01ZA
Mirror assy
|
76200-S50-G01ZA |
— | ||
|
1
|
1
76200-S50-G31ZG
Mirror assy
|
76200-S50-G31ZG |
— | ||
|
1
|
1
76200-S50-G31ZB
Mirror assy
|
76200-S50-G31ZB |
— | ||
|
1
|
1
76200-S50-G21ZE
Mirror assy
|
76200-S50-G21ZE |
— | ||
|
1
|
1
76200-S50-G01ZH
Mirror assy
|
76200-S50-G01ZH |
— | ||
|
1
|
1
76200-S50-G01ZC
Mirror assy
|
76200-S50-G01ZC |
— | ||
|
1
|
1
76200-S50-G31ZD
Mirror assy
|
76200-S50-G31ZD |
— | ||
|
1
|
1
76200-S50-G21ZG
Mirror assy
|
76200-S50-G21ZG |
— | ||
|
1
|
1
76200-S50-G21ZB
Mirror assy
|
76200-S50-G21ZB |
— | ||
|
1
|
1
76200-S50-G01ZE
Mirror assy
|
76200-S50-G01ZE |
— | ||
|
1
|
1
76200-S50-G31ZF
Mirror assy
|
76200-S50-G31ZF |
— | ||
|
1
|
1
76200-S50-G31ZA
Mirror assy
|
76200-S50-G31ZA |
— | ||
|
1
|
1
76200-S50-G21ZD
Mirror assy
|
76200-S50-G21ZD |
— | ||
|
1
|
1
76200-S50-G01ZG
Mirror assy
|
76200-S50-G01ZG |
— | ||
|
1
|
1
76200-S50-G01ZB
Mirror assy
|
76200-S50-G01ZB |
— | ||
|
1
|
1
76200-S50-G31ZH
Mirror assy
|
76200-S50-G31ZH |
— | ||
|
1
|
1
76200-S50-G31ZC
Mirror assy
|
76200-S50-G31ZC |
— | ||
|
1
|
1
76200-S50-G21ZF
Mirror assy
|
76200-S50-G21ZF |
— | ||
|
1
|
1
76200-S50-G21ZA
Mirror assy
|
76200-S50-G21ZA |
— | ||
|
2
|
2
76201-S04-Y24ZE Cover setR. *NH583M* |
76201-S04-Y24ZE |
US $129.28 |
||
|
2
|
2
76201-S04-Y24D2
Cover set
|
76201-S04-Y24D2 |
— | ||
|
2
|
2
76201-S04-Y24E5
Cover set
|
76201-S04-Y24E5 |
— | ||
|
2
|
2
76201-S04-Y24YQ
Cover set
|
76201-S04-Y24YQ |
— | ||
|
2
|
2
76201-S04-Y24B3
Cover set
|
76201-S04-Y24B3 |
— | ||
|
2
|
2
76201-S04-Y24ZF
Cover set
|
76201-S04-Y24ZF |
— | ||
|
2
|
2
76201-S04-Y24D4
Cover set
|
76201-S04-Y24D4 |
— | ||
|
2
|
2
76201-S04-Y24YK
Cover set
|
76201-S04-Y24YK |
— | ||
|
3
|
3
76203-S30-J01 MirrorR. (1400R) |
76203-S30-J01 |
US $38.02 |
||
|
3
|
3
76203-S30-E01 MirrorR. (1400R) (HEATED) |
76203-S30-E01 |
US $79.36 |
||
|
4
|
4
76210-S50-E11
Actuator comp.
|
76210-S50-E11 |
— | ||
|
4
|
4
76210-S50-J11
Actuator comp.
|
76210-S50-J11 |
— | ||
|
5
|
5
76215-S50-E11
Actuator comp.
|
76215-S50-E11 |
— | ||
|
5
|
5
76215-S50-J11
Actuator comp.
|
76215-S50-J11 |
— | ||
|
6
|
6
76220-S50-000ZA
Garnish
|
76220-S50-000ZA |
— | ||
|
7
|
7
76250-S50-G01ZG
Mirror assy
|
76250-S50-G01ZG |
— | ||
|
7
|
7
76250-S50-G01ZB
Mirror assy
|
76250-S50-G01ZB |
— | ||
|
7
|
7
76250-S50-G31ZH
Mirror assy
|
76250-S50-G31ZH |
— | ||
|
7
|
7
76250-S50-G31ZC
Mirror assy
|
76250-S50-G31ZC |
— | ||
|
7
|
7
76250-S50-G21ZF
Mirror assy
|
76250-S50-G21ZF |
— | ||
|
7
|
7
76250-S50-G21ZA
Mirror assy
|
76250-S50-G21ZA |
— | ||
|
7
|
7
76250-S50-G01ZD
Mirror assy
|
76250-S50-G01ZD |
— | ||
|
7
|
7
76250-S50-G31ZE
Mirror assy
|
76250-S50-G31ZE |
— | ||
|
7
|
7
76250-S50-G21ZH
Mirror assy
|
76250-S50-G21ZH |
— | ||
|
7
|
7
76250-S50-G21ZC
Mirror assy
|
76250-S50-G21ZC |
— | ||
|
7
|
7
76250-S50-G01ZF
Mirror assy
|
76250-S50-G01ZF |
— | ||
|
7
|
7
76250-S50-G01ZA
Mirror assy
|
76250-S50-G01ZA |
— | ||
|
7
|
7
76250-S50-G31ZG
Mirror assy
|
76250-S50-G31ZG |
— | ||
|
7
|
7
76250-S50-G31ZB
Mirror assy
|
76250-S50-G31ZB |
— | ||
|
7
|
7
76250-S50-G21ZE
Mirror assy
|
76250-S50-G21ZE |
— | ||
|
7
|
7
76250-S50-G01ZH
Mirror assy
|
76250-S50-G01ZH |
— | ||
|
7
|
7
76250-S50-G01ZC
Mirror assy
|
76250-S50-G01ZC |
— | ||
|
7
|
7
76250-S50-G31ZD
Mirror assy
|
76250-S50-G31ZD |
— | ||
|
7
|
7
76250-S50-G21ZG
Mirror assy
|
76250-S50-G21ZG |
— | ||
|
7
|
7
76250-S50-G21ZB
Mirror assy
|
76250-S50-G21ZB |
— | ||
|
7
|
7
76250-S50-G01ZE
Mirror assy
|
76250-S50-G01ZE |
— | ||
|
7
|
7
76250-S50-G31ZF
Mirror assy
|
76250-S50-G31ZF |
— | ||
|
7
|
7
76250-S50-G31ZA
Mirror assy
|
76250-S50-G31ZA |
— | ||
|
7
|
7
76250-S50-G21ZD
Mirror assy
|
76250-S50-G21ZD |
— | ||
|
8
|
8
76251-S04-Y24D3
Cover set
|
76251-S04-Y24D3 |
— | ||
|
8
|
8
76251-S04-Y24YK
Cover set
|
76251-S04-Y24YK |
— | ||
|
8
|
8
76251-S04-Y24ZE Cover setL. *NH583M* |
76251-S04-Y24ZE |
US $135.68 |
||
|
8
|
8
76251-S04-Y24C9
Cover set
|
76251-S04-Y24C9 |
— | ||
|
8
|
8
76251-S04-Y24E4
Cover set
|
76251-S04-Y24E4 |
— | ||
|
8
|
8
76251-S04-Y24YQ
Cover set
|
76251-S04-Y24YQ |
— | ||
|
8
|
8
76251-S04-Y24B2
Cover set
|
76251-S04-Y24B2 |
— | ||
|
8
|
8
76251-S04-Y24ZF
Cover set
|
76251-S04-Y24ZF |
— | ||
|
9
|
9
76253-S30-E01 MirrorL. (1400R) (HEATED) |
76253-S30-E01 |
US $79.36 |
||
|
9
|
9
76253-S30-J01 MirrorL. (1400R) |
76253-S30-J01 |
US $38.02 |
||
|
10
|
10
76270-S50-000ZA
Garnish
|
76270-S50-000ZA |
— | ||
|
11
|
11
76400-SH4-004ZL Mirror assyRR. VIEW *NH1L* (DAY/NIGHT) |
76400-SH4-004ZL |
US $97.28 |
||
|
12
|
12
76401-SH3-901 BaseSTAY (MATSUYAMA) |
76401-SH3-901 |
US $6.16 |
||
|
13
|
13
76408-SH3-901ZS
Cover
|
76408-SH3-901ZS |
— | ||
|
14
|
14
76430-SH4-004ZL
Mirror & stay comp.
|
76430-SH4-004ZL |
— | ||
|
15
|
15
88141-SB2-000
Holder
|
88141-SB2-000 |
— | ||
|
16
|
16
88147-SA5-003
Washer
|
88147-SA5-003 |
— | ||
|
17
|
17
88148-SE0-003 BoltLOCK, 6X7 (MATSUYAMA) |
88148-SE0-003 |
US $1.61 |
||
|
18
|
18
90145-S04-006 Screw3X16 |
90145-S04-006 |
US $1.19 |
||
|
19
|
19
90145-S50-003 Screw-washer5X12 |
90145-S50-003 |
US $1.19 |
||
|
20
|
20
90615-SK7-003 ClipMIRROR GARNISH |
90615-SK7-003 |
US $2.22 |
||
|
21
|
21
91565-SW5-003 ClampHARNESS |
91565-SW5-003 |
US $1.96 |
||
|
22
|
22
93600-050-200-A ScrewFLAT, 5X20 |
93600-050-200-A |
from US $0.37 |
||
|
23
|
23
93903-24280 ScrewTAPPING, 4X10 |
93903-24280 |
from US $0.37 |
||
|
24
|
24
93903-24420 ScrewTAPPING, 4X16 |
93903-24420 |
from US $0.37 |
||
|
25
|
25
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
