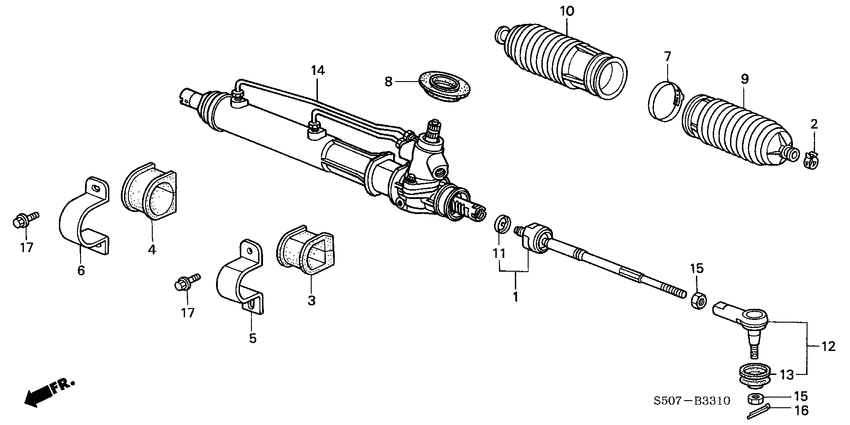

Power steering gear box (LH) Diagram Honda LOGO
- Year
- 1999
- Model code
- LOGO
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- LOGO
- area code
- KG
- left-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53010-S50-003 End setRACK |
53010-S50-003 |
US $71.04 |
||
|
2
|
2
53434-S84-A01 ClipSTEERING TIE ROD |
53434-S84-A01 |
from US $2.74 |
||
|
3
|
3
53435-S50-003
Cushion a
|
53435-S50-003 |
— | ||
|
4
|
4
53436-S50-000
Cushion b
|
53436-S50-000 |
— | ||
|
5
|
5
53437-S50-E01
Bracket a
|
53437-S50-E01 |
— | ||
|
6
|
6
53438-S50-000
Bracket b
|
53438-S50-000 |
— | ||
|
7
|
7
53449-S50-003 BandBELLOWS |
53449-S50-003 |
US $4.20 |
||
|
8
|
8
53501-S50-000
Grommet a
|
53501-S50-000 |
— | ||
|
9
|
9
53534-S50-003 Dust sealTIE ROD |
53534-S50-003 |
US $16.13 |
||
|
10
|
10
53535-S50-003 Dust sealTIE ROD |
53535-S50-003 |
US $16.13 |
||
|
11
|
11
53536-S50-003
Washer
|
53536-S50-003 |
— | ||
|
12
|
12
53540-SX8-T01 End compTIE ROD |
53540-SX8-T01 |
US $48.14 |
||
|
13
|
13
53546-S30-005 BootTIE ROD END |
53546-S30-005 |
from US $11.23 |
||
|
14
|
14
53601-S50-G01
Box comp
|
53601-S50-G01 |
— | ||
|
15
|
15
94030-12280 NutHEX., 12MM |
94030-12280 |
from US $0.59 |
||
|
16
|
16
94201-30220 Pin, SPLIT, 3.0X22 |
94201-30220 |
from US $0.44 |
||
|
17
|
17
95701-100-250-5 BoltFLANGE, 10X25 |
95701-100-250-5 |
US $0.81 |
