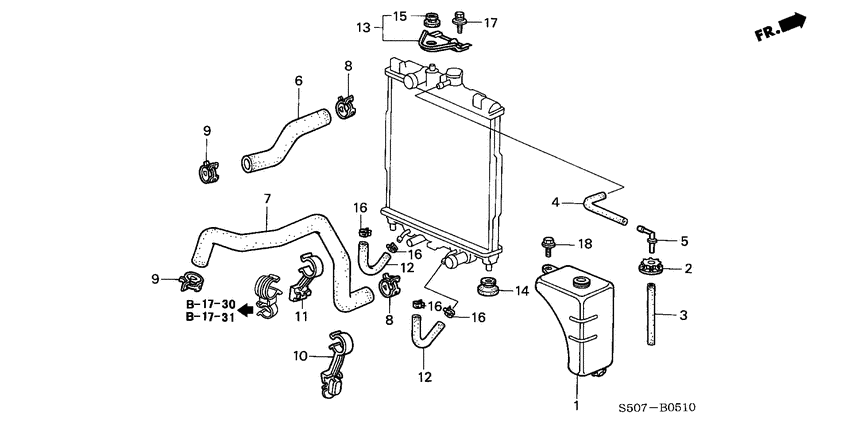

Radiator hose Diagram Honda LOGO
- Year
- 1999
- Model code
- LOGO
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- LOGO
- area code
- KG
- left-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19101-P7A-000
Tank
|
19101-P7A-000 |
— | ||
|
2
|
2
19102-PM5-A00 CapRESERVE TANK |
19102-PM5-A00 |
from US $3.98 |
||
|
3
|
3
19103-P7A-000 HoseRESERVE TANK |
19103-P7A-000 |
US $3.57 |
||
|
4
|
4
19104-P7A-000
Tube
|
19104-P7A-000 |
— | ||
|
5
|
5
19106-PA0-020 JointRESERVE TANK |
19106-PA0-020 |
from US $4.20 |
||
|
6
|
6
19501-P7A-J00 HoseWATER UPPER |
19501-P7A-J00 |
US $17.02 |
||
|
6
|
6
19501-P7A-000 HoseWATER UPPER (YAMASHITA) |
19501-P7A-000 |
US $17.02 |
||
|
7
|
7
19502-P7A-J00
Hose
|
19502-P7A-J00 |
— | ||
|
7
|
7
19502-P7A-000 HoseWATER LOWER (YAMASHITA) |
19502-P7A-000 |
US $39.04 |
||
|
8
|
8
19511-PA6-003 ClipWATER HOSE(CHUO SPRING) |
19511-PA6-003 |
from US $3.70 |
||
|
9
|
9
19511-P08-003
Clip
|
19511-P08-003 |
— | ||
| replacement | |||||
|
9
|
9
19511-PA6-003 ClipWATER HOSE(CHUO SPRING) |
19511-PA6-003 |
from US $3.70 |
||
|
10
|
10
19519-PM1-003
Clamp
|
19519-PM1-003 |
— | ||
|
13
|
13
74170-SL9-000 Bracket comp.RADIATOR MOUNTING |
74170-SL9-000 |
US $14.15 |
||
|
14
|
14
74172-SS0-000 CushionRADIATOR MOUNTING LOWER |
74172-SS0-000 |
from US $6.30 |
||
|
15
|
15
74173-SJ4-000 CushionRADIATOR MOUNTING UPPER |
74173-SJ4-000 |
from US $2.74 |
||
|
17
|
17
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
18
|
18
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
