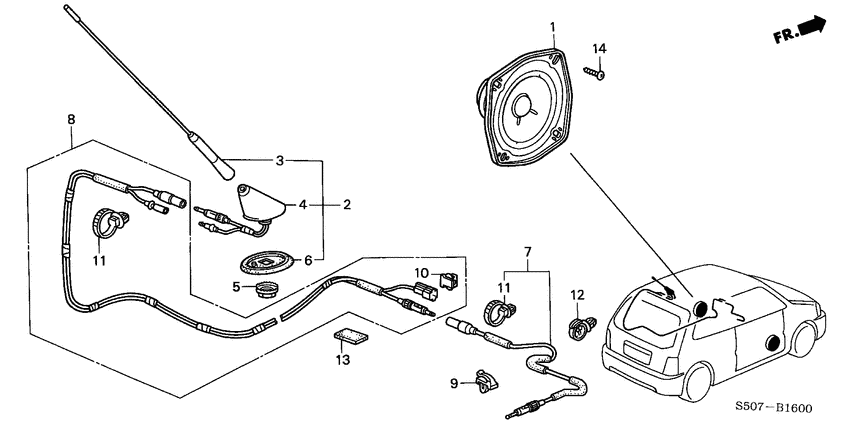

Radio antenna/speaker Diagram Honda LOGO
- Year
- 1999
- Model code
- LOGO
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- LOGO
- area code
- KG
- left-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39120-S50-003
Speaker assy
|
39120-S50-003 |
— | ||
|
2
|
2
39150-S50-E01
Antenna assy
|
39150-S50-E01 |
— | ||
|
3
|
3
39151-S50-J01 Mast assy. |
39151-S50-J01 |
US $33.66 |
||
|
4
|
4
39152-S50-E01 Base |
39152-S50-E01 |
US $101.76 |
||
|
5
|
5
39153-S50-J01 Nut |
39153-S50-J01 |
US $5.88 |
||
|
6
|
6
39154-S50-J01 Pad |
39154-S50-J01 |
US $7.16 |
||
|
7
|
7
39156-S50-003
Sub feeder
|
39156-S50-003 |
— | ||
|
8
|
8
39159-S50-G01
Feeder
|
39159-S50-G01 |
— | ||
|
9
|
9
90683-SB3-003 ClipWIRE HARNESS |
90683-SB3-003 |
from US $1.61 |
||
|
10
|
10
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.78 |
||
|
11
|
11
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $3.26 |
||
|
12
|
12
91558-SD5-003 ClipWIRE HARNESS (BLACK) |
91558-SD5-003 |
from US $3.03 |
||
|
13
|
13
91902-SJ8-003 CushionWIRE HARNESS (50X50) |
91902-SJ8-003 |
US $2.31 |
||
|
14
|
14
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
