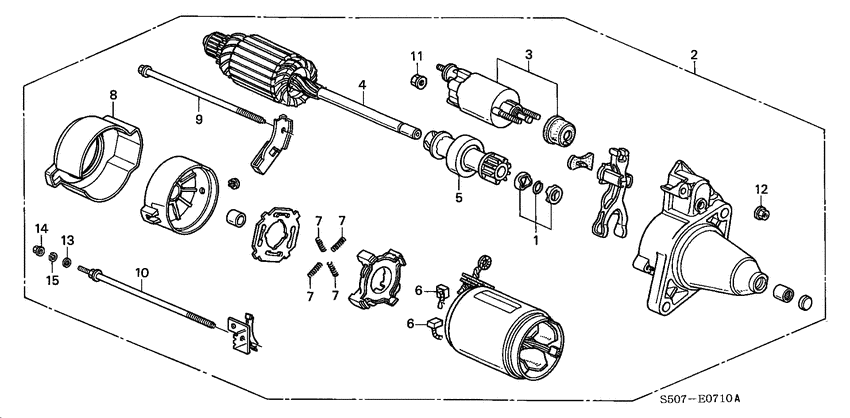

Starter motor (DENSO) Diagram Honda LOGO
- Year
- 1999
- Model code
- LOGO
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- LOGO
- area code
- KG
- left-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30202-PZ1-003 Collar setCLUTCH STOP |
30202-PZ1-003 |
from US $6.86 |
||
|
2
|
2
31200-P7A-G01
Motor assy.
|
31200-P7A-G01 |
— | ||
|
3
|
3
31204-P2A-003
Switch assy
|
31204-P2A-003 |
— | ||
|
4
|
4
31206-PH9-004 Armature comp. |
31206-PH9-004 |
US $163.84 |
||
|
5
|
5
31207-ZG4-611
Clutch comp.
|
31207-ZG4-611 |
— | ||
|
6
|
6
31211-PH9-004 Brush |
31211-PH9-004 |
from US $6.16 |
||
|
7
|
7
31212-PH9-004 SpringBRUSH |
31212-PH9-004 |
US $9.38 |
||
|
8
|
8
31213-P7A-G01
Cover
|
31213-P7A-G01 |
— | ||
|
10
|
10
31214-P7A-G01
Bolt
|
31214-P7A-G01 |
— | ||
|
11
|
11
31220-PH9-004 NutHEX., 8MM |
31220-PH9-004 |
from US $1.40 |
||
|
12
|
12
31223-PA0-006 NutHEX. |
31223-PA0-006 |
from US $1.19 |
||
|
13
|
13
31227-P7A-G01
Washer
|
31227-P7A-G01 |
— | ||
|
14
|
14
94001-050-800-S NutHEX., 5MM |
94001-050-800-S |
from US $0.37 |
||
|
15
|
15
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
