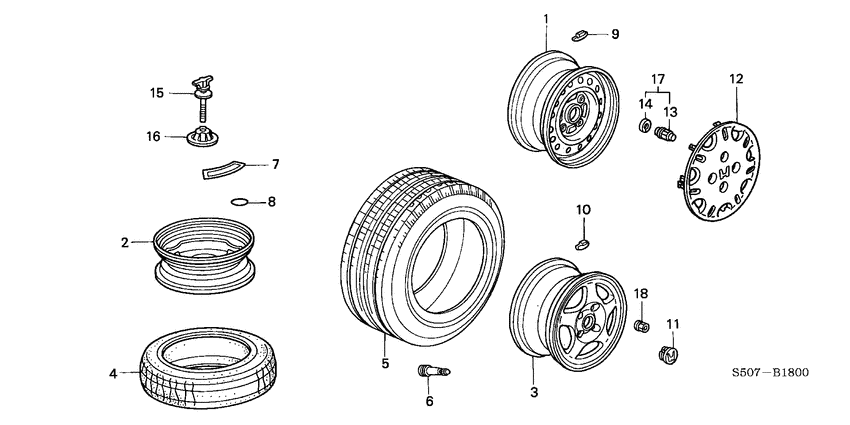

Tire/wheel disk Diagram Honda LOGO
- Year
- 1999
- Model code
- LOGO
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- LOGO
- area code
- KG
- left-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42700-S2G-J01 DiskWHEEL (13X5JJ) (TYUOSEIKI) |
42700-S2G-J01 |
US $99.20 |
||
|
2
|
2
42700-S50-E51 DiskWHEEL (14X4T) (RING TECHS) |
42700-S50-E51 |
US $125.44 |
||
|
3
|
3
42700-S50-E91
Disk
|
42700-S50-E91 |
— | ||
|
4
|
4
42751-S04-903
Tire
|
42751-S04-903 |
— | ||
|
4
|
4
42751-S04-902
Tire
|
42751-S04-902 |
— | ||
|
5
|
5
42751-S50-E01
Tire
|
42751-S50-E01 |
— | ||
|
6
|
6
42753-SE0-A02 ValveRIM (SCHRADER) |
42753-SE0-A02 |
US $20.10 |
||
| replacement | |||||
|
6
|
6
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
6
|
6
42753-671-003 ValveRIM (TAIHEIYO) |
42753-671-003 |
US $2.01 |
||
| replacement | |||||
|
6
|
6
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
6
|
6
42753-SH3-003 ValveRIM (US PACIFIC) |
42753-SH3-003 |
US $2.01 |
||
| replacement | |||||
|
6
|
6
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
7
|
7
42767-SB2-620 PlateSPARE TIRE CAUTION (T-TYPE)(FRENCH) |
42767-SB2-620 |
US $2.80 |
||
|
7
|
7
42767-SS0-G20 PlateSPARE TIRE CAUTION (T-TYPE) (GERMANY) |
42767-SS0-G20 |
US $2.45 |
||
|
7
|
7
42767-SB0-600 PlateSPARE TIRE CAUTION (T-TYPE) (ENGLISH) |
42767-SB0-600 |
US $2.45 |
||
|
8
|
8
42767-SH3-E00 PlateSPARE TIRE CAUTION (T-TYPE) |
42767-SH3-E00 |
US $1.68 |
||
|
9
|
9
44730-SB2-013
Weight
|
44730-SB2-013 |
— | ||
|
9
|
9
44728-SH0-A01
Weight
|
44728-SH0-A01 |
— | ||
|
9
|
9
44722-SB2-003
Weight
|
44722-SB2-003 |
— | ||
|
9
|
9
44728-SB2-003
Weight
|
44728-SB2-003 |
— | ||
|
9
|
9
44726-SH0-A01
Weight
|
44726-SH0-A01 |
— | ||
|
9
|
9
44725-SB2-003
Weight
|
44725-SB2-003 |
— | ||
|
9
|
9
44723-SH0-A01
Weight
|
44723-SH0-A01 |
— | ||
|
9
|
9
44729-SH0-A01
Weight
|
44729-SH0-A01 |
— | ||
|
9
|
9
44726-SB2-003
Weight
|
44726-SB2-003 |
— | ||
|
9
|
9
44723-SB2-003
Weight
|
44723-SB2-003 |
— | ||
|
9
|
9
44721-SH0-A01
Weight
|
44721-SH0-A01 |
— | ||
|
9
|
9
44729-SB2-003
Weight
|
44729-SB2-003 |
— | ||
|
9
|
9
44727-SH0-A01
Weight
|
44727-SH0-A01 |
— | ||
|
9
|
9
44724-SH0-A01
Weight
|
44724-SH0-A01 |
— | ||
|
9
|
9
44730-SH0-A01
Weight
|
44730-SH0-A01 |
— | ||
|
9
|
9
44721-SB2-003
Weight
|
44721-SB2-003 |
— | ||
|
9
|
9
44727-SB2-003
Weight
|
44727-SB2-003 |
— | ||
|
9
|
9
44725-SH0-A01
Weight
|
44725-SH0-A01 |
— | ||
|
9
|
9
44724-SB2-003
Weight
|
44724-SB2-003 |
— | ||
|
9
|
9
44722-SH0-A01
Weight
|
44722-SH0-A01 |
— | ||
|
10
|
10
44726-SF1-A01
Weight
|
44726-SF1-A01 |
— | ||
|
10
|
10
44723-SF1-A01
Weight
|
44723-SF1-A01 |
— | ||
|
10
|
10
44729-SF1-A01
Weight
|
44729-SF1-A01 |
— | ||
|
10
|
10
44721-SF1-A01
Weight
|
44721-SF1-A01 |
— | ||
|
10
|
10
44727-SF1-A01
Weight
|
44727-SF1-A01 |
— | ||
|
10
|
10
44724-SF1-A01
Weight
|
44724-SF1-A01 |
— | ||
|
10
|
10
44730-SF1-A01
Weight
|
44730-SF1-A01 |
— | ||
|
10
|
10
44722-SF1-A01
Weight
|
44722-SF1-A01 |
— | ||
|
10
|
10
44728-SF1-A01
Weight
|
44728-SF1-A01 |
— | ||
|
11
|
11
44732-S2G-J90 CapALUMINIUM WHEEL CENTER |
44732-S2G-J90 |
US $29.31 |
||
|
12
|
12
44733-S50-E00
Trim
|
44733-S50-E00 |
— | ||
|
13
|
13
44736-SA0-981 NutWHEEL (FUSE RASHI) |
44736-SA0-981 |
US $4.90 |
||
|
14
|
14
44737-SA0-981
Washer
|
44737-SA0-981 |
— | ||
|
15
|
15
74654-SD5-000 BoltANCHOR |
74654-SD5-000 |
US $7 |
||
|
16
|
16
83850-SD2-000 PlateANCHOR BOLT |
83850-SD2-000 |
US $4.48 |
||
|
17
|
17
90304-SA0-981 Nut comp.WHEEL (FUSE RASHI) |
90304-SA0-981 |
from US $5.46 |
||
|
18
|
18
90304-SA5-013 NutWHEEL (CHROME PLATED) (FUSE RASHI) |
90304-SA5-013 |
from US $4.44 |
||
