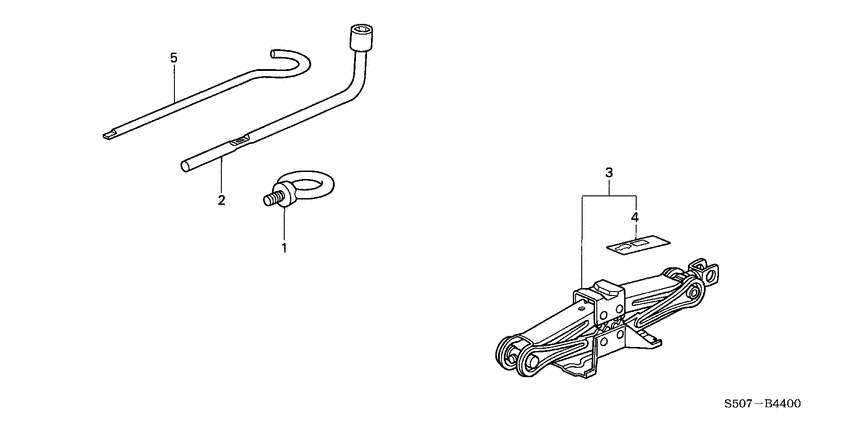

Tools/jack Diagram Honda LOGO
- Year
- 1999
- Model code
- LOGO
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- LOGO
- area code
- KG
- left-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74717-S50-000 Bolt, Eye |
74717-S50-000 |
from US $7.81 |
||
|
2
|
2
89211-SE3-003
Wrench
|
89211-SE3-003 |
— | ||
|
3
|
3
89310-S30-003
Jack assy
|
89310-S30-003 |
— | ||
|
4
|
4
89311-SV4-003
Plate
|
89311-SV4-003 |
— | ||
|
5
|
5
89320-S50-003 BarJACK |
89320-S50-003 |
US $20.50 |
