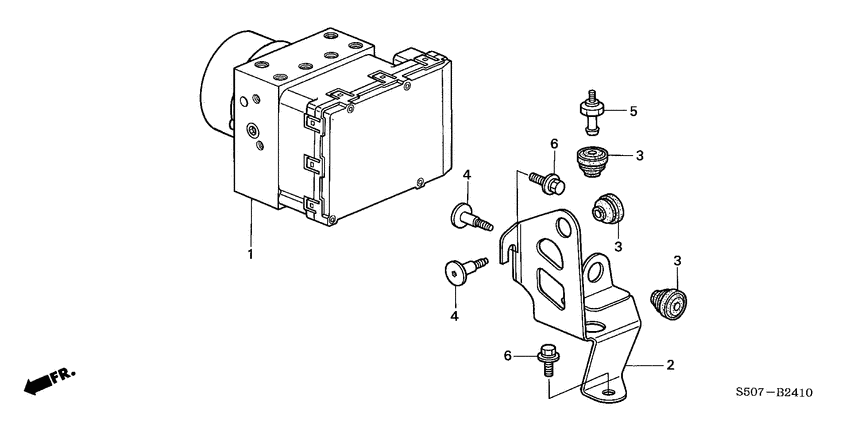

Abs modulator Diagram Honda LOGO
- Year
- 1999
- Model code
- LOGO
- Sales region
- General
- Engine
- D13B
- transmission
- CVT
- Number of doors
- 3
- grade
- LOGO
- abs
- +
- area code
- KG
- left-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57110-S50-E51
Modulator assy
|
57110-S50-E51 |
— | ||
|
2
|
2
57115-S50-950
Bracket
|
57115-S50-950 |
— | ||
|
3
|
3
57358-S04-003 RubberABS MOUNTING |
57358-S04-003 |
US $2.45 |
||
|
4
|
4
57376-S04-003 Bolt aABS MOUNTING |
57376-S04-003 |
US $4.34 |
||
|
5
|
5
57377-S04-003 Bolt bABS MOUNTING |
57377-S04-003 |
US $8.82 |
||
|
6
|
6
93407-080-200-8 Bolt-washer8X20 |
93407-080-200-8 |
US $0.74 |
