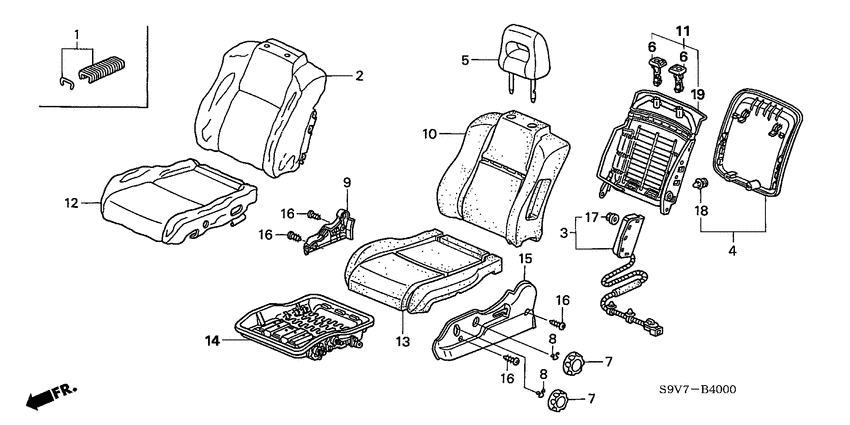

Front seat (L.) Diagram Honda MR-V
- Year
- 2003
- Model code
- MR-V
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 5
- grade
- LX
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-R00 C clip setTRIM FASTENER (100 PIECES) |
04810-SB3-R00 |
US $13.30 |
||
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
US $4.74 |
||
|
2
|
2
04815-S9V-A00ZB
Cover set
|
04815-S9V-A00ZB |
— | ||
|
2
|
2
04815-S9V-A00ZC
Cover set
|
04815-S9V-A00ZC |
— | ||
|
3
|
3
06788-S3V-A80
Module kit
|
06788-S3V-A80 |
— | ||
|
4
|
4
81127-S9V-A01ZC
Cover
|
81127-S9V-A01ZC |
— | ||
|
4
|
4
81127-S9V-A01ZB
Cover
|
81127-S9V-A01ZB |
— | ||
|
5
|
5
81140-S9V-A01ZB
Headrest assy
|
81140-S9V-A01ZB |
— | ||
|
5
|
5
81140-S9V-A01ZC
Headrest assy
|
81140-S9V-A01ZC |
— | ||
|
6
|
6
81144-S0K-A61ZH
Guide comp
|
81144-S0K-A61ZH |
— | ||
|
6
|
6
81144-S0K-A61ZG Guide compHEADREST LOCK *NH361L* |
81144-S0K-A61ZG |
US $9.38 |
||
|
7
|
7
81223-S0X-A11ZE
Handle
|
81223-S0X-A11ZE |
— | ||
|
7
|
7
81223-S0X-A11ZF
Handle
|
81223-S0X-A11ZF |
— | ||
|
8
|
8
81322-S80-A81 ClipLUMBAR SUPPORT |
81322-S80-A81 |
US $1.61 |
||
|
9
|
9
81515-S04-000ZP
Cover
|
81515-S04-000ZP |
— | ||
|
9
|
9
81515-S04-000ZN
Cover
|
81515-S04-000ZN |
— | ||
|
10
|
10
81522-S9V-A01
Pad comp
|
81522-S9V-A01 |
— | ||
|
11
|
11
81526-S9V-A01ZE
Frame comp
|
81526-S9V-A01ZE |
— | ||
|
11
|
11
81526-S9V-A01ZF
Frame comp
|
81526-S9V-A01ZF |
— | ||
|
12
|
12
81531-S9V-A01ZC
Cover
|
81531-S9V-A01ZC |
— | ||
|
12
|
12
81531-S9V-A01ZB
Cover
|
81531-S9V-A01ZB |
— | ||
|
13
|
13
81532-S9V-A01
Pad comp
|
81532-S9V-A01 |
— | ||
|
14
|
14
81536-S84-A14
Frame comp
|
81536-S84-A14 |
— | ||
|
15
|
15
81638-S9V-A01ZB
Cover
|
81638-S9V-A01ZB |
— | ||
|
15
|
15
81638-S9V-A01ZC
Cover
|
81638-S9V-A01ZC |
— | ||
|
16
|
16
90134-SE3-003 ScrewTAPPING, 5X10 |
90134-SE3-003 |
from US $1.48 |
||
|
17
|
17
90321-S84-000 Nut-washer8MM |
90321-S84-000 |
US $1.48 |
||
|
18
|
18
91566-SP0-003 ClipBACK COVER (NATURAL) |
91566-SP0-003 |
US $1.33 |
