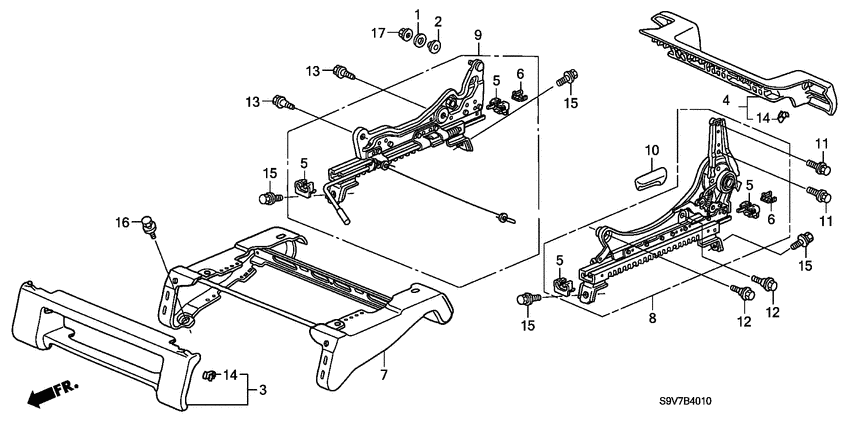

Front seat components (L.) Diagram Honda MR-V
- Year
- 2003
- Model code
- MR-V
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 5
- grade
- LX
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77209-SB0-003
Washer
|
77209-SB0-003 |
— | ||
|
2
|
2
81108-SE3-J02 BushNYLON (TACHI-S) (BLACK) |
81108-SE3-J02 |
US $2.31 |
||
|
3
|
3
81195-S3V-A02ZD CoverFR. SEAT RISER FR. *NH361L* |
81195-S3V-A02ZD |
US $25.60 |
||
|
3
|
3
81195-S3V-A02ZB
Cover
|
81195-S3V-A02ZB |
— | ||
|
4
|
4
81196-S3V-A31ZD
Cover
|
81196-S3V-A31ZD |
— | ||
|
4
|
4
81196-S3V-A31ZB
Cover
|
81196-S3V-A31ZB |
— | ||
|
5
|
5
81271-S0A-J02 CapSLIDE ADJUSTER END |
81271-S0A-J02 |
US $3.99 |
||
|
6
|
6
81272-S84-A01 CapSLIDE ADJUSTER UPPER END |
81272-S84-A01 |
US $3.92 |
||
|
7
|
7
81275-S3V-A31ZD
Riser assy.
|
81275-S3V-A31ZD |
— | ||
|
7
|
7
81275-S3V-A31ZB
Riser assy.
|
81275-S3V-A31ZB |
— | ||
|
8
|
8
81560-S9V-A01
Adjuster
|
81560-S9V-A01 |
— | ||
|
9
|
9
81570-S9V-A01
Adjuster
|
81570-S9V-A01 |
— | ||
|
10
|
10
81631-S0X-A00ZL
Knob
|
81631-S0X-A00ZL |
— | ||
|
10
|
10
81631-S0X-A00ZM
Knob
|
81631-S0X-A00ZM |
— | ||
|
11
|
11
90124-SV4-003 Bolt-washer10X34 |
90124-SV4-003 |
US $3.01 |
||
|
12
|
12
90143-S0X-A11
Bolt
|
90143-S0X-A11 |
— | ||
|
13
|
13
90143-S03-003 Bolt-washer8X19 |
90143-S03-003 |
US $3.01 |
||
|
14
|
14
90610-S10-003 ClipGARNISH |
90610-S10-003 |
US $1.61 |
||
|
15
|
15
93405-100-200-7 Bolt-washer10X20 |
93405-100-200-7 |
US $0.86 |
||
|
16
|
16
93405-100-250-8 Bolt-washer10X25 |
93405-100-250-8 |
US $0.98 |
||
|
17
|
17
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
