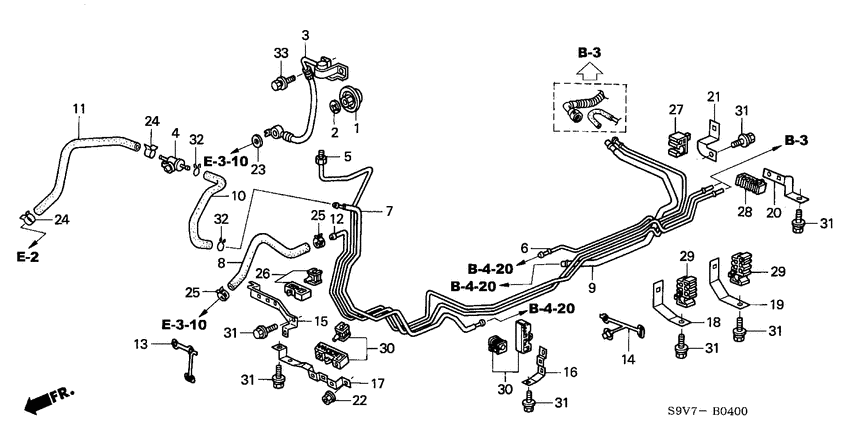

Fuel pipe (-'04) Diagram Honda MR-V
- Year
- 2003
- Model code
- MR-V
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 5
- grade
- LX
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16680-PE7-661
Damper assy.
|
16680-PE7-661 |
— | ||
| replacement | |||||
|
1
|
1
16680-PCX-003 Damper assy.PULSATION |
16680-PCX-003 |
US $81.53 |
||
|
2
|
2
16705-PD1-003 GasketSILENCER |
16705-PD1-003 |
from US $2.74 |
||
|
3
|
3
16720-PGK-A01
Hose comp. a
|
16720-PGK-A01 |
— | ||
|
4
|
4
17301-S0X-A01 PortVENT SERVICE |
17301-S0X-A01 |
US $26.75 |
||
|
5
|
5
17700-S3V-A01
Pipe
|
17700-S3V-A01 |
— | ||
|
6
|
6
17720-S3V-A02 PipeFUEL VENT |
17720-S3V-A02 |
US $34.94 |
||
|
7
|
7
17721-S3V-A03
Pipe
|
17721-S3V-A03 |
— | ||
|
8
|
8
17723-S3V-A00
Hose
|
17723-S3V-A00 |
— | ||
|
9
|
9
17728-S3V-A01 PipeFUEL VENT (ORVR) |
17728-S3V-A01 |
US $65.28 |
||
|
10
|
10
17731-S9V-A00
Tube a
|
17731-S9V-A00 |
— | ||
|
11
|
11
17732-S9V-A00
Hose b
|
17732-S9V-A00 |
— | ||
|
12
|
12
17740-S3V-A02
Pipe
|
17740-S3V-A02 |
— | ||
|
13
|
13
17758-S3V-A00 Rubber aFUEL PIPE |
17758-S3V-A00 |
US $5.18 |
||
|
14
|
14
17759-S3V-A00 Rubber bFUEL PIPE |
17759-S3V-A00 |
US $5.74 |
||
|
15
|
15
17761-S9V-A00
Stay a
|
17761-S9V-A00 |
— | ||
|
16
|
16
17762-S0X-A00
Stay b
|
17762-S0X-A00 |
— | ||
|
17
|
17
17763-S3V-A00
Stay c
|
17763-S3V-A00 |
— | ||
|
18
|
18
17765-S3V-A01
Stay f
|
17765-S3V-A01 |
— | ||
|
19
|
19
17767-S3V-A00
Stay g
|
17767-S3V-A00 |
— | ||
|
20
|
20
17768-S3V-A00
Stay h
|
17768-S3V-A00 |
— | ||
|
21
|
21
17769-S3V-A00
Stay j
|
17769-S3V-A00 |
— | ||
|
22
|
22
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
23
|
23
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.59 |
||
|
24
|
24
91411-SEB-003 ClampFUEL TUBE(D13.5) |
91411-SEB-003 |
US $3.01 |
||
|
25
|
25
91406-SL4-931 ClampFUEL HOSE (D10.5) |
91406-SL4-931 |
from US $1.86 |
||
|
26
|
26
91592-S3V-A01 Clamp bFUEL PIPE |
91592-S3V-A01 |
US $5.88 |
||
|
27
|
27
91593-S3V-A01 Clamp cFUEL PIPE |
91593-S3V-A01 |
US $5.88 |
||
|
28
|
28
91594-S3V-A01 Clamp dFUEL PIPE |
91594-S3V-A01 |
US $6.30 |
||
|
29
|
29
91595-S3V-A01 Clamp eFUEL PIPE |
91595-S3V-A01 |
US $6.30 |
||
|
30
|
30
91596-S0X-A01 Clamp fFUEL PIPE |
91596-S0X-A01 |
US $6.16 |
||
|
31
|
31
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.65 |
||
|
32
|
32
91402-SDC-000 ClipTUBE(B12) |
91402-SDC-000 |
US $1.79 |
||
|
33
|
33
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
