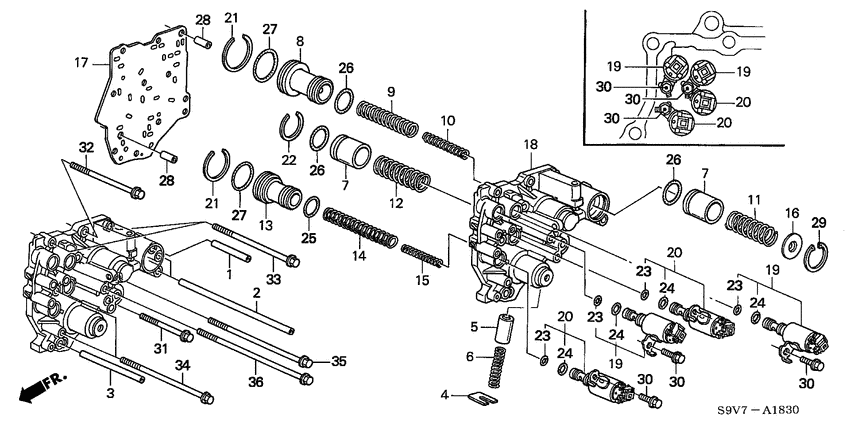

Accumulator body ('06-) Diagram Honda MR-V
- Year
- 2006
- Model code
- MR-V
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 5
- grade
- EX
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22743-PW4-000 Pipe8X40 |
22743-PW4-000 |
US $2.03 |
||
|
2
|
2
22744-PG4-000 PipeTOP CLUTCH |
22744-PG4-000 |
US $7.56 |
||
|
3
|
3
22748-P7Z-000 Pipe8X85 |
22748-P7Z-000 |
US $3.43 |
||
|
4
|
4
27263-PFL-000 SeatVALVE SPRING |
27263-PFL-000 |
US $1.61 |
||
|
5
|
5
27551-RDK-000
Valve
|
27551-RDK-000 |
— | ||
|
6
|
6
27552-RDK-000
Spring
|
27552-RDK-000 |
— | ||
|
7
|
7
27561-PAX-000 PistonLOW ACCUMULATOR |
27561-PAX-000 |
US $8.26 |
||
|
8
|
8
27561-RDK-000 PistonLOW ACCUMULATOR |
27561-RDK-000 |
US $10.08 |
||
|
9
|
9
27562-RDK-000
Spring a
|
27562-RDK-000 |
— | ||
|
10
|
10
27564-RDK-000
Spring b
|
27564-RDK-000 |
— | ||
|
11
|
11
27577-RDK-000
Spring
|
27577-RDK-000 |
— | ||
|
12
|
12
27581-RDK-000
Spring
|
27581-RDK-000 |
— | ||
|
13
|
13
27586-RDK-000 PistonREVERSE ACCUMULATOR |
27586-RDK-000 |
US $10.08 |
||
|
14
|
14
27587-P7W-000
Spring a
|
27587-P7W-000 |
— | ||
|
15
|
15
27588-P7W-000
Spring b
|
27588-P7W-000 |
— | ||
|
16
|
16
27591-RDK-000 CoverACCUMULATOR(26MM) |
27591-RDK-000 |
US $2.03 |
||
|
17
|
17
27812-RDK-000 PlateACCUMULATOR SEPARATOR |
27812-RDK-000 |
US $13.44 |
||
|
18
|
18
27860-RDK-010 Body compACCUMULATOR |
27860-RDK-010 |
US $140.80 |
||
|
19
|
19
28400-RDK-003
Solenoid assy.
|
28400-RDK-003 |
— | ||
|
20
|
20
28500-RDK-003
Solenoid assy.
|
28500-RDK-003 |
— | ||
|
21
|
21
90606-P7W-000 RingSNAP, 36MM |
90606-P7W-000 |
US $2.03 |
||
|
22
|
22
90607-P6H-000 RingSNAP, 26MM |
90607-P6H-000 |
US $1.47 |
||
|
23
|
23
91301-P7Z-004 O-ring7.6X1.9 (DENSO) |
91301-P7Z-004 |
US $1.33 |
||
|
24
|
24
91302-P7Z-004 O-ring9.6X1.9 (DENSO) |
91302-P7Z-004 |
US $1.33 |
||
|
25
|
25
91321-PF4-004 O-ring18.3X2.4(NOK) |
91321-PF4-004 |
from US $1.85 |
||
|
26
|
26
91331-PC9-003 O-ring |
91331-PC9-003 |
from US $0.77 |
||
|
27
|
27
91344-PC9-004 O-ring29X2.4 (NOK) |
91344-PC9-004 |
from US $2.44 |
||
|
28
|
28
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
29
|
29
94520-28000 CirclipINTERNAL, 28MM |
94520-28000 |
from US $0.81 |
||
|
30
|
30
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
31
|
31
95701-060-600-8 BoltFLANGE, 6X60 |
95701-060-600-8 |
from US $0.74 |
||
|
32
|
32
95701-060-850-8 BoltFLANGE, 6X85 |
95701-060-850-8 |
from US $0.89 |
||
|
33
|
33
95701-060-950-8 BoltFLANGE, 6X95 |
95701-060-950-8 |
from US $0.93 |
||
|
34
|
34
95701-061-100-8 BoltFLANGE, 6X110 |
95701-061-100-8 |
from US $1.18 |
||
|
35
|
35
95701-061-250-8 BoltFLANGE, 6X125 |
95701-061-250-8 |
US $1.48 |
||
|
36
|
36
95701-061-400-8 BoltFLANGE, 6X140 |
95701-061-400-8 |
from US $1.48 |
