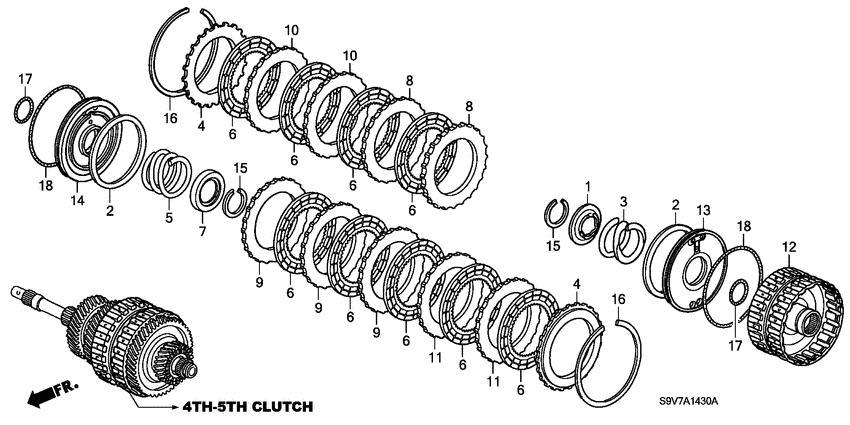

Clutch (4TH-5TH; '06-) Diagram Honda MR-V
- Year
- 2006
- Model code
- MR-V
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 5
- grade
- EX
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22533-RDK-003 SeatRETURN SPRING |
22533-RDK-003 |
US $4.20 |
||
|
2
|
2
22537-PVL-003
Spring
|
22537-PVL-003 |
— | ||
|
3
|
3
22541-RJB-003
Spring
|
22541-RJB-003 |
— | ||
|
4
|
4
22578-RJB-003 PlateCLUTCH END (8) (2.8MM) |
22578-RJB-003 |
US $15.23 |
||
|
4
|
4
22573-RJB-003 PlateCLUTCH END (3) (2.3MM) |
22573-RJB-003 |
US $15.23 |
||
|
4
|
4
22575-RJB-003 PlateCLUTCH END (5) (2.5MM) |
22575-RJB-003 |
US $15.23 |
||
|
4
|
4
22577-RJB-003 PlateCLUTCH END (7) (2.7MM) |
22577-RJB-003 |
US $15.23 |
||
|
4
|
4
22572-RJB-003 PlateCLUTCH END (2) (2.2MM) |
22572-RJB-003 |
US $15.23 |
||
|
4
|
4
22579-RJB-003 PlateCLUTCH END (9) (2.9MM) |
22579-RJB-003 |
US $15.23 |
||
|
4
|
4
22574-RJB-003 PlateCLUTCH END (4) (2.4MM) |
22574-RJB-003 |
US $15.23 |
||
|
4
|
4
22576-RJB-003 PlateCLUTCH END (6) (2.6MM) |
22576-RJB-003 |
US $15.23 |
||
|
4
|
4
22571-RJB-003 PlateCLUTCH END (1) (2.1MM) |
22571-RJB-003 |
US $15.23 |
||
|
5
|
5
22642-RJB-003
Spring
|
22642-RJB-003 |
— | ||
|
6
|
6
22645-PVL-003
Disk
|
22645-PVL-003 |
— | ||
|
7
|
7
22654-RJB-003 SeatRETURN SPRING |
22654-RJB-003 |
US $3.01 |
||
|
8
|
8
22656-RJB-013 PlateCLUTCH (1.8MM) |
22656-RJB-013 |
from US $11.06 |
||
|
9
|
9
22657-RJB-013 PlateCLUTCH (1.6MM) |
22657-RJB-013 |
from US $8.26 |
||
|
10
|
10
22658-PVL-003
Plate
|
22658-PVL-003 |
— | ||
|
11
|
11
22659-PVL-003 PlateCLUTCH WAVE (1.6MM) |
22659-PVL-003 |
US $8.26 |
||
|
12
|
12
22661-RJB-023 Guide compCLUTCH (4-5) |
22661-RJB-023 |
US $317.44 |
||
|
13
|
13
22680-RJB-013 Piston compCLUTCH |
22680-RJB-013 |
US $71.04 |
||
|
14
|
14
22690-RJF-003 Piston compCLUTCH |
22690-RJF-003 |
US $62.98 |
||
|
15
|
15
90603-P0Z-000 CirclipEXTERNAL, 44MM |
90603-P0Z-000 |
US $2.59 |
||
|
16
|
16
90605-P0Z-000 RingSNAP, 141MM |
90605-P0Z-000 |
US $4.20 |
||
|
17
|
17
91302-P0Z-003 O-ring44.1X2.2(NOK) |
91302-P0Z-003 |
from US $2.31 |
||
|
18
|
18
91303-PY4-004 O-ring119.1X2.3 (NOK) |
91303-PY4-004 |
US $3.22 |
