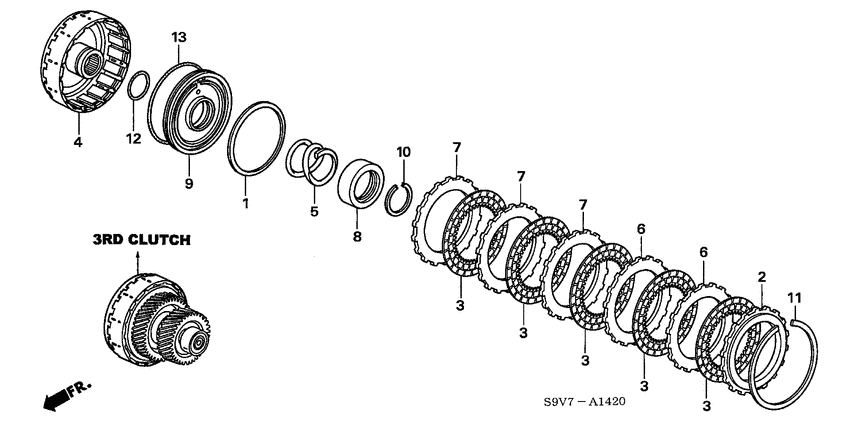

Clutch (3RD; '06-) Diagram Honda MR-V
- Year
- 2006
- Model code
- MR-V
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 5
- grade
- EX
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22539-PVL-003
Spring
|
22539-PVL-003 |
— | ||
|
2
|
2
22599-RDK-A01 PlateCLUTCH END (9) (2.9MM) |
22599-RDK-A01 |
US $17.79 |
||
|
2
|
2
22594-RDK-A01 PlateCLUTCH END (4) (2.4MM) |
22594-RDK-A01 |
US $17.79 |
||
|
2
|
2
22596-RDK-A01 PlateCLUTCH END (6) (2.6MM) |
22596-RDK-A01 |
US $17.79 |
||
|
2
|
2
22591-RDK-A01 PlateCLUTCH END (1) (2.1MM) |
22591-RDK-A01 |
US $17.79 |
||
|
2
|
2
22598-RDK-A01 PlateCLUTCH END (8) (2.8MM) |
22598-RDK-A01 |
US $17.79 |
||
|
2
|
2
22593-RDK-A01 PlateCLUTCH END (3) (2.3MM) |
22593-RDK-A01 |
US $19.58 |
||
|
2
|
2
22595-RDK-A01 PlateCLUTCH END (5) (2.5MM) |
22595-RDK-A01 |
US $17.79 |
||
|
2
|
2
22597-RDK-A01 PlateCLUTCH END (7) (2.7MM) |
22597-RDK-A01 |
US $17.79 |
||
|
2
|
2
22592-RDK-A01 PlateCLUTCH END (2) (2.2MM) |
22592-RDK-A01 |
US $17.79 |
||
|
3
|
3
22644-RJB-003 DiskCLUTCH |
22644-RJB-003 |
US $23.04 |
||
|
4
|
4
22651-PVL-003 Guide compTHIRD CLUTCH |
22651-PVL-003 |
US $272.64 |
||
|
5
|
5
22652-P7W-003
Spring
|
22652-P7W-003 |
— | ||
|
6
|
6
22653-PVL-003
Plate
|
22653-PVL-003 |
— | ||
|
7
|
7
22653-RDK-003 PlateCLUTCH (2.0MM) |
22653-RDK-003 |
US $11.06 |
||
|
8
|
8
22654-P7W-003 SeatRETURN SPRING |
22654-P7W-003 |
US $3.01 |
||
|
9
|
9
22670-PVL-A01
Piston comp
|
22670-PVL-A01 |
— | ||
|
10
|
10
90603-P24-A11
Circlip
|
90603-P24-A11 |
— | ||
| replacement | |||||
|
10
|
10
90603-PL4-000 CirclipEXTERNAL, 42MM |
90603-PL4-000 |
from US $3.03 |
||
|
10
|
10
90603-PL4-000 CirclipEXTERNAL, 42MM |
90603-PL4-000 |
from US $3.03 |
||
|
11
|
11
90605-PY4-000 RingSNAP, 137MM |
90605-PY4-000 |
US $3.22 |
||
|
12
|
12
91302-PL4-003 O-ring41.8X2.2 (NOK) |
91302-PL4-003 |
from US $2.89 |
||
|
13
|
13
91303-P7T-003 O-ring116.7X2.2 (F.C.C) |
91303-P7T-003 |
US $4.20 |
||
