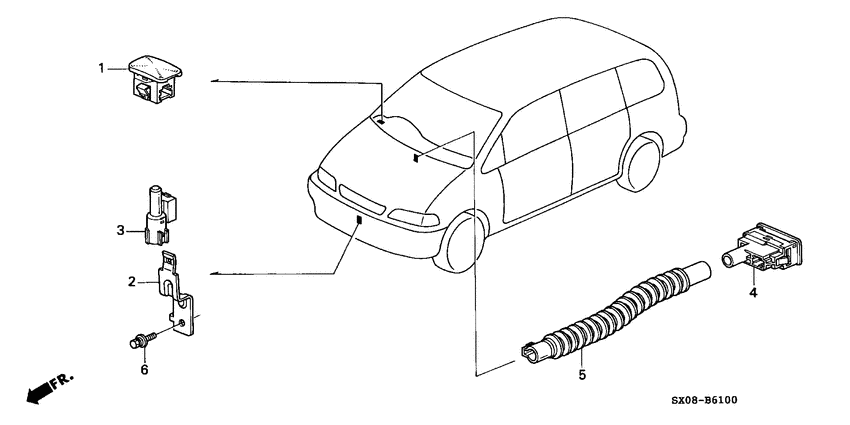

Air conditioner (SENSOR) Diagram Honda ODYSSEY
- Year
- 1998
- Model code
- ODYSSEY
- Sales region
- General
- Engine
- F23A
- transmission
- 4AT
- Number of doors
- 5
- grade
- EX
- area code
- KU
- right-hand drive
- +
- bench seat(2nd)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
80510-SR3-941
Sensor
|
80510-SR3-941 |
— | ||
|
2
|
2
80521-SV4-940 BracketAMBIENT SENSOR |
80521-SV4-940 |
US $5.60 |
||
|
3
|
3
80525-SS0-942 SensorAMBIENT |
80525-SS0-942 |
US $28.03 |
||
|
4
|
4
80530-SX0-941ZE
Sensor assy
|
80530-SX0-941ZE |
— | ||
|
4
|
4
80530-SX0-941ZC
Sensor assy
|
80530-SX0-941ZC |
— | ||
|
5
|
5
80533-SX0-941
Hose
|
80533-SX0-941 |
— | ||
|
6
|
6
93403-060-160-4 Bolt-washer6X16 |
93403-060-160-4 |
US $0.59 |
