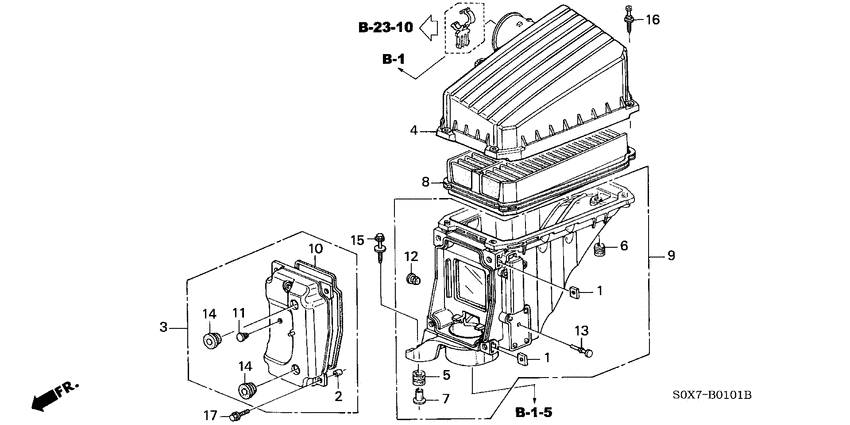

Air cleaner (-'01) Diagram Honda ODYSSEY
- Year
- 2000
- Model code
- ODYSSEY
- Sales region
- General
- Engine
- J35A
- transmission
- 4AT
- Number of doors
- 5
- grade
- EXI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17124-PZ3-300 NutBRACKET |
17124-PZ3-300 |
US $2.31 |
||
|
2
|
2
17125-PZ3-000
Collar
|
17125-PZ3-000 |
— | ||
|
3
|
3
17207-P8F-J00
Cover set b
|
17207-P8F-J00 |
— | ||
|
4
|
4
17211-P8F-J00 Cover comp.AIR CLEANER |
17211-P8F-J00 |
US $96.64 |
||
|
5
|
5
17212-P2J-J00 Rubber, AIR CLEANER MOUNTING |
17212-P2J-J00 |
US $3.51 |
||
|
6
|
6
17213-PV0-000 RubberAIR CLEANER CASE MOUNTING |
17213-PV0-000 |
US $3.42 |
||
|
7
|
7
17216-PN3-000 CollarAIR CLEANER MOUNTING |
17216-PN3-000 |
from US $3.29 |
||
|
8
|
8
17220-P8F-Y00
Element assy.
|
17220-P8F-Y00 |
— | ||
|
9
|
9
17244-P8F-J00 Case setAIR CLEANER |
17244-P8F-J00 |
US $76.16 |
||
|
10
|
10
17268-P8F-A00 PackingAIR CLEANER COVER B |
17268-P8F-A00 |
US $5.32 |
||
|
11
|
11
17269-P8F-A00
Stopper
|
17269-P8F-A00 |
— | ||
|
12
|
12
17291-P8F-J00
Seal rubber a
|
17291-P8F-J00 |
— | ||
|
13
|
13
17292-P8F-J00
Seal rubber b
|
17292-P8F-J00 |
— | ||
|
14
|
14
17294-P8F-J00
Seal rubber
|
17294-P8F-J00 |
— | ||
|
15
|
15
90001-P0A-000 Bolt-washerSPECIAL, 6X35 |
90001-P0A-000 |
from US $3.64 |
||
|
16
|
16
90091-P36-000 Bolt-washer5X28 |
90091-P36-000 |
from US $2.44 |
||
|
17
|
17
93401-060-160-8 Bolt-washer6X16 |
93401-060-160-8 |
from US $0.58 |
